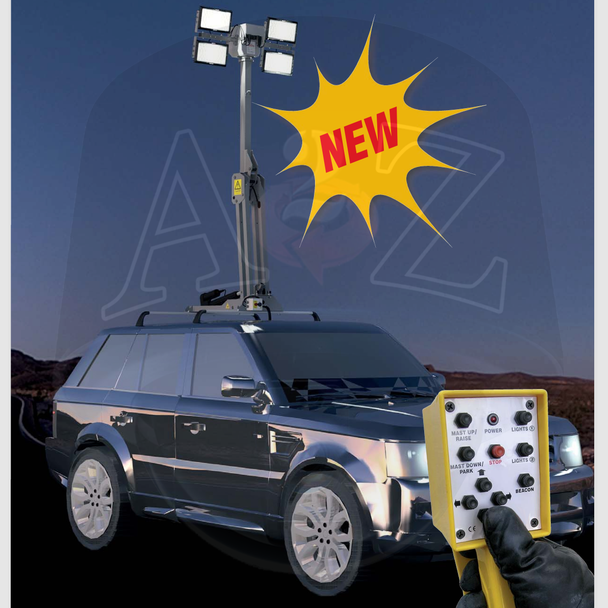

A2Z PTL-FRMM Pan/Tilt Lighting Folding Roof-mount Mechanical Mast

A2Z PTL-FRMM series is a Pan/Tilt Lighting Folding Roof mount Mechanical Mast system offering high-end performance, rivaling and even surpassing most roof mount mast solutions. Following the concept of low-profile collapsing style roof mount telescopic mast yet with an innovative, unique folding and motorized mechanical design, the PTL-FRMM possess advantages not found in your common roof mount tilting pneumatic telescopic mast. The A2Z PTL-FRMM is purposefully built to accommodate installations on cars, trucks, vans, buses, enclosed trailers and more with a compact footprint that is easily installed on vehicle roofs or other horizontal surfaces. Fitted with a high-grade modular Pan/Tilt mechanism the solution offers numerous combinations from a variety of lighting fixtures yielding High Powered area illumination at multiple levels including Spot and/or Flood Light requirements. The style of system is highly popular on specialized vehicles such as those for emergency response like firetrucks and otherwise. Its rooftop installation alleviates challenges of internal or external vertical mast installs which might obstruct important functional characteristics of any vehicle such as access to doors or equipment storage compartments.

The PTL-RFMM series Main Features:

• Two standard models providing approx. 7.5ft or 9.8ft lift heights
• Numerous Lighting Fixture Configurations - Including LED as well as Halogen Options
• Achieve Tens of Thousands of Lumens to Hundreds of Thousands of Lumens for super bright lighting
• Most Popular for Powerful Visible Scene / Area Lighting on First Response Vehicles with many add-on options of
• Emergency Strobes, Signal Lights or even added IR (Infrared) Lighting and More.
• Hardwired Remote Control w/options & System PWR/Control Interface Box Included
• Diverse range of Potential Functions - Features Simple Auto-Run Mast Operation
• Full remote positioning of HD Pan/Tilt unit 360° Pan, -/+ 180° Tilt (optional independent L/R dual tilt units)
• Wide selection of Accessory & Customized options for the perfect package
• Customized Video (i.e. Cameras, PTZ Cameras), Audio - Public Address, Wireless Communications Add-ons and Plenty More Possible
• Systems with 12V or 24V DC power input as well as 120V or 240V AC power options available
• Produced with top grade materials, primary frame high-grade aluminum anodized
• Innovative Motorized Electric Design for far fewer failure points & increased reliability
• Light Weight with full systems around 100lbs for highly adaptable space saving roof & horizontal surface installs
• Weatherproof for Harsh Environments, Mobile-Ready with high resistance to Extreme Temperatures
• Superior Performance and Longevity in high particle environments like sand, dust, etc.
• Flexible builds with 12V or 24V DC power input as well as 120V or 240V AC powered units

The A2Z PTL-FRMM Pan/Tilt Lighting Folding Roof mount Mechanical Mast System's innovative design delivers premium grade performance with clear advantages over typical pneumatic type mast systems of similar design. Excluding numerous major parts like a compressor, hydraulic lift and telescopic pneumatic type mast with their limited life-span air seals, the PTL-FRMM introduces a new standard for high reliability and longevity. Its intelligent folding design provides full lift motion operation that is powered by an industrial grade motorized actuator. This simplified methodology boosts the units reliable and consistent function beyond that of typical pneumatic kinds including through extreme temperatures and harsh conditions. In fact, not only is it less susceptible to challenges like ice or snow, the unit provides superior resistance to high particle environments such as those with high amounts of sand or dust, factors which are known to reduce the life expectancy of the seals used in the common pneumatic types.

Fully integrated the A2Z PTL-FRMM Pan/Tilt Lighting Folding Roof mount Mechanical Mast is produced with a high-quality anodized aluminum frame, features strict weatherproof build and yet is lightweight compared with others ensuring an easier install. The complete system includes the A2Z PTL-FRMM unit itself, customized with a wide variety of optional light fixture combinations including dual, quad and greater counts on a heavy-duty Pan/Tilt mechanism along with wired remote control and power/control wire interface box. Special customization options can further include add-on support for even more auxiliary equipment from strobe lights, surveillance cameras to wireless antennas and more promising vast potential for the next generation in tactical vehicle equipment solutions. The PTL-FRMM is produced in two standard sizes of approximately 7.5ft (PTL-FRMM-23) and 9.8ft (PTL-FRMM-3) lift which when added to your vehicle's roof height achieves the perfect elevation for countless applications. Furthermore, it's compact size and mounting frame measures only approximately 4.1ft or 5.5ft length (including pan/tilt head when stowed, excluding some light combos) and only about 1.5ft width on the widest part of its frame (excluding light fixtures) for a minimal, space saving footprint.

Last Updated April 7, 2025
