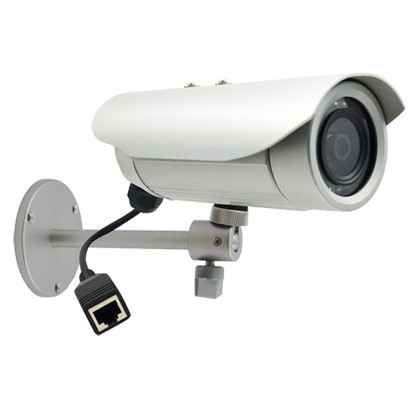

ACTI D32 3MP IP HD Megapixel IR Bullet Security Camera

ACTI D32 HD Megapixel Security Camera is an outdoor weatherproof bullet with day / night and IR with mechanical IR cut filter. The built-in IR gives the camera a range of 30 feet in total darkness (0 Lux). The D32 is a fixed iris bullet camera with one large 850nm IR LED for superior night time performance. This bullet camera has a 1/3” Progressive Scan CMOS with a built-in 4.2mm lens with a F1.8 Megapixel fixed lens for a very clear image. The Acti D32 has dual codecs, H.264 high profile and MJPEG formats capable of simultaneous dual streams with two different configurations at a constant or variable bit rate of 28 Kbps to 6 Mbps speeds per stream. The bullet has a maximum frame rate of 15 at 2048 x 1536 resolution and 30 frames per second at 1920 x 1080, 1280 x 720 and 640 x 480 resolutions. The camera is powered by POE 2 class power.

ACTI D32 Main Features:

• Progressive Scan CMOS
• Day and night function with mechanical IR cut filter
• Minimum illumination 0 lux with IR LED on
• Built-in f4.2 mm / F1.8 Megapixel fixed lens
• 15 fps at 2048 x 1536 resolution
• Selectable H.264 HP, MJPEG compressions with dual
• streaming
• Video motion detection
• Weatherproof IP66 rated casing
• Powered by PoE Class 2

ACTI D31 Specifications:

• Device
• Device Type Bullet Camera
• Image Sensor Progressive Scan CMOS
• Sensor size 1/3.2"
• Day / Night Yes
• Minimum Illumination Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)
• Color to B/W switch ISP based switch; Configurable
• Mechanical IR Cut Filter Yes
• IR Sensitivity Range 700 - 1100 nm
• IR LED IR LED x 1 (850 nm)
• IR Working Distance 10 m (0 lux, 30 IRE, Max Exposure Gain)
• Electronic Shutter 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
• Lens
• Focal Length / Aperture Fixed focal, f4.2 mm / F1.8
• Iris Fixed iris
• Focus Fixed Focus
• Lens Mount Board Mount
• Horizontal Viewing Angle 63.27°
• Video
• Compression H.264 HP, MJPEG
• Maximum Frame Rate
• vs. Resolution 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480
• Multi-Streaming Simultaneous dual streams based on two configurations
• Bit Rate 28 Kbps - 6 Mbps (per stream)
• Bit Rate Mode Constant, Variable
• Image Enhancement White balance: automatic, hold, and manual; Brightness;
• Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless
• Privacy Mask 4 configurable regions
• Text Overlay User defined text on video
• Image Orientation Image flip and mirror
• Network
• Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS,
• DDNS, NTP, ICMP, ARP,IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
• Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
• Security IP address filtering; HTTPS encryption; Password protected user levels;
• Anonymous login; IEEE 802.1X network access control
• Alarm
• Alarm Trigger Video motion detection (3 regions)
• Alarm Response Notify control center; Change camera settings; Command other devices;
• E-mail notification with snapshots; Upload video, snapshot to FTP server
• General
• Power Source /
• Consumption PoE Class 2 (IEEE802.3af) / 4.88 W (IR on)
• Weight 515 g (1.14 lb)

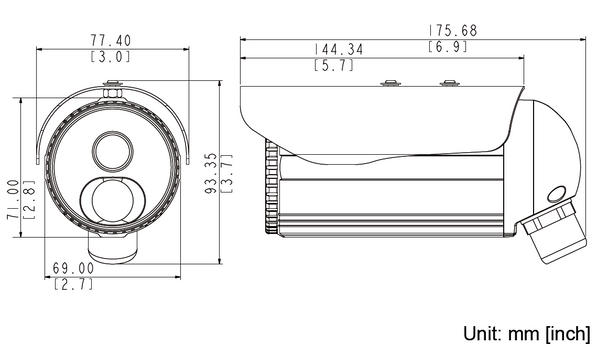

• Dimensions 77 mm x 176 mm (3.0" x 6.9'')
• Bundled Accessories Bracket
• Environmental Casing Weatherproof (IP66 rated)
• Mount Type Wall, Ceiling, Corner, Pole
• Operating Temperature -20C ~ 50C (-4F ~ 122F)
• Operating Humidity 10% ~ 85% RH
• Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP66
• Integration
• Unified Solution Fully compatible with ACTi software
• ISV Integration Software Development Kit (SDK) available; ONVIF compliant
• Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality);
• Other browsers with VLC installed (partial functionality)
