Bosch Autodome Junior VJR-821 1080P HD PTZ Dome Security Camera 10x

NOTICE: This product has been discontinued or is EOL - Please contact our Experts or search the category link below or other related categories.

https://www.a2zsecuritycameras.com/megapixel-hd-ip-ptz-cameras.html

Moved to EOL: February 24, 2020

Bosch Autodome Junior VJR-821 series HD PTZ Security Camera is a powerful indoor ptz dome camera deliver superb flexibility and true high definition IP surveillance. The Bosch AutoDome Junior HD PTZ Camera is equipped with a full 1080P HD sensor and utilizes the high quality video codec MJPEG and H.264 for razor sharp video. The Compact and rugged dome camera is built with a 10x optical zoom lens and provides precision pan/tilt/zoom operation packed with professional functions. The unit also is a True Day/Night camera delivering excellent low light imaging for uncompromising HD video security. The Bosch AutoDome Junior VJR-821 HD PTZ Cameras are much like the larger Autodome HD PTZ cameras yet in a smaller tamper resistant housing that is also available in an outdoor model. The Bosch Autodome Junior is a best in class megapixel HD ptz camera with ONVIF compliance for universal system integration.
The AutoDome Junior HD further includes advanced attributes like Bosch IVA (Intelligent Video Analytics) which enable efficient edge detection methods and operations like automatic PTZ tracking or line crossing.

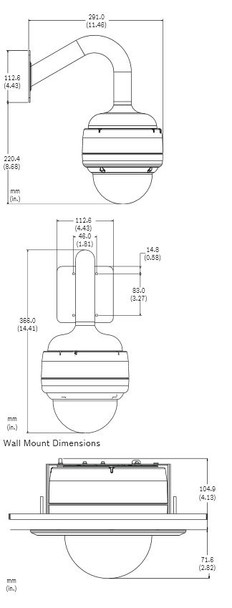

The compact size of the unit along with a wide range of mounting options including surface, wall, recessed, and pipe mount enable the HD PTZ to adapt to nearly any security camera system requirement. Bosch AutoDome Junior is also available in indoor and outdoor models. The Bosch Autodome Junior is a uniquely sized unit packed highlights including High PoE (PoE+, IEEE 802.3at, class 4) or 24VAC power input. The Junior HD PTZ Autodome from Bosch clearly defines a new standard in Video Surveillance and is the perfect solution for professional IP camera systems.

 Bosch Autodome Junior VJR-821 Main Features:


• 1080P HD Real-time Video Surveillance
• H.264 and MJPEG Compression with multi-streaming
• 10x Optical Zoom  (Plus 16x Digital Zoom)
• True Day/Night Operation with WDR (Wide Dynamic Range)
• Sens Up ultra-low light sensitivity
• Bosch IVA (Intelligent Video Analysis) Video Analytics
• High Speed Precision Pan/Tilt/Zoom Operation.
• Support Audio, Alarm and relay connections.
• All Models Vandal-Resistant, High Impact Rated and Tamper Resistant.
• Indoor IP54 and IP66 weatherproof outdoor models available.
• Numerous Mounting Accessories available.
• 24VAC and PoE+ (High PoE 802.3at) Power options
• ONVIF Compliant for universal system installation.

Bosch Autodome Junior VJR-821 Specifications:

10x HD Day/Night Camera
Imager: 1/2.5 inch progressive scan CMOS
Number of Pixels: 2.1 Megapixels
Aspect Ratio: 16:9
Lens: 10x optical zoom (6.3 to 63 mm) F1.8/F2.5 to close)
Focus
Automatic with manual override Iris
Automatic with manual override Field of View
Horizontal: 5.5° to 50.6°
Vertical: 3.1° to 29.3°
Automatic Gain Control: Normal, Medium, High, Fixed
Synchronization: Internal
Aperture Correction: On/Off
Digital Zoom: 16x
Sensitivity(typical)
1
30 IRE
2
50 IRE
2
Day Mode
SensUP Off
1.2 lx
2.0 lx
SensUP On (64x)
0.038 lx
0.063 lx
Night Mode
SensUP Off
0.06 lx
0.1 lx
SensUP On (64x)
0.0018 lx
0.0031 lx
Electronic Shutter Speed (AES)
1x to 64x; 1/50 (1/60) to 1/10000
Signal to Noise Ratio
> 50 dB (AGC off)
Wide Dynamic Range(WDR)
50 dB
Backlight Compensation
On/Off
White Balance
ATW, Indoor, Outdoor, AWB Hold, Extended ATW, Manual
(adjustable R and B signals in Manual
mode)
Day/Night
Monochrome, Color, Auto
1. F1.8, 1/30 (1/25) shutter, maximum AGC.
2. Tinted bubble adds 0.8 f-stop loss.
Software Control
Camera Setup/Control
Via Internet Explorer Web browser version 9.0
or later, Bosch Configuration Manager, or BVMS
Software Update
Firmware upload
Network Standards
H.264 (ISO/IEC 14496-10), M-JPEG, JPEG Streaming
Individually configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth;
• 1080p30
One (1) H.264 1080p30 stream plus one (1)
M-JPEG and one (1) I-frame stream
• 720p60
One (1) H.264 720p60 stream plus one (1)
M-JPEG and one (1) I-frame stream
• 720p30
Two (2) independently configurable H.264 streams:
One (1) H.264 720p30 stream,
One (1) H.264 BP+ or H.264 MP SD stream,
plus one (1) M-JPEG and one (1) I-frame stream
GOP Structure
IP, IBP, IBBP
Data Rate
9.6 kbps to 6 Mbps
Overall IP Delay
240 ms
Audio
G.711 (8 bits @ 8KHz)
L16 (16 bits @ 16 kHz PCM)
Resolutions (H x V) and Frame Rates
Stream 1
• Full HD/1080p
1920 x 1080, 30 ips
• HD/720p
1280 x 720, 60 ips
• HD/720p
1280 x 720, 30 ips
Stream 2
3
• SD/480p (WVGA)
4
854 x 480, 30 ips
• SD/240p (WQVGA)
4
432 x 240, 30 ips
3. Stream 1 must be set to 720p at 30 ips.
4. Images displayed in 16:9 aspect ratio.
Network
Protocols
RTP, Telnet, UDP, TCP, IP, http, HTTPS, FTP, DHCP, IGMP V2/V3, ICMP, ARP, SMTP, SNTP, SNMP, RTSP, 802.1x, iSCSI, DynDNS, UpnP
Ethernet
10-Base T/100 Base-TX, auto-sensing,
half/full duplex, RJ45
PoE+
IEEE 802.3at, class 4
Storage
Built-in iSCSI support
Connectivity
ONVIF Profile S
Video Motion Analysis
Intelligent Video Analysis (IVA)
Mechanical/Electrical
Pan Range
0–360° continuous
Tilt Angle
0–93.6°
Variable Speed
Pan: 1°/s to 120°/s
Tilt: 1°/s to 100°/s
Pre-position Speed
Pan:360°/s
Tilt: 100°/s
Preset Accuracy
± 0.1° typical
Rated Voltage
• Camera, All
Models
24 VAC ± 10%, 50/60 Hz or
Power over Ethernet+ (IEEE 802.3at
Class 4)
• Heater, Outdoor
Models
24 VAC ± 10%, 50/60 Hz
Power Draw: (typ.)
• Indoor Models
17 W typical
• Outdoor Models
Camera only: 17 W typical
Heater only: 25 W typical
Total: 42 W typical
Environmental
Operating Temperature
• Indoor Models
–10°C to 40°C (14°F to 104°F)
• Outdoor Models
–30°C to 50°C (–22°F to 122°F)
Storage Temperature
–40°C to 60°C (–40°F to 140°F)
Operating Humidity
0% to 90% relative, non-condensing
Environmental Rating
• Indoor Models
IP54 (excluding VJR-A3-IC mounting
option)
• Outdoor Models
IP65
Miscellaneous
Sectors/Titling
Eight (8) independent sectors with 20-character titles/sector
Privacy Masking
24 individually configurable privacy masks, maximum of eight (8) masks displayed in one scene
Presets
99, each with 20-character titles
Guard Tours
Two (2) types of tours:
• Recorded tours: two (2),separately defined user-recorded tour paths
• Preposition tour: one (1), consisting of up to 99 presets, consecutively
Supported Languages
English, German, Dutch, French, Italian, Spanish, Portuguese, Polish, Russian, Chinese, and Japanese
User Connections
Power
• Camera, All Models
RJ-45 100 Base-TX Ethernet Power over Ethernet IEEE 802.3at Class 4, or
24 VAC, 50/60 Hz
• Heater, Outdoor Models
24 VAC, 50/60 Hz
Video and Control
RJ-45 100 Base-TX Ethernet
Alarm Input (2)
NC/NO
Alarm Output
Open collector NPN
32 VDC @ 150 mA max
Audio Input Line Level
(one way audio)
• Input Voltage
5.5 Vp-p max
• Impedance
9 Kohm typical
Construction
Size (Diameter x Height)
153.0 x 133.0 mm
(6.02 x 4.61 in.)
Bubble Size
128.0 mm (5.04 in.)
Weight
1.92 kg (4.24 lb.)
Material
• Housing
Cast aluminum
• Bubble
Acrylic
Color
• Indoor Models
White or Charcoal
• Outdoor Models
White



Ordering information
VJR-821-ICCV Indoor 10x AutoDome Junior HD with IVA, Charcoal, Clear Bubble, 60 Hz
Indoor AutoDome Junior HD with IVA, charcoal, 10x day/night, 60 Hz camera with clear bubble
Order number
VJR-821-ICCV

VJR-811-ICCV Indoor 10x AutoDome Junior HD with IVA, Charcoal, Clear Bubble, 50 Hz
Indoor AutoDome Junior HD with IVA, charcoal, 10x day/night, 50 Hz camera with clear bubble
Order number
VJR-811-ICCV

VJR-821-IWCV Indoor 10x AutoDome Junior HD with IVA, White, Clear Bubble, 60 Hz
Indoor AutoDome Junior HD with IVA, white, 10x day/night, 60 Hz camera with clear bubble
Order number
VJR-821-IWCV

VJR-811-IWCV Indoor 10x AutoDome Junior HD with IVA, White, Clear Bubble, 50 Hz
Indoor AutoDome Junior HD with IVA, white, 10x day/night, 50 Hz camera with clear bubble
Order number
VJR-811-IWCV

VJR-821-ICTV Indoor 10x AutoDome Junior HD with IVA, Charcoal, Tinted Bubble, 60 Hz
Indoor AutoDome Junior HD with IVA, charcoal, 10x day/night, 60 Hz camera with tinted bubble
Order number
VJR-821-ICTV

VJR-811-ICTV Indoor 10x AutoDome Junior HD with IVA, Charcoal, Tinted Bubble, 50 Hz
Indoor AutoDome Junior HD with IVA, charcoal, 10x day/night, 50 Hz camera with tinted bubble
Order number
VJR-811-ICTV

VJR-821-IWTV Indoor 10x AutoDome Junior HD with IVA, White, Tinted Bubble, 60 Hz
Indoor AutoDome Junior HD with IVA, white, 10x day/night, 60 Hz camera with tinted bubble
Order number
VJR-821-IWTV

VJR-811-IWTV Indoor 10x AutoDome Junior HD with IVA, White, Tinted Bubble, 50 Hz
Indoor AutoDome Junior HD with IVA, white, 10x day/night, 50 Hz camera with tinted bubble
Order number
VJR-811-IWTV

VJR-831-EWCV Outdoor 10x AutoDome Junior HD with IVA, White, Clear Bubble, 50/60 Hz
Outdoor AutoDome Junior HD with IVA, white, 10x day/night, 50/60 Hz camera with clear bubble
Order number
VJR-831-EWCV

Accessories
UPA-2450-60 Power Supply, 120 V, 60 Hz
Indoor, 120 VAC, 60 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-60
UPA-2450-50 Power Supply, 220 V, 50 Hz
Indoor, 220 VAC, 50 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-50
VJR-A3-IC AutoDome Junior HD Indoor Recessed Mount
Recessed mount for indoor camera applications that
do not require IP54 or a plenum rating
Order number
VJR-A3-IC
VJR-A3-IC54 AutoDome Junior HD Plenum-rated and
Outdoor Recessed Mount
Recessed mount required for indoor camera
applications that must attain an IP54 or a plenum
rating, and required for all recessed outdoor camera
applications
Order number
VJR-A3-IC54
VJR-A3-SP In-ceiling Support Kit for AutoDome 700/800
Series and AutoDome Junior HD
Suspended ceiling support kit for AutoDome 700 and
800 Series and AutoDome Junior HD In-ceiling mounts
Order number
VJR-A3-SP
VEZ-A2-JC Surface Mount Adapter
Charcoal adapter for AutoDome Junior surface
installations
Order number
VEZ-A2-JC
VEZ-A2-JW Surface Mount Adapter
White adapter for AutoDome Junior surface installations
Order number
VEZ-A2-JW
VEZ-A2-PC AutoDome Junior Pipe Mount
Charcoal
Order number
VEZ-A2-PC
VEZ-A2-PW AutoDome Junior Pipe Mount
White
Order number
VEZ-A2-PW
VEZ-A2-WC AutoDome Junior Wall Mount
Charcoal
Order number
VEZ-A2-WC
VEZ-A2-WW AutoDome Junior Wall Mount
White
Order number
VEZ-A2-WW
VJR-SBUB2-CL AutoDome Junior HD Clear Bubble, Indoor
Order number
VJR-SBUB2-CL
VJR-SBUB2-TI AutoDome Junior HD Tinted Bubble, Indoor
Order number
VJR-SBUB2-TI
VJR-SBUB3-CL AutoDome Junior HD Clear Bubble, Outdoor
Order number
VJR-SBUB3-CL
VJR-SBUB3-TI AutoDome Junior HD Tinted Bubble, Outdoor
Order number
VJR-SBUB3-TI
VG4-A-PSU0 24 VAC Power Supply Unit
24 VAC, 100 W, white, for an AutoDome Series camera
Order number
VG4-A-PSU0
VG4-A-PSU1 120 VAC Power Supply Unit
120 VAC, 100 W, white, for an AutoDome Series
camera
Order number
VG4-A-PSU1
VG4-A-PSU2 230 VAC Power Supply Unit
230 VAC, 100 W, white, for an AutoDome Series
camera
Order number
VG4-A-PSU2
Software Options
MVS-FENC-AES BVIP AES 128 Bit Encryption
BVIP AES 128-bit encryption site license. This license
is required only once per installation. It enables
encrypted communication between BVIP devices and
management stations.
Order number
MVS-FENC-AES
