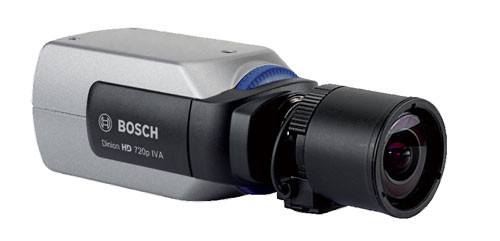

Bosch Dinion HD NBN-921-P CCD 720p IP Security Camera

Bosch Dinion HD NBN-921-P 720p IP Security Camera is an advanced CCD based High Definition IP Camera of the latest in high performance, highly intelligent IP Surveillance. The Bosch Dinion HD NBN-921-P utilizes the latest in HD CCD sensors coupled with powerful low light SensUp Dynamic technology and mechanical IR cut-filter for true day/night operation. The Camera enables advanced surveillance in real-time (30fps) including Bosch Dinion digital image technology, XF-dynamic engine and SmartBLC for vividly clear images all the time.  The device also employs superior MJPEG and H.264 video compression for high quality multi-streaming video. Added intelligence at the edge, the Camera includes Motion+ (Bosch IVA basic) with option for the complete Bosch Intelligent Video Analysis function.
Bosch Dinion HD NBN-921-P 720p IP Cameras are also outfitted with a comprehensive web interface as well as external camera controls for maximum flexibility. The Bosch Dinion HD CCD Megapixel IP Cameras also can provide superb stand-alone on-board recording with multiple recording triggers thanks to memory card slot and Bosch IVA. Other record trigger methods can be integrated through the camera's alarm sensor input or alternatively you can control external devices with the cameras relay output. Two Way Audio Support and RS-485 plus RS-422 pan/tilt/zoom control connections simply further the potential uses. The Cameras easy install features like auto back-focus, six selectable preset scene image modes and triple power input including PoE ensure maximum camera adaptability. ONVIF support further provides universal installation of the camera with other leading third party IP camera systems.

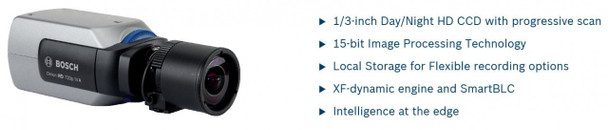

Bosch Dinion HD NBN-921-P Main Features:

• 1/3-inch Day/Night HD CCD with progressive scan
• H.264 Video Compression with Dual Streaming
• 720P HD High Definition Real-time Video
• Enhanced Bosch 15-bit Image Processing Technology
• Includes Bosch XF-dynamic engine and SmartBLC
• True Day/Night Operation w/IR Cut Filter
• ONVIF Compliant for Universal
• Two Way Audio with external device input
• Alarm input/Relay Output Support
• Local Storage for Flexible recording options
• Bosch IVA (MOTION+) Edge-Based Video Analytic Detection (Full IVA optional)
• Multiple Power Input Options: 12VDC, 24VAC or PoE (Power Over Ethernet)

Bosch NBN-921-P specifications:

Electrical
Power Supply
24 VAC ±10% 50/60 Hz
12 VDC ±10%
Power-over-Ethernet
Current Consumption
550 mA | 650 mA IVA (12 VDC)
550 mA | 650 mA IVA (24 VAC)
200 mA | 250 mA IVA (PoE 48 VDC)
Power Consumption
6.6 W | 7.8 W IVA (12 VDC)
8.2 W | 9.7 W IVA (24 VAC)
9.6 W (PoE 48 VDC)
Sensor
Type
1/3-inch CCD
Active Pixels
1280 x 960
Network Video
Video compression
H.264 (ISO/IEC 14496-10); M-JPEG,
JPEG
Streaming
Four individually configurable streams in
H.264 and M-JPEG, configurable frame
rate and bandwidth.
Two independently
configurable H.264
streams
Stream 1
:
H.264 Main Profile (MP) 720p 25/30
Stream 2
:
H.264 Baseline Profile plus (BP+)
or
H.264 MP Standard Definition (SD),
or
Copy of stream 1
Two additional streams
M-JPEG stream
and
High Definition (HD) I-frame only
stream.
Data rate
9.6 Kbps to 10 Mbps
HD Resolution (H x V)
720p: 1280 x 720
480p Resolution (H x V)
Encoding: 704 x 480
Displayed: 854 x 480
240p Resolution (H x V)
Encoding: 352 x 240
Displayed: 432 x 240
Overall IP Delay
Min. 120 ms, Max. 240 ms
GOP structure
IP, IBP, IBBP
Sensitivity
(3200 K, scene reflectivity 89%, F1.4)
Minimum illumination (30 IRE)
Color
1 lx (0.1 fc)
Color + SensUp 10x
0.1 lx
Monochrome
0.4 lx (0.04 fc)
Monochrome +
SensUp 10x
0.04 lx
IR Sensitivity
Up to 1050 nm
Day/Night
Color, Mono, Auto
Modes
6 preset programmable modes
SmartBLC
On / Off
Dynamic Range
70 dB
AGC
AGC On or Off (0 - 35 dB) selectable
White Balance
ATW (2500 to 10000K), ATW hold and
manual
Shutter
Auto (1/50 [1/60] to 1/10000)
selectable
Auto (1/50 [1/60] to 1/50000)
automatic
Fixed selectable
Sensitivity up
Adjustable from Off up to 10x
Auto Black
Automatic continuous, Off
Dynamic Noise Reduction
Auto, On/off selectable
Sharpness
Sharpness enhancement level selectable
Privacy Masking
Four independent areas, fully
programmable
Video Motion Analysis
Motion+ or IVA
Test Pattern Generator
Color bars 100%, Gray scale 11-step,
Sawtooth 2H, Checker board, Cross
hatch, UV plane
Synchronization
Internal, Line Lock selectable
Lens
Lens Mount
CS (max lens protrusion 5 mm,
0.2 inch), C-mount compatible with
supplied adapter ring
Lens Types
Manual, DC-Iris auto-detect
DC-iris drive: max. 50 mA continuous
Lens Controls
Wizard from web page
Audio
Standard
G.711, 8kHz sampling rate
L16, 16kHz sampling rate
Signal-to-noise ratio
> 50 dB
Audio Streaming
Full duplex
Input/output
Audio
1 x mono line in, 1 x mono line out
• connector
3.5 mm mono jack
• signal line in
9 kohm typical, 5.5 Vpp max
• signal line out
3.0 Vpp at 10 kOhm typical,
2.3 Vpp at 32 Ohm typical,
1.7 Vpp at 16 Ohm typical
Alarm
2 inputs
• connector
Clamp (non-isolated closing contact)
• activation
voltage
+5 VDC to +40 VDC
(+3.3 VDC with DC-coupled 22 kOhm pull-
up resistor)
Relay
1 output
• connector
Clamp
• voltage
30 VAC or +40 VDC
Maximum 0.5 A continuous, 10VA
Data port
RS-232/422/485
Software Control
Unit Configuration
Via web browser or Configuration Manager
Software update
Flash ROM, remote programmable via web
browser or Configuration Manager
Network
Protocols
RTP, RTSP, Telnet, UDP, TCP, IP, HTTP,
HTTPS, FTP, DHCP, IGMP V2/V3, ICMP,
ARP, SMTP, SNTP, SNMP, 802.1x, UPnP
Encryption
TLS 1.0, SSL, AES (optional)
Ethernet
STP, 10/100 Base-T, auto-sensing, half/
full duplex, RJ45
PoE supply
IEEE 802.3af compliant
Mechanical
Dimensions (H x W x L)
58 x 66 x122 mm (2.28 x 2.6 x 4.8 inch)
without lens
Weight
542 g (1.195 lb.) without lens
Color
RAL 9007 Metallic Titanium
Tripod Mount
Bottom (electrically isolated) and top 1/4-
inch 20 UNC
Environmental
Operating Temperature*
-20°C to +50°C (-4°F to 122°F)
Operating Temperature
(IVA)*
-20°C to +40°C (-4°F to 113°F)
Storage Temperature
-40°C to +70°C (-40°F to +158°F)
Operating Humidity
20% to 93% RH
Storage Humidity
up to 98% RH
Environmental
Test Method
EN50130-5:1999 Alarm systems Part 5
(Class II Indoor in general)
* for extended temperature range use HAC-IPCCC


Ordering information

NBN-921-P DinionHD D/N IP Camera
1/3-inch 720p HD, H.264 dual stream, SmartBLC,
Motion+, PoE
Order number
NBN-921-P

NBN-921-IP DinionHD D/N IP Camera
1/3-inch 720p HD, H.264 dual stream, SmartBLC, IVA
enabled, PoE
Order number
NBN-921-IP

EX12LED-3BD-8M Infrared Illuminator
EX12LED IR Illuminator, 850 nm, 30 degree beam
Order number
EX12LED-3BD-8M
EX12LED-3BD-8W Infrared Illuminator
EX12LED, IR Illuminator, 850 nm, 60 degree beam
Order number
EX12LED-3BD-8W
EX12LED-3BD-9M Infrared Illuminator
EX12LED IR Illuminator, 940 nm, 30 degree beam
Order number
EX12LED-3BD-9M
EX12LED-3BD-9W Infrared Illuminator
EX12LED, IR Illuminator, 940 nm, 60 degree beam
Order number
EX12LED-3BD-9W
UPA-2410-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 10 VA Out
Order number
UPA-2410-60
UPA-2430-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 30 VA Out
Order number
UPA-2430-60
UPA-2450-60 Power Supply, 120 V, 60 Hz
Indoor, 120 VAC, 60 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-60
UPA-2420-50 Power Supply
220 VAC, 50 Hz, 24 VAC, 20 VA Out
Order number
UPA-2420-50
UPA-2450-50 Power Supply, 220 V, 50 Hz
Indoor, 220 VAC, 50 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-50
HAC-IPCCC Camera Cooling Case
For use with Dinion IP cameras in combination with
HSG and UHO Series housings equipped with an
optional blower
Order number
HAC-IPCCC
MVC-FIVA4-CAM
IVA 4.xx/5.xx VCA software license for IP camera/dome
(e-license)
Order number
MVC-FIVA4-CAM
MVS-FENC-AES BVIP AES 128 Bit Encryption
BVIP AES 128-bit encryption site license. This license is required only once per installation. It enables
encrypted communication between BVIP devices and management stations.
Order number
MVS-FENC-AES
Accessories
Varifocal Megapixel Lens
3 Megapixel, 3.8-13 mm varifocal, f1.4, 1/2-inch lens,
DC iris
Order number
VLG-3V3813-MP3
S1374 Adapter
converts C mount lens to CS mount camera
Order number
S1374
