Bosch DVR-670-08A 8ch DVR Digital Video Recorder D1

Bosch DVR-670-08A Digital Video Recorder (DVR) is a high performance; Real-time 16 channel Linux embedded DVR Systems for superior CCTV Video Surveillance. The unit includes superior 240fps monitoring and recording in Full 4CIF High Resolution while also benefitting from advanced H.264 compression. The Bosch DVR-670-08A 8ch DVR delivers superb local and remote viewing attributes with features like support for HDMI HD monitors directly from the DVR.  Local monitoring can be controlled via IntuiKey Digital Keyboard, Mouse, Remote Control or the fully functional front panel. The Bosch 670 series Digital Video Recorder is available with several storage options, with or without DVD-RW and supports other external storage options like eSATA. The unit is comprehensive in design yet extremely user friendly even automatically starts recording on setup. The units are literally setup and go with just a few simple entries like Date and Time.
The Bosch DVR-670-08A 8ch DVR includes all the modern qualities of professional Digital Video Recorder is built to support all types of security camera systems and surveillance applications.  The Bosch Control Center Software allows operators to simultaneously control multiple Bosch DVR systems and added flexibility is ensured with features like mobile viewing on IPhone, IPad or iPod.  The Bosch DVR-670-08A Digital Video Recorder also supports a full range of integration possibilities. Looping BNC outputs, RS-232 interface, Audio inputs/outputs, RS-485 PTZ Control and USB connections are just the beginning. The Bosch DVR System is an ideal solution for real-time full 4CIF high resolution recording in pro security camera systems.

Bosch DVR-670-08A Main Features:

• Linux 8ch DVR System
• Real-time 240fps recording
• 8 looped-through, auto-terminating camera inputs
• 4 audio inputs and 2 audio outputs

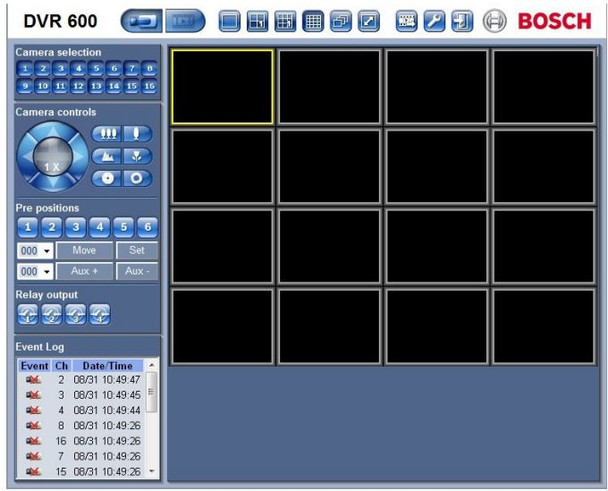

• Supports Bosch  Control Center, Web Browser and Mobile Viewing
• Simultaneous live viewing, recording, playback, and remote streaming
• 10/100Base-T Ethernet port for local or wide area network connection
• RS-485/ RS-232 serial port for serial communication to control movable cameras
• IntuiKey Series keyboard support for Bosch dome control including loop-through to a maximum of 16 other 600 Series or 700 Series recorders
• VGA monitor outputs for main and spot monitors
• 16:9, 16:10 and 4:3 aspect ratio displays for main and spot monitor
• Full-screen, quad and multi-screen display capabilities in live and playback modes for main monitor
• Spot monitor output with sequencing and full-screen, quad and multi-screen views
• Alarm picture pop-up on full-screen or sequence by multiple alarms simultaneously
• E-mail notification with 10-second video clip on alarm
• Playback one or more channels while showing live pictures of the other channels
• Motion detection
• Multiple search modes including smart search (search for motion within recorded images)
• 8 switching (alarm) inputs and 4 alarm outputs
• Video loss detection
• Audible alarm
• Bosch DVR viewer App for live and PTZ control on iPhone/iPad/iPod touch devices
• Live display support on mobile devices via RTSP
• Pan/tilt/zoom camera control via RS485
• Supports Bosch and Pelco protocols
• Local archiving via USB
• Local archiving via built-in DVD burner (specific models)

Bosch DVR-670-08A Specifications:

Electrical
Rated Voltage and Power
External power adapter AC input 110–240 VAC; 50/60 Hz; 1.8 A
External power adapter DC output 12 VDC; 5 A
DVR Power input 12 VDC; 3.5 A; 145 BTU/h
Video Inputs
Inputs Composite video 1 Vpp, 75 ohm, automatic termination; PAL / NTSC auto-detect
AGC Automatic gain adjustment for each video input
Video outputs
Outputs Monitor A: VGA (Default) or HDMI
Monitor B: HDMI (Default) or CVBS
(Default monitor output types are user selectable)
Live Resolution
(Mon.A & B)
800x600 (4:3), 1024x768 (4:3). 1280x1024 (5:4), 1920x1080 (16:9 1080P HD)
Digital Zoom 2 times
Streaming video H.264 compression
Audio
Inputs Mono RCA, 1.0 Vpp
Output Mono RCA, 1.0 Vpp
Compression ADPCM
Sample rate 16 kHz per channel
Bit rate 8-bit
Alarm Handling
Inputs: 8 inputs configurable NO/NC, max. Input voltage 15 VDC
Outputs: 4 Relay outputs, configurable NO/NC, max. Rated 30 VAC, 40 VDC 0.5 A continuous or 10 VA
Control
RS485 Output signals according to RS485, max. signal voltage -8 to +12 V
RS232 Output signals according to EIA/TIA-232-F, max input voltage ±25 V
Supported Protocols Pelco P and D (over RS-485)
Bosch OSRD (over RS-485 or RS-232 with the optional LTC 8786 Series Biphase Converter)
Connectors
Video Inputs 8 looping BNC, auto termination
Monitor
1 VGA D-SUB
1 HDMI
1 CVBS
Alarm connectors Screw terminal inputs, cable diameter
AWG26-16 (0.13-1.5 mm)
Audio Inputs 4 RCA (CINCH)
Audio Output 2 RCA (CINCH)
Ethernet RJ45, 10/100 BaseT according to IEEE802.3
RS485 Screw terminal output, cable diameter AWG28-16 (0.08-1.5 mm)
RS232 DB9 male, 9-pin D-connector
USB 2.0 One front and one rear USB connector for
mouse or USB memory device
External storage eSATA connector
Maximum Storage Capacity
Internal Supports up to 2 SATA hard drives, max.
2TB each(Third party hard disks are supported from firmware version 2.0.6 onwards. A list of tested disks is available in the instruction manual.)*
External 4 JBOD hard drives, max. 2TB each via eSATA connection
*Bosch cannot be held liable for any loss or damages or system malfunction resulting from the use of non-Bosch drives in DVR recorders.
Video recording
Record Rate (IPS)
NTSC Max. 30 IPS per channel, configurable: 30, 15, 7.5, 5, 3, 1
PAL Max. 25 IPS per channel, configurable: 25, 12.5, 6.25, 5, 2.5, 1
Recording Quality Best, High, Normal, Low, Lowest
Maximum recording rates per channel
Local 8 channels
4CIF PAL: 25 IPS, NTSC: 30 IPS
Remote (network) 8 channels
CIF PAL: 25 IPS, NTSC: 30 IPS
Display Modes
Monitor A Full, quad, multi-screen (live and playback),
full sequence, alarm call-up (live)
Monitor B Full, quad, multi-screen, full sequence,
alarm call-up (live)
Recording Modes
Normal partition Continuous recording (with or without overwriting)
Event partition Input and motion recording (with or without overwriting)
Mechanical
Dimensions (WxDxH) 355 x 362 x 78 mm (13.9 x 14.2 x 3.1 in)
excluding cabling
Weight 4.3 kg (9.46 lbs.) approx.
Environmental
Temperature
- Operating +0°C to +40°C (+32°F to +104°F)
- Storage -40°C to +70°C (-40°F to +158°F)
Humidity
- Operating <93% non-condensing
- Storage <95% non-condensing

ORDERING INFO:

DVR-670 8ch. base unit
670 Series DVR, 8-channel, base unit
Commercial Type No: DVR-670-08A000

 DVR-670 8ch. base unit + DVD
670 Series DVR, 8-channel, base unit with DVD
Commercial Type No: DVR-670-08A001

 DVR-670 8ch. 500 GB
Commercial Type No: DVR-670-08A050

 DVR-670 8ch. 500 GB + DVD
Commercial Type No: DVR-670-08A051

 DVR-670 8ch. 1 TB
Commercial Type No: DVR-670-08A100

 DVR-670 8ch. 1 TB + DVD
Commercial Type No: DVR-670-08A101

 DVR-670 8ch. 2 TB
Commercial Type No: DVR-670-08A200

 DVR-670 8ch. 2 TB + DVD
Commercial Type No: DVR-670-08A201
