Bosch FlexiDome NDN-932V03-IP HDR Rugged HD IP Dome Camera IVA

Bosch FlexiDome NDN-932V03-IP Ruggedized HD Dome Security Camera is an innovative 1080P High Definition Dome style network camera for high performance IP Surveillance. The Bosch FlexiDome HD IP Dome Cameras NDN-932V03-IP are equipped with intelligent content-based adaptive video processing for a new level in optimal imaging. The Cameras intelligent analysis of the scene to improve specific to all around video clarity and HDR (High Dynamic Range) feature for adverse lighting ensures absolute best image quality in the most challenging conditions. Content-Based Imaging Technology (C-BIT) uses (IVA) Intelligent Video Analytic information to identify certain image areas for enhanced processing delivering better, clearer video surveillance in difficult scenarios. The Bosch FlexiDome Vandal Dome HDR unit is available with three lens options making it fully adaptable for the widest range of requirements. The NDN-932V02-IP is a super wide angle lens with a 1.8-3mm varifocal range, the mid-range model NDN-932V03-IP features a 3.8-13mm lens and the telephoto version NDN-932V09-IP offers 9-40mm lens needs. The camera is also a True Day/Night Camera for applications requiring low light imaging.
The Bosch FlexiDome NDN-932V03-IP Rugged HD Dome Security Camera HDR also includes Bosch IVA (Intelligent Video Analytics) for edge-based detection applications. The sophisticated IVA detection methods eliminate false alarms, create operational functions plus offer reduced NVR server processing requirements. On-board detection methods combined with the MicroSD/MicroSDXC card slot allow the unit to perform as a totally stand-alone surveillance solution. Other advantages for professional integration are diverse and include service monitor output, Lens focusing wizard, automatic motorized back focus with pixel mapping to far more. Physical installation is equally convenient with triple power options 12VDC, 24VAC or PoE (power over Ethernet) single cable install. Easy camera setup is further benefitted by six user modes with optimal preset image settings for different scenarios from indoor, outdoor, low light to Traffic applications. The unit is also IP66 weatherproof rated with a rugged IK10 High Impact Vandal Resistant construction. The OVNIF compliance means the Bosch FlexiDome HD Dome Cameras are a perfect choice for any top performance IP Security Camera System.

Bosch FlexiDome NDN-932V03-IP Main Features:

• 1080P HD (High Definition) IP Video Surveillance
• Real-time 30fps Multi-codec streaming of H.264 and MJPEG
• True Day/Night with SensUP and Intelligent Dynamic Noise Reduction (iDNR)
• HDR (High Dynamic Range) For adverse lighting
• Innovative C-BIT (Content-Based Image Technology)
• IVA (Intelligent Video Analysis) Embedded Edge-based Video Analytic Suite (IVA Motion+ model optional)
• 1.8-3mm, 3.8-13mm or 9-40mm Varifocal Lens Options
• Automatic motorized back focus with pixel mapping
• Ruggedized Vandal Proof High Impact IK10 Tamper Resistant design.
• Weatherproof IP66 Outdoor Ready.
• Variety of Mounting options and accessories.
• On-Board Memory Card Slot for local Recording.
• ONVIF Compliant for integration with third party IP Camera Systems.
• Flexible power input with 12VDC, 24VAC or PoE (Power over Ethernet) support.

Bosch FlexiDome NDN-932V03-IP Technical specifications

Electrical
Power Supply
24 VAC ±10% 50/60 Hz
12 VDC ±10%
Power-over-Ethernet 48 VDC nominal
Current Consumption
1 A (12 VDC)
0.8 A (24 VAC)
0.3 A (PoE 48 VDC)
Power Consumption
12 W
Sensor
Type
1/3-inch CMOS HD
Active Pixels
1920 x 1080
Video
Video compression
H.264 (ISO/IEC 14496-10); M- JPEG,
JPEG
Streaming
Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth.
Resolutions (H x V)
- 1080p HD
1920 x 1080
- 720p HD
1280 x 720
- 480p SD
Encoding: 704 x 480;
Displayed: 854 x 480
- 432p SD
768 x 432
- 288p SD
512 x 288
- 240p SD
Encoding: 352 x 240;
Displayed: 432 x 240
- 144p SD
256 x 144
- corridor mode
400 x 720
- D1 4:3 cropped
704 x 480
Overall IP Delay
Min. 120 ms, Max. 240 ms
GOP structure
IP, IBP, IBBP
Sensitivity
(3200 K, scene reflectivity 89%, F1.2)
Minimum illumination (30 IRE)
Color
0.25 lx (0.025 fc)
Monochrome
0.08 lx (0.008 fc)
Day/Night
Color, Monochrome, Auto
White Balance
ATW (2500 to 10000K), ATW hold and manual
Indoor and Outdoor ATW
Shutter
Automatic Electronic Shutter (AES)
Fixed (1/30 [1/25] to 1/150000)
selectable
Default shutter
Backlight compensation
Off/Auto/IntelligentAE
Wide dynamic range
On/off
Noise reduction
Intelligent Dynamic Noise Reduction
(iDNR) with separate temporal and spatial adjustments
Contrast enhancement
On/off
Sharpness
Sharpness enhancement level selectable
Dynamic Range
90 dB typical
Privacy Masking
Four independent areas, fully
programmable
Video Motion Analysis
Intelligent Video Analysis
Audio
Standard
AAC
G.711, 8kHz sampling rate
L16, 16kHz sampling rate
Signal-to-noise ratio
> 50 dB
Audio Streaming
Full duplex / half duplex
Input/output
Audio
1 x mono line in, 1 x mono line out
• signal line in
12 kOhm typical, 1 Vrms max
• signal line out
1 Vrms at 1.5 kOhm typical,
Alarm
2 inputs
• activation
voltage
+5 VDC to +40 VDC
(+3.3 VDC with DC-coupled 22 kOhm pull-
up resistor)
Relay
1 output
• voltage
30 VAC or +40 VDC max.
Maximum 0.5 A continuous, 10VA
Local Storage
Memory card slot
Supports SDHC and SDXC MicroSD cards
Recording
Continuous recording, ring recording.
alarm/events/schedule recording
Software Control
Unit Configuration
Via web browser or Configuration Manager
Software update
Flash ROM, remote programmable
Network
Protocols
IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP, IGMP V2/V3, ICMP, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1, MIB-II),802.1x, SMTP, iSCSI, UPnP (SSDP)
Encryption
TLS 1.0, SSL, AES (optional)
Ethernet
STP, 10/100 Base-T, auto-sensing, half/full duplex, RJ45
PoE supply
IEEE 802.3at compliant
Connectivity
ONVIF Profile S
Auto-MDIX
Optical
Lens
Varifocal SR (Super Resolution)
Focus control
Automatic focus adjustment
Iris control
Automatic iris control
Viewing angle
1.8 to 3 mm
Wide 98 x 67º (H x V)
Tele 70º x 43º (H x V)
3.8 to 13 mm
Wide: 63º x 36º (H x V)
Tele: 19º x 11.1º (H x V )
9 to 40 mm
Wide: 26º x 15º (H x V)
Tele: 6.1º x 3.1º (H x V )
Mechanical
Dimensions (D x H)
208 x 151 mm (8.2 x 5.95 in)
Weight
2200 g (4.85 lb.)
Color
RAL 9007 Metallic Titanium
Environmental
Operating Temperature
-50°C to +50°C (-58°F to 122°F)
Cold Start Temperature
-20°C (-4°F)
Storage Temperature
-30°C to +70°C (-22°F to +158°F)
Operating Humidity
20% to 100% RH
Storage Humidity
up to 100% RH
Vandal Resistance
IK10
Ingress Resistance
IP 66, NEMA-4X


Ordering information

HD Dome 1080p
1/3-inch CMOS, IP Dome Camera, 1080p, HDR, IVA,
1.8 -- 3 mm lens
Order number
NDN-932V02-IP
HD Dome 1080p
1/3-inch CMOS, IP Dome Camera, 1080p, HDR, IVA,
3.8 -- 13 mm lens
Order number
NDN-932V03-IP
HD Dome 1080p
1/3-inch CMOS, IP Dome Camera, 1080p, HDR, IVA,
9 -- 40 mm lens
Order number
NDN-932V09-IP

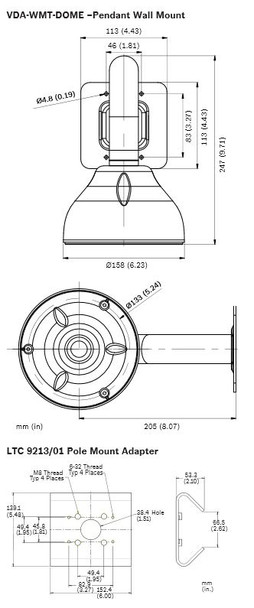

LTC 9213/01 Pole Mount Adapter
Pole mount adapter with stainless steel straps, light
gray finish
Order number
LTC 9213/01
S1460 Service/Monitor Cable
2.5 mm connector to BNC for analog and IP cameras,
1 m
Order number
S1460
MVS-FENC-AES BVIP AES 128 Bit Encryption
BVIP AES 128-bit encryption site license. This license
is required only once per installation. It enables
encrypted communication between BVIP devices and
management stations.
Order number
MVS-FENC-AES
VJT-XTCXF
Videojet XTC XF, H.264 video transcoder
Order number
VJT-XTCXF
Accessories
VDA-832FHD-WMT
Wall mount bracket for HD FlexiDomes
Order number
VDA-832FHD-WMT

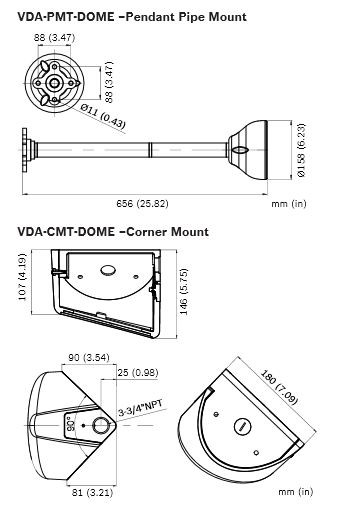

VDA-832FHD-PMT
Pendant pipe mount bracket for HD FlexiDomes
Order number
VDA-832FHD-PMT
