Bosch FlexiDome NIN-832-V03P 1080P HD Vandal Dome IP Camera

Bosch FlexiDome Vandal HD Dome Camera NIN-832-V03P is the base model Bosch 1080P High Definition Vandal Dome Security Camera that raises the industry standards to new levels. The Bosch FlexiDome HD IP Dome Cameras deliver stunning 1080P HD Real-time IP surveillance with superior H.264 and MJPEG video codecs in multiple streams. The Camera also includes the innovative C-BIT (Content-based Image Technology) that provides optimized image processing based on scene performance for all the time clarity. FlexiDome HD also offers true day/night operation, features Digital WDR (wide dynamic range) and offers a variety of image settings with preset image modes for simplified setup. The Bosch FlexiDome NIN-832-V03P Vandal Resistant HD Dome Camera is also offered with an automatic varifocal lens for motorized focal and focus adjustment. The lens is available in a 3-9mm or 10-23mm lens choice and includes automatic back focus for great day and night performance.
The Bosch FlexiDome Vandal HD Dome Cameras enable the latest in advanced IP surveillance for both indoor and outdoor applications. The Bosch Vandal-Resistant FlexiDome is IP66 weatherproof and includes an IK10 High Impact rating and extended operating temperature range for even the toughest environments. Flexible camera installation with various mounting methods to 3 axis adjustment of the internal camera allows easy positioning. The FlexiDome provides multiple professional options for external devices including Audio, Alarm inputs, relay output and a BNC monitor output. The camera further has Bosch IVA Motion Plus with optional full IVA models for the most intelligent video analysis and edge based detection available. All of the FlexiDome Vandal-Resistant Domes allow a range of selectable power inputs from 12VDC to 24VAC or simple single cable installation with PoE. Not only Bosch but other HD IP Security Camera Systems supporting ONVIF can benefit from FlexiDome High performance Network Dome Cameras.

Bosch NIN-832-V03P Main Features:

• 1080P HD (High Definition) IP Video Surveillance
• Intelligent C-BIT Image Enhancement (Content-Based Image Technology)
• Real-time 30fps Multi-streaming of H.264 and MJPEG compression methods.
• True Day/Night with SensUP and Intelligent Dynamic Noise Reduction (iDNR).
• HDR (High Dynamic Range) for adverse lighting conditions.
• IVA (Intelligent Video Analysis) Advanced Motion+ Edge-based Detection (Full IVA model optional)
• 3-9mm or 10-23mm Automatic Varifocal Lens (features motorized zoom and focus adjustment)
• Lens Supports Automatic motorized back focus with pixel mapping
• Vandal Proof High Impact IK10 Tamper Resistant design.
• Weatherproof IP66 Outdoor Ready.

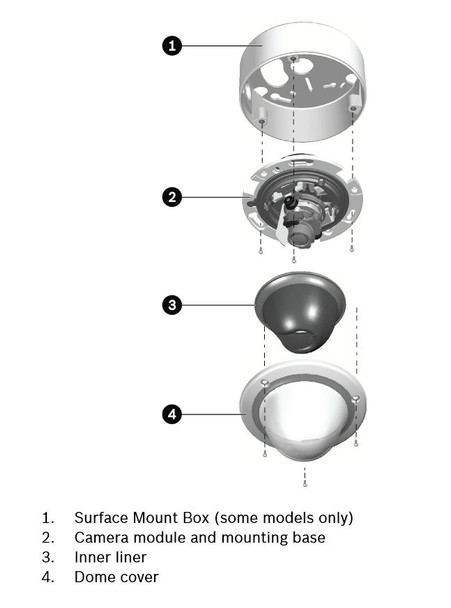

• Variety of Mounting options and accessories.
• On-Board Memory Card Slot for local Recording.
• ONVIF Compliant for integration with third party IP Camera Systems.
• Flexible power input with 12VDC, 24VAC or PoE (power over Ethernet) support.

Bosch NIN-832-V03P Technical specifications:

Electrical
Power Supply
24 VAC 50/60 Hz
12 VDC
Power-over-Ethernet 48 VDC nominal
Current Consumption
500 mA | 600 mA IVA (12 VDC)
450 mA | 500 mA IVA (24 VAC)
150 mA | 175 mA IVA (PoE 48 VDC)
Power Consumption
6 W | 7.2 W IVA
Sensor
Type
1/2.7-inch CMOS
Active Pixels
1920 x 1080
Video streams
Video compression
H.264 (ISO/IEC 14496-10); M- JPEG, JPEG
Streaming
Multiple individually configurable
streams in H.264 and M-JPEG,
configurable frame rate and bandwidth.
Overall IP Delay
Min. 120 ms, Max. 240 ms
OP structure
IP, IBP, IBBP
Encoding interval
1 to 30 (25) ips
Resolutions (H x V)
• 1080p HD
1920 x 1080
• 960p HD 4:3
(cropped)
1280 x 960
• 720p HD
1280 x 720
• D1 4:3 (cropped)
704 x 480
• SD upright
(cropped)
400 x 720
• 480p SD
Encoding: 704 x 480;
Displayed: 854 x 480
• 432p SD
768 x 432
• 288p SD
512 x 288
• 240p SD
Encoding: 352 x 240;
Displayed: 432 x 240
• 144p SD
256 x 144
Sensitivity
(3200 K, scene reflectivity 89%, 30 IRE)
Lens 3 - 9 mm (F1.2)
• Color
0.22 lx (0.022 fc)
• Monochrome
0.05 lx (0.005 fc)
Lens 10 - 23 mm (F1.6)
• Color
0.4 lx (0.04 fc)
• Monochrome
0.1 lx (0.01 fc)
Day/Night
Color, Mono, Auto
White Balance
ATW (2500 to 10000K), ATW hold and
manual
Indoor and Outdoor ATW
Shutter
Automatic Electronic Shutter (AES)
Fixed (1/30 [1/25] to 1/150000)
selectable
Default shutter
Backlight compensation
Off, Auto
Contrast enhancement
On/off
Sharpness
Sharpness enhancement level selectable
Dynamic Range
Digital WDR: 76 dB
Privacy Masking
Four independent areas, fully
programmable
Video Motion Analysis
Motion+ or IVA versions
Audio
Standard
AAC
G.711, 8kHz sampling rate
L16, 16kHz sampling rate
Signal-to-noise ratio
> 50 dB
Audio Streaming
Full duplex / half duplex
Input/output
Analog Video out
CVBS (PAL/NTSC), 1 Vpp, BNC, 75 Ohm
Analog Video out
(service only)
CVBS (PAL/NTSC), 1 Vpp, 2.5 mm jack,
75 Ohm (non-protected)
Audio
1 x mono line in, 1 x mono line out
• signal line in
12 kOhm typical, 1 Vrms max
• signal line out
1 Vrms at 1.5 kOhm typical,
Alarm
2 inputs
• activation
voltage
+5 VDC to +40 VDC
(+3.3 VDC with DC-coupled 22 kOhm pull-
up resistor)
Relay
1 output
• voltage
30 VAC or +40 VDC Max.
Maximum 0.5 A continuous, 10VA
Local Storage
Memory card slot
Supports SDHC and SDXC MicroSD cards
Recording
Continuous recording, ring recording.
alarm/events/schedule recording
Software Control
Unit Configuration
Via web browser or Configuration Manager
Software update
Flash ROM, remote programmable
Network
Protocols
IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP, IGMP V2/V3, ICMP, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1, MIB-II), 802.1x, SMTP, iSCSI, UPnP (SSDP)
Encryption
TLS 1.0, SSL, AES (optional)
Ethernet
STP, 10/100 Base-T, auto-sensing, half/
full duplex, RJ45
PoE supply
IEEE 802.3at Type-2 compliant
Connectivity
ONVIF Profile S
Auto-MDIX
Optical
Lens
3 to 9 mm Automatic Varifocal (AVF) SR
lens
- or –
10 to 23 mm Automatic Varifocal (AVF) SR
lens
Adjustment
Motorized zoom/focus
Iris control
Automatic iris control
Viewing angle (3 to 9 mm)
Wide: 121º x 62º (H x V)
Tele: 38º x 21º (H x V )
Viewing angle (10 to 23 mm)
Wide: 34º x 18º (H x V)
Tele: 14.8º x 8.3º (H x V )

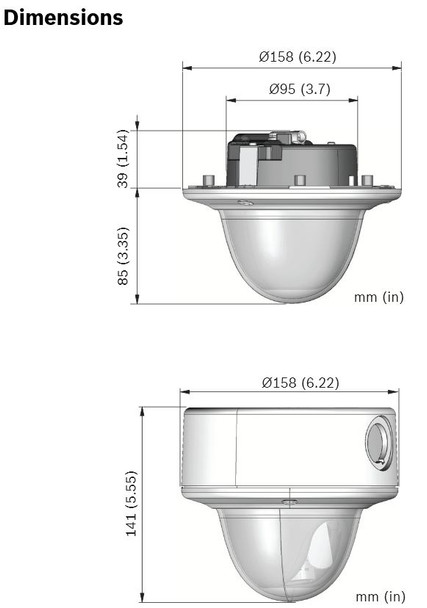

Mechanical
Dimensions (D x H)
158 x 124 mm (6.22 x 4.89 in)
Weight
0.84 kg (1.85 lb.)
1.27 kg (2.8 lb.) with SMB
Mounting
Flush mount or surface mount
Color
White (RAL9010) trim ring with black inner
liner

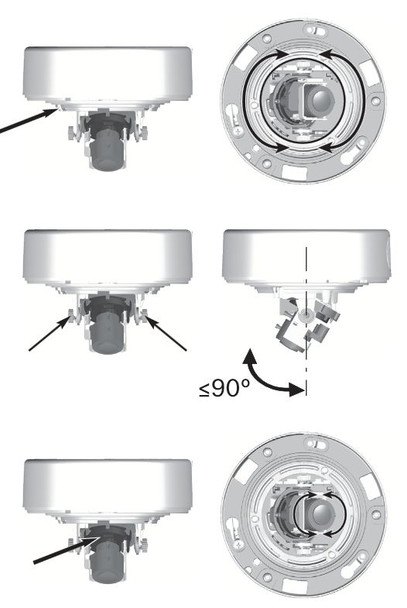

Adjustment range
360º pan, 90º tilt, ±90º twist
Dome bubble
Polycarbonate, clear with UV blocking anti-
scratch coating
Trim ring
Aluminum
Environmental
Operating temperature
-30 ºC to +50 ºC (-22 ºF to +122 ºF)
Cold start temperature
-20 ºC (-4 ºF)
Storage temperature
-50 ºC to +70 ºC (-58 ºF to +158 ºF)
Operating humidity
5% to 93% relative humidity
Storage humidity
Up to 98% relative humidity
Impact protection
EN 50102, IK10
Water/dust protection
IP 66 and NEMA Type 4X
Environmental
Test Method
EN 50130-5:2011 Alarm systems Part 5
(Class IV Outdoor in general)

Ordering information
FLEXIDOME HD 1080p VR 3-9 mm
1/2.7-inch CMOS, IP Vandal-Resistant Dome Camera, 1080p30, 3-9 mm lens
Order number
NIN-832-V03P


FLEXIDOME HD 1080p VR 3-9 mm SMB
1/2.7-inch CMOS, IP Vandal-Resistant Dome Camera, 1080p30, 3-9 mm lens, SMB
Order number
NIN-832-V03PS


FLEXIDOME HD 1080p VR 10-23 mm
1/2.7-inch CMOS, IP Vandal-Resistant Dome Camera, 1080p30, 10-23 mm lens
Order number
NIN-832-V10P



FLEXIDOME HD 1080p VR 10-23 mm SMB
1/2.7-inch CMOS, IP Vandal-Resistant Dome Camera, 1080p30, 10-23 mm lens, SMB
Order number
NIN-832-V10PS



LTC 9213/01 Pole Mount Adapter
Pole mount adapter with stainless steel straps, light
gray finish
Order number
LTC 9213/01
VGA-IC-SP In-ceiling Support Kit for Various Bosch
Dome Cameras
Suspended ceiling support kit for various families of
Bosch dome cameras
Order number
VGA-IC-SP
UPA-2420-50 Power Supply
220 VAC, 50 Hz, 24 VAC, 20 VA Out
Order number
UPA-2420-50
UPA-2430-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 30 VA Out
Order number
UPA-2430-60
UPA-2450-50 Power Supply, 220 V, 50 Hz
Indoor, 220 VAC, 50 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-50
UPA-2450-60 Power Supply, 120 V, 60 Hz
Indoor, 120 VAC, 60 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-60
S1460 Service/Monitor Cable
2.5 mm connector to BNC for analog and IP cameras,
1 m
Order number
S1460
VJT-XTCXF
Videojet XTC XF, H.264 video transcoder
Order number
VJT-XTCXF
MVS-FENC-AES BVIP AES 128 Bit Encryption
BVIP AES 128-bit encryption site license. This license
is required only once per installation. It enables
encrypted communication between BVIP devices and
management stations.
Order number
MVS-FENC-AES


Accessories

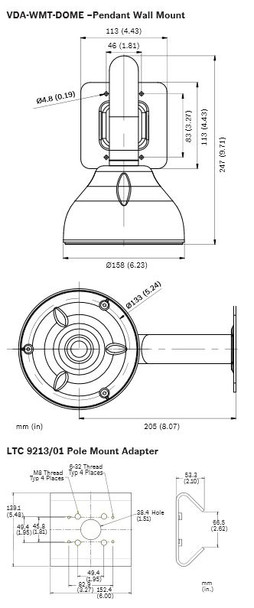

VDA-WMT-DOME Wall Pendant Mount Bracket
Wall pendant mount bracket for FlexiDome cameras
Order number
VDA-WMT-DOME

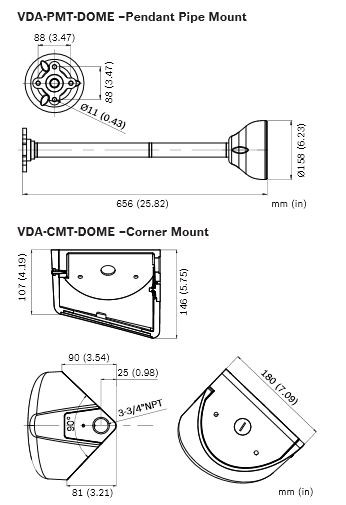

VDA-CMT-DOME Corner Mount Bracket
Corner mount bracket for FlexiDome cameras
Order number
VDA-CMT-DOME
VDA-PMT-DOME Pendant Pipe Mount Bracket
Pendant pipe mount bracket for FlexiDome cameras
Order number
VDA-PMT-DOME
VDA-PLEN-DOME In-ceiling Housing for Plenums Kit
FLEXIDOME in-ceiling housing installation kit (plenum-
rated) for various FLEXIDOME cameras
Order number
VDA-PLEN-DOME
VDA-455TBL Tinted bubble
Tinted bubble for FlexiDome series
Order number
VDA-455TBL
VDA-455CBL Clear bubble
Clear Bubble for FlexiDome series
Order number
VDA-455CBL
Surface Mount Box FLEXIDOME VR
Surface Mount Box for FLEXIDOME VR Cameras
Order number
VDA-455SMB-IP
