Bosch MIC-612 Dual Thermal Infrared 36x CDD PTZ Camera

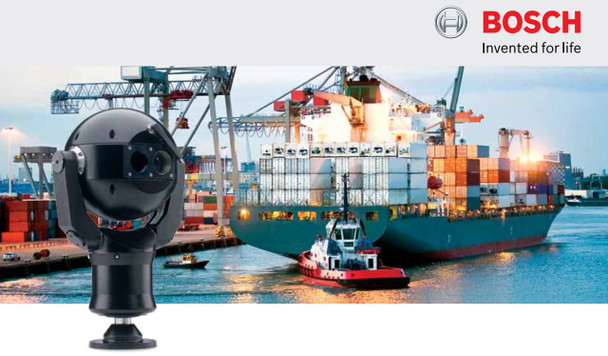

Bosch MIC-612 Thermal Infrared PTZ Camera is a one of a kind and industry leading MIC series Pan/Tilt/Zoom Surveillance Systems equipped with Thermal and Visual imaging. The Bosch MIC-612 PTZ Camera is available in a variety of versions and configurations including Thermal IR Vision with a standard 320x240 and High Resolution 640x480 (ITAR Restricted) image quality. The thermal Imager is accompanied by a 36x optical zoom security camera that includes high resolution, WDR (Wide Dynamic Range) and True Day/Night operation. The Standard Thermal PTZ Camera includes a 35mm lens while the high resolution model includes 50mm lens both offering superior long range detection, recognition and identification of targets. All of this and lots more is integrated into the world's most robust PTZ system for superior video surveillance and security systems.

The Bosch MIC612 Thermal PTZ offers an optical camera with superior performance including 550TVL to in-depth image adjustment and advanced image processing for superior clarity in practically any condition. The unit includes superb low light capabilities and activating the SensUp function allows useable video security in as little as 0.0052 lux. The Thermal Infrared Imager is available in two options for resolution and includes multiple imaging modes like White Hot, Black Hot, Globow, Rainbow or Sephia mode. Depending on the Thermal Imager selected, the Bosch MIC612 provides amazing detection range of 800 meters (2625ft) for humans and up to 2250 meters (7382ft) for objects. The high resolution thermal PTZ gives outstanding range for detecting humans at up to 1500 meters (4921ft) and objects at 3900 meters (12,795ft) for incredible surveillance or security awareness. Featuring countless more video features, the systems offer top of the line video security.

Integrated into a unique Pan/Tilt/Zoom design, the Bosch MIC series has proven for years as a best in industry solution for the most challenging environments. Likewise the unit’s pan/tilt/zoom precision control offers users the optimal control in active surveillance applications. Attributes like Auto Pivot with Auto Scaling help proportionally control Pan/Tilt/Zoom function for maximum effectiveness plus ease of use. The Bosch MIC-612 unit includes a best-in-class PTZ concept with the finest motorized components, rugged construction and versatile deployment options for every type of surveillance and security system requirement. High Speed movement, Top tier accuracy, on-board support for Preset Positions and two styles of Guard Tours are all also supported. Privacy masking to Image Stabilization is all included while there are also two video outputs, one for visual and the second user-switchable on command from optical (visual) to Thermal Infrared. This review covers the CCTV model, however an IP-Camera enabled model is also available with additional features.

The Bosch MIC612 Thermal Infrared PTZ Camera is a high grade solution for the most demanding CCTV security and surveillance systems. The Pan/Tilt/Zoom System is manufactured to NEMA 6P or IP68 weatherproof ratings which are capable of total submersion. The units are built with a specialized Alodine 5200 aluminum coating like that used in the defense and aerospace industry in addition to a final heavy powder coated finish for superior resistance corrosion. Likewise extreme cold or heat are no match for the MIC612 PTZ Camera and the unit even includes a built-in wiper to ensure clear viewing in any weather. Everything from Brushless motors, 360 degree continuous pan as well as 180 degree tilt range for above and below surveillance. Overall, the Bosch MIC series PTZ Security Cameras deliver the pinnacle of advanced video security systems and the solution is highly versatile with basically every imaginable mounting type supported. Contact the A2Z Experts today for more assistance.

Bosch MIC612 Main Features:

• Dual Sensor Visual Thermal IR PTZ Camera System
• Thermal Imager with 35mm or 50mm Lens and - 7.5 Hz NTSC, 8.3 Hz PAL - 30Hz NTSC*, 25Hz PAL* (US export license*)
• Human Detection at up to 1500 meters (Nearly 2x that of prior MIC thermal models)

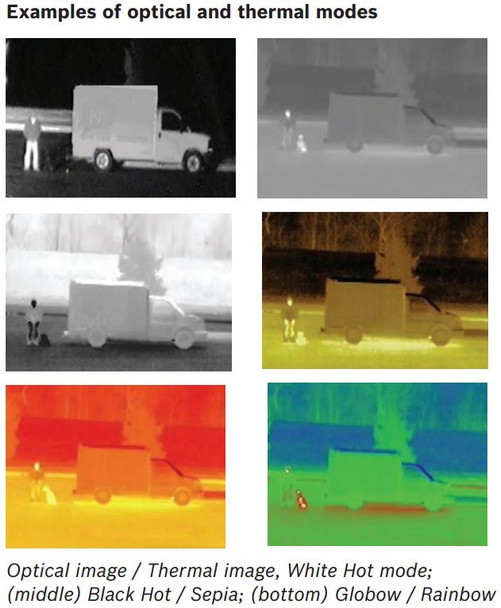

• Imaging Modes Examples: White Hot (default), Color 1 & 2, Black Hot, Fusion, Globow, Ice Fire, Iron bow 1 & 2, Rain, Rainbow and Sepia.
• Exview HAD CCD with 550TVL High Resolution
• 36x Optical (Visual CCD) Zoom
• Wide Dynamic Range (WDR), Image Stabilizer, SensUp, Gain, AGC, White Balance, Sodium Vapor White Balance, Privacy Masking
• AutoPivot and AutoScaling Proportional Pan/Tilt/Zoom, 360-degree Continuous Pan, 186-degree tilt (upright), High Speed and Crawl, Precision Accuracy
• Bilinx and Pelco P/D Protocol Support via RS-485, Preset Positions, Guard Tours (2 Types) and Sectors
• Multi-Language On-Screen Display (OSD) - Software Diagnostic and Interface Adapter Options
• IP Camera version with MIC IP IR Power Supply Unit
• Rugged Anti-Corrosion Construction, IK10 High Impact Resistant with weatherproof IP68 rating NEMA 6P
• Extreme Temperature Range -40 °C to +60 °C (-40 °F to +140 °F) Humidity 0-100%
• Integrated Wiper with optional Washer kits.
• Security Locked in-field PTZ Canting Supported
• Various Options & Accessories: Color, Bracket, Adapters, Control/Communication/Power Conversion, Power and DATA over Coax, etc.
• User Selectable Single or Dual Video Output Viewing
• Dimensions :( W x H x D) 267 mm x 452 mm x 201 mm (10.5 in. x 17.8 in. X 7.9 in.)
• Weight 10.66 kg (23.50 lbs.)(Including 4-in. PCD)

ORDERING INFO

MIC DUAL SENSOR OPTICAL THERMAL PTZ CAMERA SYSTEMS

NTSC, Black, 36x, 320x240 thermal, 7.5Hz thermal frame rate, 35mm lens
Order number MIC-612TIALB36N
NTSC, White, 36x, 320x240 thermal, 7.5Hz thermal frame rate, 35mm lens
Order number MIC-612TIALW36N
PAL, Black, 36x, 320x256 thermal, 8.3Hz thermal frame rate, 35mm lens.
Order number MIC-612TIALB36P
PAL, White, 36x, 320x256 thermal, 8.3Hz thermal frame rate, 35mm thermal lens.
Order number MIC-612TIALW36P
PAL, Grey, 36x, 320x256 thermal, 8.3Hz thermal frame rate, 35mm thermal lens.
Order number MIC-612TIALB36P

NTSC, Black, 36x, 320x240 thermal, 30Hz thermal frame rate, 35mm lens.
Order number MIC-612TFALB36N
NTSC, White, 36x, 320x240 thermal, 30Hz thermal frame rate, 35mm lens.
Order number MIC-612TFALW36N
NTSC, Grey, 36x, 320x240 thermal, 30Hz thermal frame rate, 35mm lens.
Order number MIC-612TFALG36N
PAL, Black, 36x, 320x256 thermal, 25Hz thermal frame rate, 35mm lens.
Order number MIC-612TFALB36P
PAL, White, 36x, 320x256 thermal elements, 25Hz thermal frame rate, 35mm lens.
Order number MIC-612TFALW36P
PAL, Grey, 36x, 320x256 thermal, 25Hz thermal frame rate, 35mm lens.
Order number MIC-612TFALG36P

NTSC, Black, 36x, 640x480 thermal, 7.5Hz thermal frame rate, 50mm lens.
Order number MIC-612HIALB36N
PAL, Black, 36x, 640x512 thermal, 8.3Hz thermal frame rate, 50mm lens.
Order number MIC-612HIABL36P
PAL, White, 36x, 640x512 thermal, 8.3Hz thermal frame rate, 50mm lens.
Order number MIC-612HIALW36P
NTSC, Black, 36x, 640x480 thermal, 30Hz thermal frame rate, 50mm lens.
Order number MIC-612HFALB36N
PAL, Black, 36x, 640x512 thermal, 25Hz thermal frame rate, 50mm lens.
Order number MIC-612HFALB36P

SOME MODELS REQUIRE CLEARING U.S. EXPORT REGULATIONS

Accessories:

MIC THERMAL PTZ CAMERA CABLE DATA, POWER, VIDEO

MIC Thermal Cable 2M
2 meter (6.56 ft.) Order number MIC-THERCBL-2M

MIC Thermal Cable 10M
10 meter (32.81 ft.) Order number MIC-THERCBL-10M

MIC Thermal Cable 20M
20 meter (62.62 ft.) Order number MIC-THERCBL-20M

MIC Thermal Cable 25M
25 meter (82.02 ft.) Order number MIC-THERCBL-25M

MIC-24PSU-2 MIC Power Supply Units with Dual Video Outputs

24 VAC, 50/60 Hz Order number MIC-24PSU-2
115 VAC, 50/60 Order number MIC-115PSU-2
230 VAC, 50/60 Hz Order number MIC-240PSU-2

MIC IP Camera Conversion Power Supplies:

24 VAC, 50/60 Hz Order number MIC-IP-PS-24
115 VAC, 50/60 Hz, Order number MIC-IP-PS-115
230 VAC, 50/60 Hz, Order number MIC-IP-PS-230

Mounting, Brackets, Other Accessories:

Conduit Adapters Deep 4-inch with PCD Base

Black Color (RAL9005) Order number MIC-DCA-BD
White Color (RAL9010) Order number MIC-DCA-WD
Grey Color (RAL 9006) Order number MIC-DCA-GD

Conduit Adapters Shallow for MIC-WMB, MIC-PMB, or MIC-SPR

Black (RAL9005) Order number MIC-SCA-BD
White (RAL9010) Order number MIC-SCA-WD
Grey (RAL9006) Order number MIC-SCA-GD

Aluminum Spreader Plates for Brick Type Surface Installation:

Black (RAL9005) Order number MIC-SPR-BD
White (RAL9010) Order number MIC-SPR-WD
Grey (RAL 9006) Order number MIC-SPR-GD

Corner Mounting Brackets:

Black (RAL9005) Order number MIC-CMB-BD
White (RAL9010) Order number MIC-CMB-WD
Grey (RAL 9006) Order number MIC-CMB-GD

Wall Mount Brackets:

Black (RAL9005) Order number MIC-WMB-BD
White (RAL9010) Order number MIC-WMB-WD
Grey (RAL9006) Order number MIC-WMB-GD

Pole Mounting Bracket: Includes 2 x 17.9-inch stainless steel banding straps - for poles 2.95 to 5.7-inches wide)
Order number MIC-PMB

Biphase Converter for Non-IR and IR Power units without open expansion slots
Order number MIC-BP3

Alarm and Washer Pump Drive Card (8 Input Alarm Interface & washer pump drive card (Not for IR PSU)
Order number MIC-ALM

Washer Kit for IR Power Units only, (washer nozzle and mounting brackets for wall or 4 in. PCD)
Order number MIC-WKT-IR

USB to RS485 Signal Converter for PC interface (1 included with Camera)
Order number MICUSB485CVTR2

Cable USB to BNC adaptor
Order number VP-USB

VG4‑SFPSCKT Fiber Optic Ethernet Media Converter Kit
Order number VG4-SFPSCKT

Software Configuration Tool for Imaging Systems
Order number VP-CFGSFT
