Bosch NBC-265-W 720p HD Wireless IP Camera

Bosch NBC-265-W 720p wireless IP camera provides superior versatility when deploying High Definition IP Surveillance. The Bosch 200 Series Wireless IP Camera provides stunning 720p HD Video streaming with frame rates to 30fps Real-time. The compact network box security camera delivers dual streaming with multiple, individually configurable video streams for H.264 and MJPEG codecs. The Color HD IP Camera also offers excellent low light performance down to 0.3 Lux. The camera is equipped with a 2.8-12mm varifocal lens and support other CS mount, manual iris, megapixel lenses.
The Camera offers additionally other hardware features including local recording, audio and external device connection. The unit has a built-in microphone and supports an audio input and output for integrating speakers or other microphones. Bosch NBC-265-W 720p wireless IP camera also has alarm input and relay output connections to allow a variety of functions from external sensors to relay device operation. Also included is an Memory Card Slot allowing long term on-board storage for video recording triggered by on-board detection methods. The NBC-265-W 720p wireless HD IP Security Cameras are part of the Bosch Advantage line and countless ip camera systems can truly benefit from their innovative features.

Bosch NBC-265-W Main Features:

• HD 720p up to 30fps Real-time High Definition
• Complete network video surveillance system
• HD 720p for sharp images
• Dual H.264 and M-JPEG streams simultaneously
• SD/SDHC card slot for on-board (edge) recording
• IEEE 802.11b/g wireless operation

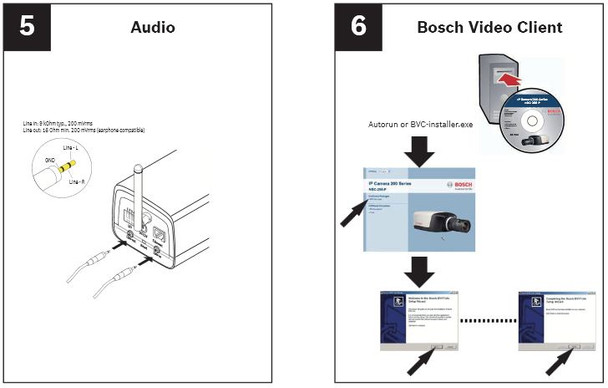

• Two Way Audio with External Device Connection
• ONVIF for universal third party system support
• Alarm input and relay output supported
• 12VDC Power Input

Bosch NBC-265-W specifications:

Power
Input voltage
+12 VDC
Power consumption
4.6 W (max)
Video
Sensor type
¼-inch CMOS
Sensor pixels
1280 x 800
Sensitivity
0.3 lx
Video resolution
720p, 4CIF/D1, VGA, CIF, QVGA
Video compression
H.264 MP (Main Profile); H.264 BP+ (Baseline Pro-
file Plus); M-JPEG
Max. frame rate
30 fps (M-JPEG frame rate can vary depending on
system loading)
Lens
Lens type
Varifocal 2.8 to 12 mm, manual iris, F1.4 to 360
Lens mount
CS mount
Connection
Alarm input
+9 to 30 VDC
Relay out
24 VAC/VDC, 1 A
Audio
Audio input
Built-in microphone
Line in jack connector
Audio output
Line out jack connector
Audio communication
Two-way, full duplex
Audio compression
G.711, L16 (live and recording)
Local Storage
Memory card slot
Supports up to 32 GB SD/SDHC card
(An SD card of Class 4 or higher is recommended for
HD recording)
Recording
Continuous recording, ring recording. alarm/events/
schedule recording
Software Control
Unit configuration
Via web browser or PC surveillance software
Network
Protocols
HTTP, HTTPs, SSL, TCP, UDP, ICMP, RTSP, RTP, Tel-net, IGMPv2/v3, SMTP, SNTP, FTP, DHCP client, ARP, DNS, DDNS, NTP, SNMP, UPnP, 802.1X, iSCSI
Ethernet
10/100 Base-T, auto-sensing, half/full duplex, RJ45
Wireless
IEEE 802.11b/g
Wireless security
WPA-PSK(TKIP), WPA2-PSK(AES)
Mechanical
Dimensions with lens
(H x W x D)
55 x 72 x 178 mm (2.17 x 2.83 x 7.00 in.)
Weight (with lens)
349 g (0.77 lb.) approx.
Mounting
¼-inch mounting socket on top and bottom
Environmental
Operating temperature
Camera
0 ºC to +45 ºC (+32 ºF to +113 ºF)
Operating temperature
Power Supply
0 ºC to +40 ºC (+32 ºF to +104 ºF)
Storage temperature
-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity
10% to 80% relative humidity (non-condensing)
Certifications and approvals
Region
Certification
Europe
CE
Safety
EU: EN 60950-1: 2006,
Reference IEC 60950-1:2005
US: UL 60950-1:
1st edition dated October 31, 2007
Canada: CAN/CSA-C22.2 NO. 60950-1-03
EMC
EN 50130-4:1995 + A1:1998 + A2:2003
FCC Part15 Subpart B, Class B
EMC directive 2004/108/EC
EN 55022/24
EN 61000-3-2 :2006
EN 61000-3-3 : 1995+A1 :2001+A2 :2005
EN 62311: 2008
EN 300 328
EN 301 489-1-17
SRRC China
FCC Part 15 Subpart C
ICES-003 Class B
EN 50121-4:2006
Product Certifications
CE, FCC, UL, cUL, CB, SRRC
Power supply
CE, UL, cUL, PSE, CCC
Ordering information
NBC-265-W 720p Wireless IP Camera
NBC-265-W
LTC 9348/00 Series Indoor Dome Housings
LTC9348/00


ORDERING INFORMATION:

NBC-265-W 720p Wireless IP Camera

Commercial Type No: NBC-265-W
