Bosch NBN-733V-P Dinion HD 720p Starlight IP Security Camera

Bosch NBN-733V-P Dinion HD 720p Day/Night IP Security Camera sets new standards with enhanced high definition IP Surveillance and exceptional low light performance. Equipped with the latest 1/3-inch HD CMOS Sensor, a mechanical IR cut-filter and added low lux imaging technology produces incredible low light HD surveillance. The Cameras provide superb video quality with C-BIT (content based image technology) for optimal video quality in all conditions. The Bosch Dinion HD 720P Series IP Cameras also provide greater than real-time (30fps) with superior 60 frame per second video streaming. The Cameras are embedded with intelligent video analysis Motion+ and an optional full feature video analytic IVA model is available for advanced projects. The camera support multi-streaming of MJPEG and H.264 for high grade imaging and optimized bandwidth.
Bosch NBN-733V-P Dinion HD 720p Day/Night IP Cameras are further designed to deliver every aspect of professional attributes. As one example, the unit includes a built-in memory SDXC card slot for high capacity video storage. Innovative web interfaces deliver superb camera configuration, monitoring and recording playback. The camera also offer external microphone and speaker for connections for two way audio communications. Additional connections for accessory devices like alarm sensors and relay output enable diverse system abilities even from a single IP Camera. Other installer friendly features include service monitor output and auto back-focus for perfect day/night pictures. Universal ONVIF support and triple power input for 12VDC, 24VAC or POE (Power over Ethernet) allow flexible adaptation to a variety of IP Security Camera Systems.

Bosch NBN-733V-P Main Features:

• 720P HD High Definition Real-time Video
• True Day/Night Operation w/IR Cut Filter
• Starlight Series for ultra-low-light performance (0.017 Lux in color 0.0057 lux B/W)
• Intelligent digital noise reduction DNR reduces bandwidth and storage up to 30%
• Auto back focus for Easy Setup and Auto Day/Night Clarity
• H.264 Video Compression with Dual Streaming
• ONVIF Compliance for 3rd Party System integration
• Two Way Audio with external device input
• Alarm input/Relay Output Support
• Local Storage for Flexible recording options
• Bosch IVA (MOTION+) Edge-Based Video Analytic Detection (Full IVA optional)
• Multiple Power Input Options: 12VDC, 24VAC or PoE (Power Over Ethernet)

Bosch NBN-733V-P Specifications:

Electrical
Power Supply
24 VAC 50/60 Hz
12 VDC
Power-over-Ethernet 48 VDC nominal
Current Consumption
500 mA (12 VDC)
450 mA (24 VAC)
175 mA (PoE 48 VDC)
Power Consumption
6 W
Sensor
Type
1/3-inch CMOS HD
Active Pixels
1305 x 1049
Video
Video compression
H.264 (ISO/IEC 14496-10); M- JPEG, JPEG
Streaming
Multiple configurable streams in H.264
and M-JPEG, configurable frame rate and
bandwidth.
Regions of Interest (ROI)
Resolutions (H x V)
- 720p HD
1280 x 720
- 480p SD
Encoding: 704 x 480;
Displayed: 854 x 480
- 432p SD
768 x 432
- 288p SD
512 x 288
- 240p SD
Encoding: 352 x 240;
Displayed: 432 x 240
- 144p SD
256 x 144
- upright mode
400 x 720
- D1 4:3 cropped
704 x 480
Overall IP Delay
Min. 120 ms, Max. 240 ms
GOP structure
IP, IBP, IBBP
Sensitivity
(3200 K, scene reflectivity 89%, F1.2)
Minimum illumination (30 IRE)
Color
0.017 lx (0.0017 fc)
Monochrome
0.0057 lx (0.00057 fc)
Day/Night
Color, Monochrome, Auto
White Balance
ATW (2500 to 10000K), ATW hold and
manual
Indoor and Outdoor ATW
Shutter
Automatic Electronic Shutter (AES)
Fixed (1/30 [1/25] to 1/150000)
selectable
Default shutter
Backlight compensation
(IVA)
Off, Auto, IntelligentAE (iAE)
Backlight compensation
(non IVA)
Off, Auto, BLC
Noise reduction
Intelligent Dynamic Noise Reduction
(iDNR) with separate temporal and spatial
adjustments
Contrast enhancement
On/off
Sharpness
Sharpness enhancement level selectable
Dynamic range
84 dB
Privacy Masking
Four independent areas, fully
programmable
Video Motion Analysis
Intelligent Video Analysis
Audio
Standard
AAC
G.711, 8kHz sampling rate
L16, 16kHz sampling rate
Signal-to-noise ratio
> 50 dB
Audio Streaming
Full duplex / half duplex
Input/output
Analog Video out
(service only)
CVBS (PAL/NTSC), 1 Vpp, 2.5 mm jack,
75 Ohm (non-protected)
Audio
1 x mono line in, 1 x mono line out
• connector
3.5 mm stereo jack
• signal line in
12 kOhm typical, 1 Vrms max
• signal line out
1 Vrms at 1.5 kOhm typical,
Alarm
2 inputs
• activation
voltage
+5 VDC to +40 VDC
(+3.3 VDC with DC-coupled 22 kOhm pull-
up resistor)
Relay
1 output
• voltage
30 VAC or +40 VDC max.
Maximum 0.5 A continuous, 10VA
Local Storage
Memory card slot
Supports SDHC and SDXC MicroSD cards
Recording
Continuous recording, ring recording.
alarm/events/schedule recording
Software Control
Unit Configuration
Via web browser or Configuration Manager
Software update
Flash ROM, remotely programmable
Network
Protocols
IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP,
IGMP V2/V3, ICMP, RTSP, FTP, Telnet,
ARP, DHCP, SNTP, SNMP (V1, MIB-II),
802.1x, SMTP, iSCSI, UPnP (SSDP)
Encryption
TLS 1.0, SSL, AES (optional)
Ethernet
STP, 10/100 Base-T, auto-sensing, half/
full duplex, RJ45
PoE supply
IEEE 802.3at compliant
Connectivity
ONVIF Profile S
Auto-MDIX
Optical
Focus control
Motorized back-focus adjustment
Iris control
Automatic iris control
Mechanical

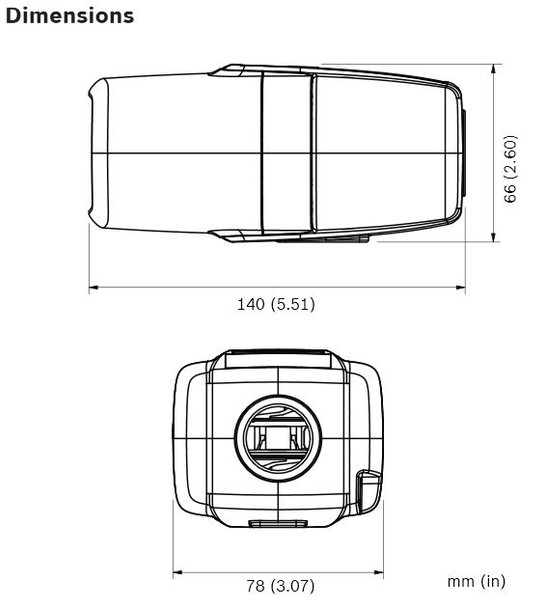

Dimensions (H x W x L)
78 x 66 x140 mm (3.07 x 2.6 x 5.52 in)
without lens
Weight
690 g (1.52 lb.) without lens
Color
RAL 9006 Metallic Titanium
Tripod Mount
Bottom and top 1/4-inch 20 UNC
Environmental
Operating Temperature
-20°C to +50°C (-4°F to 122°F)
Non-IVA: -20°C to +55°C (-4°F to 131°F)
Storage Temperature
-30°C to +70°C (-22°F to +158°F)
Operating Humidity
20% to 93% RH
Storage Humidity
up to 98% RH


CAMERA ORDERING INFO:

Bosch Dinion HD 720p Day/Night IP Security Camera: 1/3-inch CMOS, 720p60, H.264, PoE
Commercial Type No: NBN-733V-P

Bosch Dinion HD 720p IVA Day/Night IP Security Camera: 1/3-inch CMOS, 720p60, H.264, PoE, IVA
Commercial Type No: NBN-733V-IP

Accessories:

Varifocal SR Megapixel Lens
1/2.5-inch varifocal IR corrected lens, CS-mount,
9-40 mm, 5 MP, SR-iris
Order number
LVF-5005C-S0940

Varifocal SR Megapixel Lens
1/2-inch varifocal lens, C-mount, 3.8-13 mm, 3 MP, SR-
iris
Order number
LVF-5003N-S3813

Varifocal SR Megapixel Lens
1/2.5-inch varifocal IR corrected lens, CS-mount,
1.8-3 mm, 5 MP, SR-iris
Order number
LVF-5005C-S1803

EX12LED-3BD-8M Infrared Illuminator
EX12LED IR Illuminator, 850 nm, 30 degree beam
Order number
EX12LED-3BD-8M

EX12LED-3BD-8W Infrared Illuminator
EX12LED, IR Illuminator, 850 nm, 60 degree beam
Order number
EX12LED-3BD-8W

EX12LED-3BD-9M Infrared Illuminator
EX12LED IR Illuminator, 940 nm, 30 degree beam
Order number
EX12LED-3BD-9M

EX12LED-3BD-9W Infrared Illuminator
EX12LED, IR Illuminator, 940 nm, 60 degree beam
Order number
EX12LED-3BD-9W

UPA-2430-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 30 VA Out
Order number
UPA-2430-60

UPA-2450-60 Power Supply, 120 V, 60 Hz
Indoor, 120 VAC, 60 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-60

UPA-2450-50 Power Supply, 220 V, 50 Hz
Indoor, 220 VAC, 50 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-50

S1374 Adapter
converts C mount lens to CS mount camera
Order number
S1374

S1460 Service/Monitor Cable
2.5 mm connector to BNC for analog and IP cameras,
1 m
Order number
S1460

VJT-XTCXF
Videojet XTC XF, H.264 video transcoder
Order number
VJT-XTCXF

Software Options
MVS-FENC-AES BVIP AES 128 Bit Encryption
BVIP AES 128-bit encryption site license. This license is required only once per installation. It enables
encrypted communication between BVIP devices and management stations.
Order number
MVS-FENC-AES
