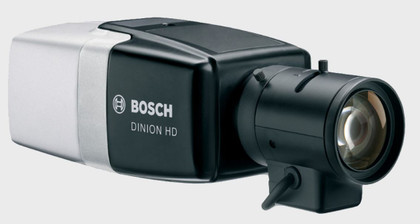

Bosch NBN-932V-IP Dinion HD 1080p HDR IP Security Camera IVA

Bosch NBN-932V-IP Dinion HD 1080p HDR IP Security Camera with IVA brings new meaning to intelligent High Definition IP Surveillance. The Bosch Dinion HD series is a superior box style network camera featuring high performance 1080P HD CMOS progressive scan sensor and intelligent scene analysis to fine-tune image processing for optimal clarity. The Bosch DinionHD Network Security Cameras are also built with Quad-streaming capabilities for both H.264 and MJPEG codecs. The Cameras offer easy image setup with six preset image modes for the best image settings in several environments. The Cameras also provides in-depth images configuration including additional attributes like privacy settings and region of Interest( ROI). The Bosch Dinion HD HDR IP Camera series provides the power High Dynamic Range(HDR) which is similar to the commonly known WDR (Wide Dynamic Range) feature. Bosch HDR enables the camera to conquer challenging lighting such as light and dark areas of a scene.
The Bosch NBN-932V-IP HD IP Cameras are greatly enhanced by Bosch IVA (intelligent Video Analysis) embedded technology. Bosch IVA, which is a suite of highly advanced video analytics, delivers a selection of intelligent detection capabilities that benefit systems with the latest in edge-based IP surveillance. On-board Detection can also be recorded to a local memory card slot, making the Bosch Dinion  HD Cameras able to operate as complete stand-alone video security systems. Attributes like True Day/Night operation and IDNR (intelligent digital noise reduction) provide exceptional performance in all lighting conditions. Also a variety of optional lenses including a super wide angle lens and support for CS or C mount style lenses allows the Dinion HD to adapt to the widest range of applications. The Bosch excels in challenging requirements like indoor entry points with adverse lighting as well as outdoor projects (when used with outdoor housing) such as traffic applications with fast moving objects. The Bosch Dinion HD also includes audio connections, alarm and relay connections and supports 12VDC, 24VAC or PoE (power over Ethernet) for flexible installation requirements. Even more benefits such as ONVIF ensure a highly professional camera capable of improving any IP surveillance system.

Bosch NBN-932V-IP Main Features:

• 1080P High Definition (1920 x 1080) at up to 30fps Real-time
• BOSCH IVA (Intelligent Video Analysis) edge-based Video Analytics
• HDR (High Dynamic Range) delivers superb imaging like WDR (Wide Dynamic Range)
• C-BIT (Content Based Image Technology) enhances image processing to optimal image clarity
• Intelligent DNR (digital noise reduction) reduces bandwidth and storage
• High Definition Surveillance delivers Easy identification of faces, objects and alphanumeric information
• Distinguish colored items even in low lux (light)
• Convenient multiple video stream support and more flexibility for 3rd party software integration
• Quad streaming (2x H.264 + I-frame only + JPEG stream)
• Local SDXC storage (up to 1.2 TB cards), iSCSI and ANR support
• Interoperability with third-party ip camera systems via ONVIF

Technical specifications

Electrical
Power Supply
24 VAC ±10% 50/60 Hz
12 VDC ±10%
Power-over-Ethernet 48 VDC nominal
Current Consumption
500 mA (12 VDC)
450 mA (24 VAC)
175 mA (PoE 48 VDC)
Power Consumption
6.0 W (12 VDC)
10.8 VA (24 VAC)
8.4 W (PoE 48 VDC)
Sensor
Type
1/3-inch CMOS HD
Active Pixels
1920 x 1080
Video
Video compression
H.264 (ISO/IEC 14496-10); M- JPEG,
JPEG
Streaming
Four configurable streams in H.264 and
M-JPEG, configurable frame rate and
bandwidth.
Resolutions (H x V)
- 1080p HD
1920 x 1080
- 720p HD
1280 x 720
- 480p SD
Encoding: 704 x 480;
Displayed: 854 x 480
- 432p SD
768 x 432
- 288p SD
512 x 288
- 240p SD
Encoding: 352 x 240;
Displayed: 432 x 240
- 144p SD
256 x 144
Overall IP Delay
Min. 120 ms, Max. 240 ms
GOP structure
IP, IBP, IBBP
Sensitivity
(3200 K, scene reflectivity 89%, F1.2)
Minimum illumination (30 IRE)
Color
0.25 lx (0.025 fc)
Monochrome
0.08 lx (0.008 fc)
Day/Night
Color, Mono, Auto
White Balance
ATW (2500 to 10000K), ATW hold and
manual
Indoor and Outdoor ATW
Shutter
Automatic Electronic Shutter (AES)
Fixed (1/30 [1/25] to 1/150000)
selectable
Default shutter
Backlight compensation
Off/Auto/Intelligent
Wide dynamic range
On/off
Noise reduction
Intelligent Dynamic Noise Reduction
(iDNR) with separate temporal and spatial
adjustments
Contrast enhancement
On/off
Sharpness
Sharpness enhancement level selectable
Dynamic Range
90 dB
Privacy Masking
Four independent areas, fully
programmable
Video Motion Analysis
Intelligent Video Analysis
Audio
Standard
AAC
G.711, 8kHz sampling rate
L16, 16kHz sampling rate
Signal-to-noise ratio
> 50 dB
Audio Streaming
Full duplex / half duplex
Input/output
Audio
1 x mono line in, 1 x mono line out
• connector
3.5 mm stereo jack
• signal line in
12 kOhm typical, 1 Vrms max
• signal line out
1 Vrms at 1.5 kOhm typical,
Alarm
2 inputs
• activation
voltage
+5 VDC to +40 VDC
(+3.3 VDC with DC-coupled 22 kOhm pull-
up resistor)
Relay
1 output
• voltage
30 VAC or +40 VDC
Maximum 0.5 A continuous, 10VA
Local Storage
Memory card slot
Supports SDHC and SDXC MicroSD cards
Recording
Continuous recording, ring recording.
alarm/events/schedule recording
Software Control
Unit Configuration
Via web browser or Configuration Manager
Software update
Flash ROM, remote programmable
Network
Protocols
IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP,
IGMP V2/V3, ICMP, RTSP, FTP, Telnet,
ARP, DHCP, SNTP, SNMP (V1, MIB-II),
802.1x, SMTP, iSCSI, UPnP (SSDP)
Encryption
TLS 1.0, SSL, AES (optional)
Ethernet
STP, 10/100 Base-T, auto-sensing, half/
full duplex, RJ45
PoE supply
IEEE 802.3at compliant
Connectivity
ONVIF Profile S
Auto-MDIX
Mechanical
Dimensions (H x W x L)
78 x 66 x140 mm (3.07 x 2.6 x 5.52 inch)
without lens
Weight
690 g (1.52 lb.) without lens
Color
RAL 9007 Metallic Titanium
Tripod Mount
Bottom and top 1/4-inch 20 UNC
Environmental
Operating Temperature
-20°C to +50°C (-4°F to 122°F)
Storage Temperature
-30°C to +70°C (-22°F to +158°F)
Operating Humidity
20% to 93% RH
Storage Humidity
up to 98% RH


Ordering information
DinionHD 1080p HDR
1/3-inch CMOS, 1080p, HDR, H.264 dual stream, IVA,PoE
Order number
NBN-932V-IP

Varifocal Megapixel Lens
5 Megapixel, 9-40 mm varifocal, f1.5, 1/2.5-inch lens, DC iris, IR corrected
Order number
VLG-4V0940-MP5

Varifocal Megapixel Lens
5 Megapixel, 1.8-3 mm varifocal, f1.8, 1/2.5-inch lens, DC iris, IR corrected
Order number
VLG-2V1803-MP5

Bosch Recommended IR Illuminator Selections:

EX12LED-3BD-8M Infrared Illuminator
EX12LED IR Illuminator, 850 nm, 30 degree beam
Order number
EX12LED-3BD-8M

EX12LED-3BD-8W Infrared Illuminator
EX12LED, IR Illuminator, 850 nm, 60 degree beam
Order number
EX12LED-3BD-8W

EX12LED-3BD-9M Infrared Illuminator
EX12LED IR Illuminator, 940 nm, 30 degree beam
Order number
EX12LED-3BD-9M

EX12LED-3BD-9W Infrared Illuminator
EX12LED, IR Illuminator, 940 nm, 60 degree beam
Order number
EX12LED-3BD-9W

Bosch Power Supply Options:

UPA-2410-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 10 VA Out
Order number
UPA-2410-60

UPA-2430-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 30 VA Out
Order number
UPA-2430-60

UPA-2450-60 Power Supply, 120 V, 60 Hz
Indoor, 120 VAC, 60 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-60

UPA-2450-50 Power Supply, 220 V, 50 Hz
Indoor, 220 VAC, 50 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-50

S1460 Service/Monitor Cable
2.5 mm connector to BNC for analog and IP cameras,
1 m
Order number
S1460

MVS-FENC-AES BVIP AES 128 Bit Encryption
BVIP AES 128-bit encryption site license. This license is required only once per installation. It enables
encrypted communication between BVIP devices and management stations.
Order number
MVS-FENC-AES

VJT-XTCXF
Videojet XTC XF, H.264 video transcoder
Order number
VJT-XTCXF

Accessories

Varifocal Megapixel Lens
3 Megapixel, 3.8-13 mm varifocal, f1.4, 1/2-inch lens,
DC iris
Order number
VLG-3V3813-MP3

S1374 Adapter
converts C mount lens to CS mount camera
Order number
S1374
