Bosch NDC-274-PM Vandal-Resistant MicroDome IVA HD IP Dome Camera

Bosch NDC-274-PM Vandal-Resistant MicroDome IVA HD IP Dome Camera is an interior vehicle mounting (IVA) network dome for mobile surveillance applications. The Bosch NDC-274-PM Vandal-Resistant MicroDome IVA is designed specifically for use in mobile systems like buses, trains, subways, trucks, taxis, ferries and likewise. The device is built with vibration, vandal, water and dust resistant construction and features an M12 connector. Bosch NDC-274-PM otherwise is just like the other Bosch Vandal MicroDome HD Cameras and includes real-time 30fps streaming, 1080P High Definition and MJPEG plus H.264 codec selections.
The Bosch MicroDome IVA Mobile HD Dome IP Camera is perfect for integrated or stand-alone surveillance operation and can be tethered with wireless such as cellular, can be directly viewed from Bosch mobile or remote software and is further ONVIF compliant for integration with third party NVR systems. The unit is IP66 weatherproof and IK08 high impact rated for a rugged and vandal-resistant solution for all types of mobile surveillance scenarios.

Bosch NDC-274-PM Main Features:

• 1080P HD (High Definition) Video Surveillance
• Real-time 30fps Video in 1080P HD

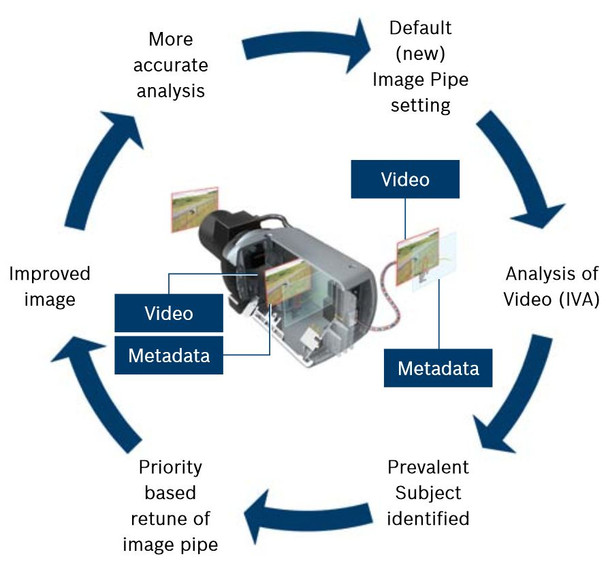

• Bosch IVA (Intelligent Video Analysis) Edge-based Video Analytics
• Multi-streaming in H.264 or MJPEG video codec.
• 4.37mm Megapixel Wide Angle Fixed Lens.
• Ultra-low profile, indoor compact mini dome camera

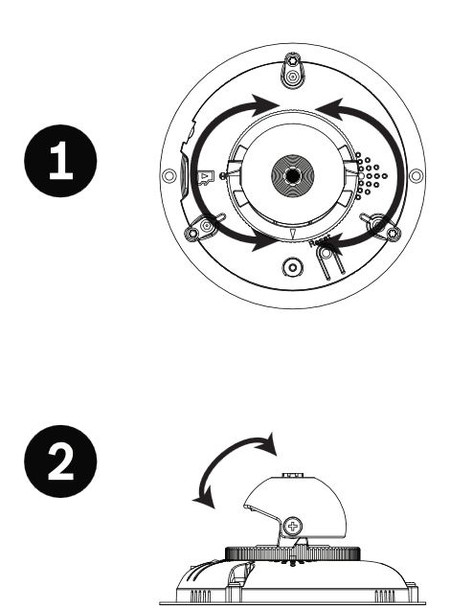

• Internal Camera Pan and Tilt Adjustments
• Vandal-Resistant IK08 High Impact and IP66 Weatherproof Rated.
• Memory Card Slot, Alarm Input, Relay output and (Service Only) Monitor Output
• ONVIF Support for integration with third party IP Systems.
• Flexible Power Input with 12VDC, 24VDC and PoE Support

Bosch NDC-274-PM Technical specifications:

Power
Input voltage
Power-over-Ethernet (48 VDC nominal)
Power consumption
3.84 W (max)
Video
Sensor type
1/2.7-inch CMOS
Sensor pixels
1920 x 1080
Sensitivity
0.3 lx
Video resolution
1080p, 720p, 480p, 240p
Video compression
H.264 MP (Main Profile);
M-JPEG
Max. frame rate
30 fps (M-JPEG frame rate can vary depending on system loading)
Lens
Lens type
4.37 mm fixed, F2.0
Lens mount
Board mounted
View angle
67.4° (H), 40.8° (V)
Local Storage
Memory card slot
Supports up to 32 GB microSDHC / 2 TB microSDXC card
(An SD card of Class 6 or higher is recommended for HD recording)
Recording
Continuous recording, ring recording. alarm/events/schedule recording
Software Control
Unit configuration
Via web browser or PC surveillance software
Network Protocols
IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP, IGMP V2/V3, ICMP, RTSP, FTP, Telnet, ARP, DHCP, SNTP,
SNMP (V1, MIB-II), 802.1x, SMTP, iSCSI, UPnP (SSDP)
Encryption
TLS 1.0, SSL
Ethernet
10/100 Base-T, auto-sensing, half/full duplex
Ethernet connector
M12 D-coded female
PoE
IEEE 802.3af compliant
Mechanical
Dimensions
Diameter: 110 mm (4.33 in)
Height: 55 mm (2.17 in)
Weight
330 g (11.64 oz.) approx.
Environmental
IP protection
IP66
Impact protection
IK08
Operating temperature
-20 ºC to +50 ºC (-4 ºF to +122 ºF)
Storage temperature
-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity
10% to 80% relative humidity (non-condensing)
Standards
Standards
EN 60950-1: 2006, Reference IEC 60950-1:2005
UL 60950-1: 1st edition dated October 31, 2007
CAN/CSA-C22.2 NO. 60950-1-03
UL 60950-22 Outdoor UL
EN 50130-4:1995 + A1:1998 + A2:2003
FCC Part15 Subpart B, Class B
EMC directive 2004/108/EC
EN 55022 class B
EN 61000-3-2 :2006
EN 61000-3-3 : 1995+A1 :2001+A2 :2005
EN 55024
AS/NZS CISPR 22 (equal to CISPR 22)
ICES-003 Class B
EN 50121-4:2006
EN 50121-3-2
CE: Automotive environment
EN 55025
EN 50155: Vibrations, mechanical shock and temperature
ISO16750-3: Vibration
Product certifications
CE, FCC, UL, cUL, C-tick, CB, VCCI
Certifications and approvals
Region
Certification
Europe
CE
USA
UL
FCC
Canada
CSA
Ordering information
NDC-274-PM 1080p IP MicroDome IP66 IVM Camera
