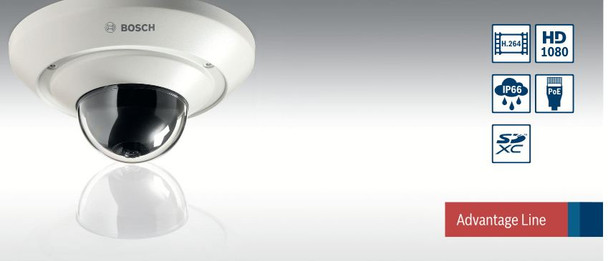

Bosch NDC-274-PT 1080P HD MicroDome Vandal IP Dome Security Camera

Bosch NDC-274-PT 1080P HD MicroDome Vandal IP Dome Security Camera is an ultra-compact and rugged color network dome camera delivering razor sharp HD Surveillance. The unit is equipped with a powerful 2 megapixel sensor delivering superb Real-time 30fps 1080P High Definition Video Surveillance with dual streaming and H.264 plus MJPEG codec options. The Bosch MicroDome NDC-274-PT Vandal HD IP Dome Camera is a rugged and compact camera ideal for numerous application types both indoors and outdoors. The unit features Bosch high quality standards with superior construction, includes diverse network protocols and multiple methods of operation.
The Bosch MicroDome Vandal Proof 1080P HD IP Dome Camera is built to IK08 high impact, IP66 weatherproof ratings for harsh and high security environments. The unit includes professional qualities like service monitor output, offers camera pan and tilt adjustment while also accepting 12VDC, 24VDC and PoE (power over Ethernet) power sources. The MicroDome HD IP Dome Cameras further include built-in motion detection and support for local recording to MicroSDXC memory cards for a complete stand-alone IP security system. The Bosch MicroDome is a class leading unit which also supports ONVIF for universal integration and installation with other leading third party IP Camera Systems.

Bosch NDC-274-PT Main Features:

• 1080P HD (High Definition) Video Surveillance
• Real-time 30fps Video in 1080P HD
• Multi-streaming in H.264 or MJPEG video codec.
• 4.37mm Megapixel Wide Angle Fixed Lens.
• Ultra-low profile, indoor compact mini dome camera
• Internal Camera Pan and Tilt Adjustments
• Vandal-Resistant IK08 High Impact and IP66 Weatherproof Rated.
• Memory Card Slot, Alarm Input, Relay output and (Service Only) Monitor Output
• ONVIF Support for integration with third party IP Systems.
• Flexible Power Input with 12VDC, 24VDC and PoE Support

Bosch NDC-284-PT Technical specifications:

Power
Input voltage
+12 VDC, +24 VDC or Power-over-Ethernet (48 VDC nominal)
Power consumption
3.84 W (max)
Video
Sensor type
1/2.7-inch CMOS (NDC-274-PT)
1/3.2-inch CMOS (NDC-284-PT)
Sensor pixels
1920 x 1080 (NDC-274-PT)
2592 x 1944 (NDC-284-PT)
Sensitivity
0.3 lx
Video resolution
1080p, 720p, 480p, 240p (NDC-274-PT)
5 Megapixels, 480p (NDC-284-PT)
Video compression
H.264 MP (Main Profile);
M-JPEG
Max. frame rate
30 fps (NDC-274-PT)
12 fps (NDC-284-PT)
(M-JPEG frame rate can vary depending on system
loading)
Lens
Lens type
4.37 mm fixed, F2.0 (NDC-274-PT)
3.74 mm fixed, F2.0 (NDC-284-PT)
Lens mount
Board mounted
View angle (H x V)
67.4° x 40.8° (NDC-274-PT)
62.6° x 48.8° (NDC-284-PT)
Connection
Analog video out
2.5 mm jack for installation only (NTSC)
Local Storage
Memory card slot
Supports up to 32 GB microSDHC / 2 TB microSDXC card
(An SD card of Class 6 or higher is recommended for HD recording)
Recording
Continuous recording, ring recording. alarm/events/ schedule recording
Software Control
Unit configuration
Via web browser or PC surveillance software
Network
Protocols
IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP, IGMP V2/V3, ICMP, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1, MIB-II), 802.1x, SMTP, iSCSI, UPnP (SSDP)
Encryption
TLS 1.0, SSL
Ethernet
10/100 Base-T, auto-sensing, half/full duplex
Ethernet connector
RJ45
PoE
IEEE 802.3af compliant
Mechanical
Dimensions
Diameter: 110 mm (4.33 in)
Height: 55 mm (2.17 in)
Weight
330 g (11.64 oz.) approx.
Environmental
IP protection
IP66
Impact protection
IK08
Operating temperature
-20 ºC to +50 ºC (-4 ºF to +122 ºF)
Storage temperature
-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity
10% to 80% relative humidity (non-condensing)
Standards
Standards
EN 60950-1: 2006, Reference IEC 60950-1:2005
UL 60950-1: 1st edition dated October 31, 2007
CAN/CSA-C22.2 NO. 60950-1-03
UL 60950-22 Outdoor UL
EN 50130-4:1995 + A1:1998 + A2:2003
FCC Part15 Subpart B, Class B
EMC directive 2004/108/EC
EN 55022 class B
EN 61000-3-2 :2006
EN 61000-3-3 : 1995+A1 :2001+A2 :2005
EN 55024
AS/NZS CISPR 22 (equal to CISPR 22)
ICES-003 Class B
EN 50121-4:2006
EN 50121-3-2
CE: Automotive environment
EN 55025
EN 50155: Vibrations, mechanical shock and temperature
ISO16750-3: Vibration
Product certifications
CE, FCC, UL, cUL, C-tick, CB, VCCI
Certifications and approvals
Region
Certification
Europe
CE
USA
UL
FCC
Canada
CSA

Ordering Info:

NDC-274-PT 1080p IP MicroDome IP66 Camera
NDC-274-PT IP MicroDome 1080p IP66
Commercial Type No: NDC-274-PT
