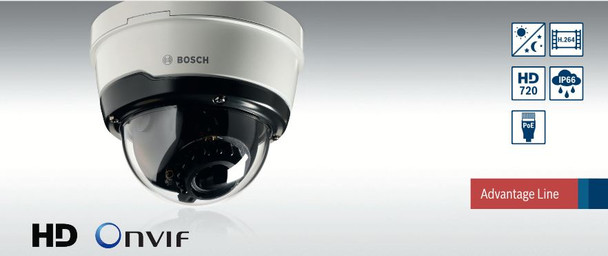

Bosch NDN-265-PIO Vandal-Resistant IR HD Dome IP Camera 720P

Bosch NDN-265-PIO Vandal IR HD dome camera is an Advantage line Bosch IP Camera that is feature packed and cost effective for professional IP Surveillance. The Bosch NDN-265-PIO HD Vandal Dome Security Cameras enable powerful 720p High Definition video with H.264 and M-JPEG codecs for high quality imaging. The unit further provides up to 30fps Real-time video streaming. The unit is a true Day/Night camera further equipped with IR LEDs for unfailing night vision that ensures protection in any lighting condition. The Bosch HD IR Dome Camera is also built with a wide angle, varifocal DC Auto Iris Lens for flexible focal adjustment and project adaptability. The Bosch HD Vandal Proof Dome camera also supports Two Way Audio with line inputs and outputs for external audio devices.
Bosch NDN-265-PIO Vandal Resistant HD Dome Security Cameras are also weatherproof with an IP66 rating, have an IK10 high impact rating with tamper resistant design. The camera therefore is perfect for strict indoor or outdoor surveillance system needs. In Fact, with built in detection methods and on-board memory card slot the camera can act as an all in one security camera system with local recording and remote monitoring.
Other professional features like the Infrared IR Illumination Distance of 50ft in darkness or simple Alarm and Relay connections make the Bosch a best in class camera ideal for a variety of applications. Universal integration and installation of the cameras with third party system thanks ONVIF Compliance is also an excellent highlight. The Bosch NDN-265-PIO HD IR Vandal Dome Camera includes 12VDC or PoE (Power-over-Ethernet) power input options while other key features like alarm input and relay output expand the possibilities. The Bosch NDN-265-PIO Vandal Proof HD IR Dome Security Camera is ideal for strict HD Video Surveillance yet delivers economic savings to any security camera system design.

Bosch NDN-265-PIO Main Features:

• 720P HD IP Video Surveillance
• True Day/Night with IR LED (Infrared) Night vision
• 2.7-9mm Varifocal DC Auto Iris Lens
• Vandal Proof, High Impact Resistant IK10
• Outdoor Ready Weatherproof IP66
• +12 VDC or PoE Power-over-Ethernet
• Two Way Audio, Alarm and Relay connection supported
• ONVIF compliance for universal IP system integration
• On-board local recording to MicroSD card slot

Bosch NDN-265-PIO Technical specifications:

Power
Input voltage
+12 VDC or Power-over-Ethernet (48 VDC nominal)
Power consumption
6.72 W (max)
Video
Sensor type
¼-inch CMOS
Sensor pixels
1280 x 800
Sensitivity
0.3 lx (IR off)
0 lx (IR on)
Video resolution
720p, 480p, 240p
Video compression
H.264 MP (Main Profile); H.264 BP+ (Baseline Profile Plus); M-JPEG
Max. frame rate
30 fps
Night vision Distance
15 m (50 ft.)
LED
15 LED high efficiency array, 850 nm
Lens
Lens type
Varifocal 2.7 to 9 mm, DC Iris F1.2 to close, D/N switch
Lens mount
Board mounted
Connection
Analog video out
BNC connector
Alarm input
Short or DC 5V activation
Relay out
Input rating Maximum 1 A 24 VAC/VDC
Audio
Audio input
Line in jack connector
Audio output
Line out jack connector
Audio communication
Two-way, full duplex
Audio compression
G.711, L16 (live and recording)
Local Storage
Memory card slot
Supports up to 32 GB microSDHC card
(An SD card of Class 6 or higher is recommended for
HD recording)
Recording
Continuous recording, ring recording. alarm/events/schedule recording
Software Control
Unit configuration
Via web browser or PC surveillance software
Network
Protocols
IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP, IGMP V2/V3, ICMP, RTSP, FTP, Telnet, ARP, DHCP, SNTP,
SNMP (V1, MIB-II), 802.1x, SMTP, iSCSI, UPnP (SSDP)
Ethernet
10/100 Base-T, auto-sensing, half/full duplex, RJ45
PoE
IEEE 802.3af compliant
Mechanical
Dimensions (H x W x D)
Diameter: 145 mm (5.72 in)
Height: 118 mm (4.66 in))
Weight
1.07 kg (2.36 lb.) approx.
Environmental
Operating temperature
-20 ºC to +50 ºC (-4 ºF to +122 ºF)
Storage temperature
-20 ºC to +70 ºC (-4 ºF to +158 ºF)
Humidity
Less than 90% relative humidity (non-condensing)
Certifications and approvals
Standards
EN 60950-1
UL 60950-1
UL 60950-22
CAN/CSA-C22.2 NO. 60950-1
CAN/CSA-C22.2 N0. 60950-22
EN 50130-4:1995 + A1:1998 + A2:2003
FCC Part15 Subpart B, Class B
EMC directive 2004/108/EC
EN 55022/24 class B
EN 61000-3-2 :2006
EN 61000-3-3 : 1995+A1 :2001+A2 :2005
VCCI J55022 V2 / V3
AS/NZS CISPR 22 (equal to CISPR 22)
ICES-003 Class B
EN 50121-4:2006
IEC 60825-1
Product certifications
CE, FCC, UL, cUL, C-tick, CB, VCCI
Ingress protection
IP66
Impact protection
IK10
Ordering information
NDN-265-PIO HD 720p Day/Night Infrared
Dome Camera
NDN-265-PIO
IP200/MicroDome cameras wall
mount
NDA-WMT-DOME
