Bosch NIN-832-V03IP FlexiDome 1080P HD Vandal IP Dome Camera IVA

Bosch NIN-832-V03IP FlexiDome Vandal HD IP Dome Cameras embedded with Bosch IVA enable the next generation in high definition IP Surveillance. The unit provides exceptional high grade imaging with C-BIT (content-based image technology) and the latest HD CMOS image sensor for razor sharp HD video streams. The cameras motorized automatic back focus and automatic varifocal lens, true day/night operation with Digital WDR combine to ensure crisp surveillance in the most challenging conditions. Options for 3-9mm lens  with models NIN-832-V03IP, NIN-832-V03IPS or 10-23mm lens with models NIN-832-V10IP, NIN-832-V10IPS. The Camera provides Real-time 30fps video and supports multiple streams for optimized system configurations. On-board Bosch IVA (Intelligent Video Analysis) not only supports the C-BIT enhancement but also enable some of the most sophisticated Video Analytics available with a fully edge-based (in the camera) concept. The Bosch IVA feature provides advanced detection methods capable of performing numerous operational needs and eliminates false alarms as well as resources used by the NVR system.

Bosch FlexiDome HD Vandal Proof IP Dome Cameras are also built as tough as they are smart. The construction is rated to IK10 High impact standards and with IP66 weatherproof rating the cameras are perfect indoor or outdoor installation. Extended operating temperature, preset video user modes, hybrid composite video output, audio support and other professional perks guarantee the FlexiDome provides all that is needed. Flexible power input for 12VDC, 24VAC or PoE (Power Over Ethernet) and added service monitor output and focus wizard make setup as simple as possible. The compact vandal dome camera design includes multiple mounting options and accessories as well as a 3 axis camera gimbal for fine tune positioning of the unit. The cameras ONVIF compliance enable universal integration of this superior device with third party IP Camera Systems.

Bosch NIN-832-V03P Main Features:

• 1080P HD (High Definition) IP Video Surveillance
• Intelligent C-BIT Image Enhancement (Content-Based Image Technology)
• Real-time 30fps Multi-streaming of H.264 and MJPEG compression methods.
• True Day/Night with SensUP and Intelligent Dynamic Noise Reduction (iDNR).
• HDR (High Dynamic Range) for adverse lighting conditions.
• Bosch IVA (Intelligent Video Analysis) Superior Edge-based Video Analytics (Motion+ model optional)
• 3-9mm or 10-23mm Automatic Varifocal Lens (features motorized zoom and focus adjustment)
• Lens Supports Automatic motorized back focus with pixel mapping
• Vandal Proof High Impact IK10 Tamper Resistant design.
• Weatherproof IP66 Outdoor Ready.
• Variety of Mounting options and accessories.
• On-Board Memory Card Slot for local Recording.
• ONVIF Compliant for integration with third party IP Camera Systems.
• Flexible power input with 12VDC, 24VAC or PoE (power over Ethernet) support.

Bosch NIN-832-V03P Technical specifications:

Electrical
Power Supply
24 VAC 50/60 Hz
12 VDC
Power-over-Ethernet 48 VDC nominal
Current Consumption
500 mA | 600 mA IVA (12 VDC)
450 mA | 500 mA IVA (24 VAC)
150 mA | 175 mA IVA (PoE 48 VDC)
Power Consumption
6 W | 7.2 W IVA
Sensor
Type
1/2.7-inch CMOS
Active Pixels
1920 x 1080
Video streams
Video compression
H.264 (ISO/IEC 14496-10); M- JPEG, JPEG
Streaming
Multiple individually configurable
streams in H.264 and M-JPEG,
configurable frame rate and bandwidth.
Overall IP Delay
Min. 120 ms, Max. 240 ms
OP structure
IP, IBP, IBBP
Encoding interval
1 to 30 (25) ips
Resolutions (H x V)
• 1080p HD
1920 x 1080
• 960p HD 4:3
(cropped)
1280 x 960
• 720p HD
1280 x 720
• D1 4:3 (cropped)
704 x 480
• SD upright
(cropped)
400 x 720
• 480p SD
Encoding: 704 x 480;
Displayed: 854 x 480
• 432p SD
768 x 432
• 288p SD
512 x 288
• 240p SD
Encoding: 352 x 240;
Displayed: 432 x 240
• 144p SD
256 x 144
Sensitivity
(3200 K, scene reflectivity 89%, 30 IRE)
Lens 3 - 9 mm (F1.2)
• Color
0.22 lx (0.022 fc)
• Monochrome
0.05 lx (0.005 fc)
Lens 10 - 23 mm (F1.6)
• Color
0.4 lx (0.04 fc)
• Monochrome
0.1 lx (0.01 fc)
Day/Night
Color, Mono, Auto
White Balance
ATW (2500 to 10000K), ATW hold and
manual
Indoor and Outdoor ATW
Shutter
Automatic Electronic Shutter (AES)
Fixed (1/30 [1/25] to 1/150000)
selectable
Default shutter
Backlight compensation
Off, Auto
Contrast enhancement
On/off
Sharpness
Sharpness enhancement level selectable
Dynamic Range
Digital WDR: 76 dB
Privacy Masking
Four independent areas, fully
programmable
Video Motion Analysis
Motion+ or IVA versions
Audio
Standard
AAC
G.711, 8kHz sampling rate
L16, 16kHz sampling rate
Signal-to-noise ratio
> 50 dB
Audio Streaming
Full duplex / half duplex
Input/output
Analog Video out
CVBS (PAL/NTSC), 1 Vpp, BNC, 75 Ohm
Analog Video out
(service only)
CVBS (PAL/NTSC), 1 Vpp, 2.5 mm jack,
75 Ohm (non-protected)
Audio
1 x mono line in, 1 x mono line out
• signal line in
12 kOhm typical, 1 Vrms max
• signal line out
1 Vrms at 1.5 kOhm typical,
Alarm
2 inputs
• activation
voltage
+5 VDC to +40 VDC
(+3.3 VDC with DC-coupled 22 kOhm pull-
up resistor)
Relay
1 output
• voltage
30 VAC or +40 VDC Max.
Maximum 0.5 A continuous, 10VA
Local Storage
Memory card slot
Supports SDHC and SDXC MicroSD cards
Recording
Continuous recording, ring recording.
alarm/events/schedule recording
Software Control
Unit Configuration
Via web browser or Configuration Manager
Software update
Flash ROM, remote programmable
Network
Protocols
IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP, IGMP V2/V3, ICMP, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1, MIB-II), 802.1x, SMTP, iSCSI, UPnP (SSDP)
Encryption
TLS 1.0, SSL, AES (optional)
Ethernet
STP, 10/100 Base-T, auto-sensing, half/
full duplex, RJ45
PoE supply
IEEE 802.3at Type-2 compliant
Connectivity
ONVIF Profile S
Auto-MDIX
Optical
Lens
3 to 9 mm Automatic Varifocal (AVF) SR
lens
- or –
10 to 23 mm Automatic Varifocal (AVF) SR
lens
Adjustment
Motorized zoom/focus
Iris control
Automatic iris control
Viewing angle (3 to 9 mm)
Wide: 121º x 62º (H x V)
Tele: 38º x 21º (H x V )
Viewing angle (10 to 23 mm)
Wide: 34º x 18º (H x V)
Tele: 14.8º x 8.3º (H x V )
Mechanical
Dimensions (D x H)
158 x 124 mm (6.22 x 4.89 in)
Weight
0.84 kg (1.85 lb.)
1.27 kg (2.8 lb.) with SMB
Mounting
Flush mount or surface mount
Color
White (RAL9010) trim ring with black inner
liner
Adjustment range
360º pan, 90º tilt, ±90º twist
Dome bubble
Polycarbonate, clear with UV blocking anti-
scratch coating
Trim ring
Aluminum
Environmental
Operating temperature
-30 ºC to +50 ºC (-22 ºF to +122 ºF)
Cold start temperature
-20 ºC (-4 ºF)
Storage temperature
-50 ºC to +70 ºC (-58 ºF to +158 ºF)
Operating humidity
5% to 93% relative humidity
Storage humidity
Up to 98% relative humidity
Impact protection
EN 50102, IK10
Water/dust protection
IP 66 and NEMA Type 4X
Environmental
Test Method
EN 50130-5:2011 Alarm systems Part 5
(Class IV Outdoor in general)

ORDERING INFO:

FLEXIDOME HD 1080p VR 3-9 mm IVA
1/2.7-inch CMOS, IP Vandal-Resistant Dome Camera,
1080p30, 3-9 mm lens, IVA
Order number
NIN-832-V03IP

FLEXIDOME HD 1080p VR 3-9 mm IVA SMB
1/2.7-inch CMOS, IP Vandal-Resistant Dome Camera,
1080p30, 3-9 mm lens, IVA, SMB
Order number
NIN-832-V03IPS

FLEXIDOME HD 1080p VR 10-23 mm IVA
1/2.7-inch CMOS, IP Vandal-Resistant Dome Camera,
1080p30, 10-23 mm lens, IVA
Order number
NIN-832-V10IP

FLEXIDOME HD 1080p VR 10-23 mm IVA SMB
1/2.7-inch CMOS, IP Vandal-Resistant Dome Camera,
1080p30, 10-23 mm lens, IVA, SMB
Order number
NIN-832-V10IPS


LTC 9213/01 Pole Mount Adapter
Pole mount adapter with stainless steel straps, light
gray finish
Order number
LTC 9213/01
VGA-IC-SP In-ceiling Support Kit for Various Bosch
Dome Cameras
Suspended ceiling support kit for various families of
Bosch dome cameras
Order number
VGA-IC-SP
UPA-2420-50 Power Supply
220 VAC, 50 Hz, 24 VAC, 20 VA Out
Order number
UPA-2420-50
UPA-2430-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 30 VA Out
Order number
UPA-2430-60
UPA-2450-50 Power Supply, 220 V, 50 Hz
Indoor, 220 VAC, 50 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-50
UPA-2450-60 Power Supply, 120 V, 60 Hz
Indoor, 120 VAC, 60 Hz In; 24 VAC, 50 VA Out
Order number
UPA-2450-60
S1460 Service/Monitor Cable
2.5 mm connector to BNC for analog and IP cameras,
1 m
Order number
S1460
VJT-XTCXF
Videojet XTC XF, H.264 video transcoder
Order number
VJT-XTCXF
MVS-FENC-AES BVIP AES 128 Bit Encryption
BVIP AES 128-bit encryption site license. This license
is required only once per installation. It enables
encrypted communication between BVIP devices and
management stations.
Order number
MVS-FENC-AES


Accessories:

VDA-WMT-DOME Wall Pendant Mount Bracket
Wall pendant mount bracket for FlexiDome cameras
Order number
VDA-WMT-DOME

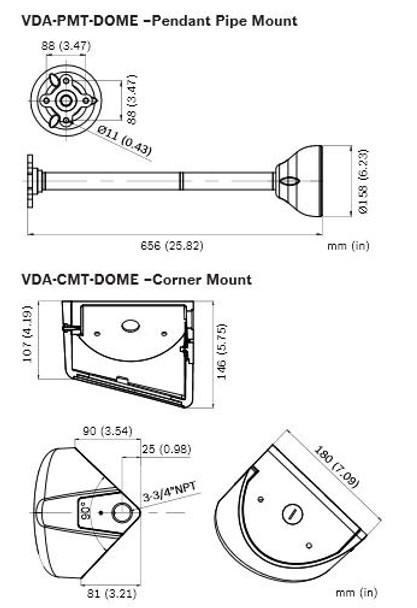

VDA-CMT-DOME Corner Mount Bracket
Corner mount bracket for FlexiDome cameras
Order number
VDA-CMT-DOME
VDA-PMT-DOME Pendant Pipe Mount Bracket
Pendant pipe mount bracket for FlexiDome cameras
Order number
VDA-PMT-DOME
VDA-PLEN-DOME In-ceiling Housing for Plenums Kit
FLEXIDOME in-ceiling housing installation kit (plenum-
rated) for various FLEXIDOME cameras
Order number
VDA-PLEN-DOME
VDA-455TBL Tinted bubble
Tinted bubble for FlexiDome series
Order number
VDA-455TBL
VDA-455CBL Clear bubble
Clear Bubble for FlexiDome series
Order number
VDA-455CBL
Surface Mount Box FLEXIDOME VR
Surface Mount Box for FLEXIDOME VR Cameras
Order number
VDA-455SMB-IP
