Geovision GV-BX120D 1.3 Megapixel IP Security Camera Low Light

Geovision GV-BX120D    1.3 Megapixel Box IP Security Camera is a professional grade camera for superior real-time surveillance. The Geovision GV-BX120D features a special progressive scan Low Lux CMOS sensor coupled with a mechanical IR Cut-filter for superior Low Light and True Day/Night operation. The Compact IP Camera also includes WDR (Wide Dynamic Range) for crisp clear imaging even in high contrast or adverse lighting. The Geovision GV-BX120D Megapixel Security Cameras provide dual streaming of H.264 and MJPEG compression methods. The device can allow video streaming with individually configurable streams. The unit also includes a 2.8-12mm Varifocal Megapixel Lens with support for other CS mount lenses.
Geovision GV-BX120D Megapixel Box IP Security Camera is also equipped with plenty of other professional features from hardware integration to advanced functionality and web interface. The Megapixel IP Camera has a built-in Microphone and supports external connections for complete Two Way Audio options. The Geovision GV-BX120D Megapixel IP Cameras further supply Digital I/O, TV monitor output and power input for either 12VDC or PoE (Power Over Ethernet) power sources. The unit supports a range of network security features and protocols as well as iPhone, IPad, android and 3GPP. Another excellent attribute includes the multiple event trigger functions with local recording via memory card slot. Geovision GV-BX120D 1.3 Megapixel Box IP Security Camera is now ONVIF complaint allowing it to be used with other market leading IP Surveillance Systems.

Geovision GV-BX120D Main Features:

1.3 megapixel progressive scan Low Lux CMOS
Dual streams from H.264 and MJPEG
Up to 30 fps at 1280 x 1024
Built-in / external microphone
2-way audio
One sensor input and alarm output
TV-out support
Memory Card Slot
Wide Dynamic Range (WDR)
Defog
Motion detection

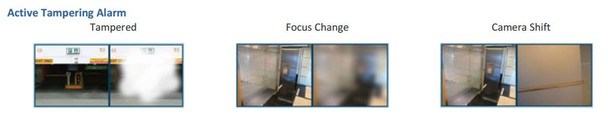

Tampering alarm
Privacy mask
IP address filtering
DC 12V / PoE
Removable IR-cut filter for Day/Night function
Varifocal megapixel lens
Supports iPhone, iPad, Android & 3GPP
31 languages on Web interface
ONVIF conformant

Specifications
Camera
Image Sensor 1/3” progressive scan CMOS
Picture Elements 1280 (H) x 1024 (V)
Color 0.15 Lux (1/30 sec), 0.08 Lux (1/5 sec)
Minimum Illumination B/W 0.08 Lux (1/30 sec), 0.04 Lux (1/5 sec)
IR ON 0 Lux
Shutter Speed Automatic, Manual(1/5 ~ 1/8000 sec)
White Balance Automatic, Manual(2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 50 dB
BLC Yes
Lens
Megapixel Yes
Day/Night Yes(with removable IR-cut filter)
Lens Type Varifocal
Focal Length 2.8 ~ 12mm
Maximum Aperture F / 1.4
Mount CS Mount
Image Format 1/3”
Focus Manual(w /lock)
Operation Zoom Manual(w /lock)
Iris DC drive
Max. Torque (Focus/ Zoom Screws) 0.049N.m
Operation
Video Compression H.264,MJPEG
Video Stream DualstreamsfromH.264 and MJPEG
Frame Rate
30 fps at 1280 x 1024
* The frame rate and the performance may vary depending on the number of connections and data
bitrates(different scenes).
Image Setting Brightness, Contrast, Sharpness,Gamma,White Balance, Flicker-less, Image Orientation, Shutter Speed,
D/N Sensitivity, Backlight Compensation, WDR, Defog
Audio Compression G.711,AAC (16 kHz/ 16 bit)
* AAC is only supported byGV-SystemV8.5 or later
Two-way Audio Yes
Sensor Input 1 Input(Dry Contact)
Alarm Output 1DigitalOutput(200mA 5V DC)
Video Resolution
Main Stream
4:3 1280 x 960, 640 x 480, 320 x 240
16:9 1280 x 720, 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream
4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Ethernet Protocol HTTP,HTTPS, TCP,UDP, SMTP, FTP,DHCP,NTP,UPnP,DynDNS, 3GPP/ISMA,RTSP, PSIA, SNMP,QoS
(DSCP),ONVIF
Mechanical
Power 2-pin terminal block, PoE
Ethernet RJ-45
Audio 1 In (Using the built-in microphone or externally connecting a microphone)
1Out(Stereo phone jack, 3.5mm/ 0.14 in)
Digital I/O 3-pin terminal block, pitch 2.5mm/ 0.1 in
Auto Iris DC drive
Local Storage Micro SD/SDHC/SDXC memory card slot(for Class 6 card or above)
Connectors
TV-Out BNC connector(640 x 480 resolution)
General
Environment Temperature 0 °C ~ 50 °C / 32 °F ~ 122 °F
Humidity 10% to 90% (no condensation)
Power Source 12V DC / PoE
Max. Power Consumption 7 W
Dimensions(L XW XH) 75.5 x 75 x 54mm/ 3.05 x 2.95 x 2.13 in (without lens)
Weight 321 g / 0.71 lb.
Regulatory CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/ PSE
PoE Power Supply Type End-Span
PoE Power Output Per Port 48V DC, 350mA. Max. 15.4watts
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O
control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm,
Text Overlay
Language
Arabic / Bulgarian / Czech /Danish /Dutch / English / Finnish / French /German /Greek /Hebrew / Hungarian /Indonesian /Italian /Japanese / Lithuanian /Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai/ Traditional Chinese / Turkish
Applications
Network Storage GV-NVR,GV-System, GV-Backup Center, GV-Recording Server
Smart Device Access GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
GV-Eye HD for iPad
Live Viewing IE,mobile phone
CMS Server support GV-Control Center, GV-Center V2,GV-VSM
LED Indicator 2 LEDs: Power, Status
