Geovision GV-BX1300-3V Megapixel Box Style IP Camera

Geovision GV-BX1300-3V Megapixel Box Style IP Camera is a class leading IP Security Camera with exceptional performance and features. The IP Camera delivers 1.3 Megapixel (1280 x 1024) high frame rate surveillance and support Dual Streaming with H.264 or MJPEG. The Geovision GV-BX1300 Series Megapixel Cameras are true Day/Night cameras with Removable IR Cut-filter for exceptional low light imaging. The WDR (Wide Dynamic Range) function ensures for superb clarity even in high contrast lighting for truly professional surveillance. The Geovision GV-BX1300 is sold in Fixed Lens versions like the GV-BX1300-0F 4mm, GV-BX1300-1F 8mm or GV-BX1300-2F 12mm. This selection is the unit with a 2.8-12mm varifocal DC Iris Lens option as the GV-BX1300-3V IP Camera.
Geovision GV-BX1300-3V 1.3 Megapixel IP Camera is a full feature camera with amazing flexibility and quality design. Geovision GV-BX1300-3V IP Camera includes built-in microphone with external mic and speaker connections for two-way audio. The unit can also support WiFi when used with a GV-WiFi Adapter. Other benefits include Digital I/O for relays and external devices, and BNC TV output for easy setup or composite signal to DVR. The Geovision GV-BX1300 Megapixel IP Security Camera also has built in event triggers like Tampering, Alarm input and Motion Detection with support for high capacity local recording on Micro SD Card. The Camera accepts a 12VDC power source or PoE (Power over Ethernet) for easy single cable installation. The Geovision GV-BX1300-3V IP Cameras are furthermore ONVIF compliant making them an ideal choice for 3rd Party IP Security Camera Systems.

Geovision GV-BX1300 Main Features

• 1.3 megapixel progressive scan CMOS
• Dual streams from H.264 and MJPEG
• Up to 30 fps at 1280 x 1024
• Built-in / external microphone
• 2-way audio
• One sensor input and alarm output
• TV-out support
• Memory Card Slot
• Mini USB slot for WiFi Adapter (Optional)
• Superior Image Enhancement Wide Dynamic Range (WDR)
• Professional Functions: Defog, Motion detection, Tampering alarm, Privacy mask
• IP address filtering
• Power: 12VDC or PoE (Power over Ethernet)
• Varifocal megapixel lens (Varifocal Lens Default -Fixed Models options - See Model Options)
• Supports iPhone, iPad, Android & 3GPP
• 31 languages on Web interface
• ONVIF conformant

Geovision GV-BX1300 Specifications:

Camera GV-BX1300-0F GV-BX1300-1F GV-BX1300-2F GV-BX1300-3V
Image Sensor 1/2.5" progressive scan CMOS
Picture Elements 1280 (H) x 1024 (V)
Color 0.15 Lux at F/1.4
Minimum Illumination B/W 0.10 Lux at F/1.4
IR ON 0 Lux
Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec.)
White Balance Automatic, Manual (2800 ~ 8500K)
Gain Control Automatic
S/N Ratio 45 dB
BLC Yes
Lens
Megapixel Yes
Day/Night Yes (with removable IR-cut filter)
Lens Type Fixed Varifocal
Focal Length 4mm 8mm 12mm 2.8 ~ 12mm
Maximum Aperture F/1.5 F/1.6 F/1.5
Mount CS Mount
Image Format 1/3" 1/2.5" 1/3"
Focus Manual Manual (w/lock)
Operation Zoom Fixed Manual (w/lock)
Iris Fixed DC drive
Torque (Focus/Zoom screws) 0.049N.m
Operation
Video Compression H.264, MPEG4
Video Streaming DualstreamsfromH.264 or MJPEG
Frame Rate
30 fps at 1280 x 1024
* The frame rate and performance may vary depending on the number of connections and data bitrates
(Different scenes).
Image Setting Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation,
Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog
Audio Compression G.711, AAC (24 kHz/ 16 bit)
*AAC (24 kHz/ 16 bit) is only supported byGV-SystemV8.5.6 or later.
Two-way Audio Yes
Sensor Input 1 input (Dry Contact)
Alarm Output 1DigitalOutput (200mA 5VDC)
Video Resolution
Main Stream
4:3 1280 x 960, 640 x 480, 320 x 240
16:9 1280 x 720, 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream
4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Protocol HTTP,HTTPS, TCP,UDP, SMTP, FTP,DHCP,NTP,UPnP,DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP,QoS
(DSCP)
Wireless LAN IEEE 802.11 b/g/n
Antenna Type External
Security WEP, WPA-PSK(TKIP), WPA-PSK(AES), WPA2-PSK(TKIP), WPA2-PSK(AES)
Mechanical
Temperature Detector Yes
Power 2-pin terminal block, PoE
Ethernet RJ-45
Audio 1 In (Using the built-in microphone or externally connecting a microphone)
1Out(Stereo phone jack, 3.5mm/ 0.14”)
Digital I/O 3-pin terminal block, pitch 2.5mm(0.1”)
Auto Iris Yes
Local Storage Micro SD / SDHC / SDXC memory card slot(for Class 6 card or above)
TV-Out BNC connector(640 x 480 resolution)
Connectors
Mini USB Yes (for GV-WiFi Adapter)
LED Indicator 2 LEDs: Power, Status
General
Operating Temperature 0 °C ~ 50 °C (32 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)
Power Source 12VDC / PoE
Max. Power Consumption 9.5W

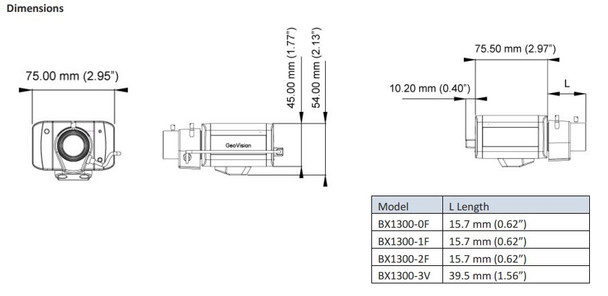

Dimensions(L X WXH) 75.5 x 75 x 54mm(2.97” x 2.95” x 2.13”)(without lens)
Weight 300 g (0.66 lb.)
Regulatory CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard IEEE 802.3af Class 3 Power over Ethernet/ PD
PoE Power Supply Type End-Span
PoE Power Output Per Port 48VDC, 350mA. Max. 15.4watts
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O
control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm,
Text Overlay
Language
Arabic / Bulgarian / Czech /Danish /Dutch / English / Finnish / French /German /Greek /Hebrew /
Hungarian /Indonesian /Italian /Japanese / Lithuanian /Norwegian / Persian / Polish / Portuguese /
Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai/
Traditional Chinese / Turkish
Applications
Network Storage GV-NVR,GV-System, GV-Backup Center, GV-Recording Server
Smart Device Access GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
GV-EyeHDforiPad
Live Viewing IE,mobile phone
CMS Server support GV-Control Center, GV-Center V2,GV-VSM


GV-BX1300-0F    Fixed    4 mm    F/1.5    1/3"
GV-BX1300-1F    Fixed    8 mm    F/1.6    1/2.5"
GV-BX1300-2F    Fixed    12 mm    F/1.6    1/2.5"
GV-BX1300-3V    DC Drive    2.8 ~ 12 mm    F/1.4    1/3"
