Geovision GV-BX320D-0 3 Megapixel IP Security Camera

Geovision GV-BX320D-0 3 Megapixel IP Security Camera is a ultra-high definition Box style network camera perfect for high security applications requiring superior detail. The Geovision GV-BX320D-0 is equipped with a powerful 3 Megapixel Progressive Scan CMOS Sensor and features an IR cut filter for true Day/Night Operation. The Megapixel Network Camera further provides 20fps in full 2048 x 1536 pixel resolution or full 30 frames per second in HD 1080p (1920 x 1080) High Definition. The Geovision GV-BX320D-0 also allows dual streaming of H.264 and MJPEG video codecs for customized bandwidth and applications requirements. The Geovision IP Camera also includes the superior WDR (Wide Dynamic Range) Function for excellent light and dark image compensation in adverse lighting conditions.
The Geovision GV-BX320D Series Megapixel IP Security Cameras are sold with two lens options. The DC Iris Varifocal Megapixel Lens options are the 3.1-8mm DC Lens with model GV-BX320D-0 or the wide angle version with the 2.8-6mm Lens as model GV-BX320D-1. The Camera also supports other CS mount Style lenses for a variety of applications. The Geovision GV-BX320D-0 Megapixel Camera is an innovative IP Security Camera featuring built-in Microphone and Two Way Audio Connections as well as TV video output and Digital I/O. The megapixel network camera also offers on-board detection methods like motion detection with recording to local Memory Card for stand-alone or back-up options. Dual Power source for 12VDC or PoE (Power Over Ethernet) and ONVIF compliance make the Geovision GV-BX320D-0 a perfect choice for professional video surveillance in pair other leading IP Camera systems.

Geovision GV-BX320D-0 Main Features:

• 3 megapixel progressive scan CMOS
• Dual streams from H.264 and MJPEG
• Up to 20 fps at 2048 x 1536, 30 fps at 1920 x 1080
• Built-in / external microphone
• 2-way audio
• One sensor input and alarm output
• TV-out support
• Memory Card Slot
• Wide Dynamic Range (WDR)
• Defog
• Motion detection
• Tampering alarm
• Privacy mask
• IP address filtering
• DC 12V / PoE
• Removable IR-cut filter for Day/Night function
• Varifocal megapixel lens
• Supports iPhone, iPad, Android & 3GPP
• 31 languages on Web interface
• ONVIF conformant

Geovision GV-BX320D Specifications:

Camera GV-BX320D-0 GV-BX230D-1
Image Sensor 1/2.5" progressive scan CMOS
Picture Elements 2048 (H) x 1536 (V)
Color 1 Lux (1/30 sec.), 0.5 Lux (1/5 sec.)
Minimum Illumination B/W 0.2 Lux (1/30 sec.), 0.1 Lux (1/5 sec.)
IRON 0 Lux
Shutter Speed Automatic, Manual(1/5 ~ 1/8000 sec.)
White Balance Automatic, Manual(2800K ~ 8500K)
Gain Control Automatic
S/ 45 dB
BLC Yes
Lens
Megapixel Yes
Day/Night Yes(with removable IR-cut filter)
Lens Type Varifocal
Focal Length 3.1 ~ 8mm 2.8 ~ 6mm
Maximum Aperture F / 1.2 F / 1.3
Mount CS Mount
Image Format 1/3"
Focus Manual(w /lock)
Operation Zoom Manual(w /lock)
Iris DC drive
Max. Torque (Focus/ Zoom Screws) 0.049N.m
Operation
Video Compression H.264, MJPEG
Video Stream DualstreamsfromH.264 and MJPEG
Frame Rate
20 fps at 2048 x 1536, 30 fps at 1920 x 1080
* The frame rate and the performance may vary depending on the number of connections and data
bitrates(different scenes).
Image Setting Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed,
D/N Sensitivity, Backlight Compensation, WDR, Defog
Audio Compression G.711, AAC (16 kHz/ 16 bit)
* AAC is only supported byGV-SystemV8.5 or later
Two-way Audio Yes
Sensor Input 1 Input(Dry Contact)
Alarm Output 1DigitalOutput(200mA 5VDC)
Video Resolution
Main Stream
4:3 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream
4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Ethernet Protocol HTTP,HTTPS, TCP,UDP, SMTP, FTP,DHCP,NTP,UPnP,DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP,QoS
(DSCP),ONVIF

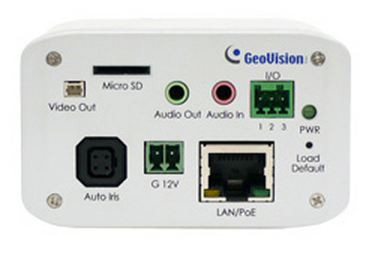

Mechanical
Power 2-pin terminal block, PoE
Ethernet RJ-45
Audio 1 In (Using the built-in microphone or externally connecting a microphone)
1Out(Stereo phone jack, 3.5mm/ 0.14”)
Digital I/O 3-pin terminal block, pitch 2.5mm(0.1”)
Auto Iris DC drive
Local Storage Micro SD/SDHC/SDXC memory card slot(for Class 6 card or above)
Connectors
TV-Out BNC connector(640 x 480 resolution)
LED Indicator 2 LEDs: Power, Status
General
Environment Temperature 0 °C ~ 50 °C (32 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)
Power Source 12VDC / PoE
Max. Power Consumption 7 W
Dimensions(L X WXH) 76 x 74.9 x 54.3mm(2.99” x 2.95” x 2.14”)(without lens)
Weight 321 g (0.71 lb.)
Regulatory CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/ PSE
PoE Power Supply Type End-Span
PoE Power Output Per Port 48VDC, 350mA. Max. 15.4watts
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O
control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm,
Text Overlay
Language
Arabic / Bulgarian / Czech /Danish /Dutch / English / Finnish / French /German /Greek /Hebrew / Hungarian /Indonesian /Italian /Japanese / Lithuanian /Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai/ Traditional Chinese / Turkish
Applications
Network Storage GV-NVR,GV-System, GV-Backup Center, GV-Recording Server
Smart Device Access GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
GV-EyeHDforiPad
Live Viewing IE,mobile phone
CMS Server support GV-Control Center, GV-Center V2,GV-VSM

Models
Models Iris Focal Length (mm) Maximum Aperture Image Format
GV-BX320D-0  DC Drive Auto Iris 3.1-8mm F/1.2  1/3
GV-BX320D-1  DC Drive Auto Iris 2.8-6mm F/1.3 1/3
