Geovision GV-FE4301 4 Megapixel Fisheye IP Camera

Geovision GV-FE4301 4MP Fisheye IP Camera is a great, indoor 360 degree or 180 degree panoramic surveillance system solution. The unit delivers real-motion video at up to 4 megapixel (2048 x 1944) high definition video surveillance and offers MJPEG or H.264 video streaming. The unit includes Electronic Day/Night, but otherwise is a low light Color IP Camera that also includes WDR range attributes for adverse lighting. The units are compact and unobtrusive, often unnoticeable yet still packed with loads of advanced technology. Great for applications requiring a more comprehensive viewing area users can Digitally PTZ in any direction both on live or recorded video. Additionally the units work great as part of a total IP Camera system such as with GV-NVR, 3rd party IP camera system via ONVIF or as a stand-alone security system thanks to on-board sd card recording.

Geovision GV-FE4301 Main Features:

• 4MP progressive scan CMOS
• Up to 15fps at (2048 x 1944) 4 Megapixel
• H.264 and MJPEG video compression
• Electronic Day/Night
• Wide Dynamic Range (WDR)
• Provides 360 and 180 degrees panorama surveillance
• Micro SD card slot (SD/SDHC) for local video storage
• Built-in Web server for monitoring through IE browser
• Alarm I/O, One alarm Input, One relay Output
• Two Way Audio, microphone and speaker
• Live Viewing and Playback from any angle and zoom level (multiple users)
• Virtual PTZ function, Auto Pan Function,
• Visual automation, Tampering alarm, Text overlay, Privacy Mask
• Web interface w/support for 31 languages
• ONVIF conformance
• 12VDC, 24VAC and PoE (IEEE 802.3af)
• Operating Temperature: 0 °C ~ 50 °C (32 °F ~ 122 °F)
• Dimensions:
• Hard-Ceiling Mount ø 160 x 47.66 mm (6.30” x 1.88”)
• Body In-Ceiling Mount ø 164 x 47.66 mm (6.46” x 1.88”)
• Cable Dimensions: Cable Length 1 m (3.28 ft.) Cable Diameter ø 8 mm (0.31“)
• Maximum Connector Dimensions: Diameter ø 28.5 mm (1.12”)
• Weight 650 grams (1.43 lbs.)

4 Megapixel 360 Fisheye / 180 Panoramic Surveillance:
Geovision GV-FE4301 4 Megapixel Fisheye IP Camera is a superb 360 degree video surveillance solution that offers high frame video and H.264 video compression. Including Digital Noise Reduction the Fisheye IP Camera delivers excellent low light performance for a color camera and also includes electronic Day/Night. The WDR range function allows this unit to work well in lobbies, retails stores and applications where adverse lighting might be an issue. In depth image controls also help fine tune video settings to provide optimal imaging in a wide range of conditions. Quality video surveillance for applications needing total coverage the units offer a specialized advantage for various security needs.

Intelligent Complete Surveillance:
Obviously these Fisheye Cameras offer complete area coverage, but they likewise give complete security operations and professional functions throughout. The complete set of video monitoring such as Digital PTZ control or Picture-in-Picture viewing to video playback from on-board recording with motion detection or search and export all via the built-in web browser interface. Built-in Speaker and Microphone enable high quality two way communication with AAC or G.711 codec. Users will also appreciate a well-developed IP camera with vast IT network protocol, multi-language and web browser support enable great flexibility. Geovision GV-FE4301 Fisheye IP Camera has proven a great choice for specialized coverage in a wide range of projects.

Great Design, Simple Installation and Easy Operation:

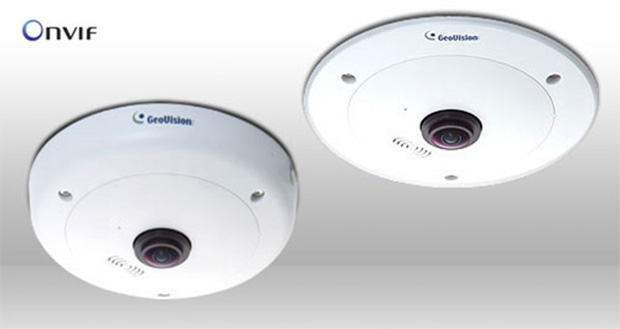

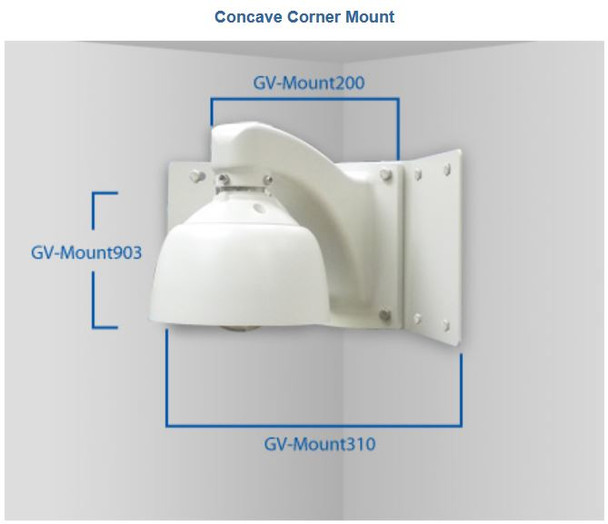

Delivered with a surface or recessed (in-ceiling) mount casing, the units are ultra-discreet and to most don't even resemble a security camera. The units are highly adaptable to all kinds of install needs with a large assortment of optional accessories enabling pendant mounts, wall mount brackets, dome covers to electrical box adapters. The device is also able to accept multiple power input choices including 12VDC, 24VAC or PoE (Power over Ethernet) making it highly adaptable to all types of install needs. ONVIF compliance promises third party IP camera system support while whether alone or as part of the Free GV-NVR software included, these modern security cameras introduce a truly next generation IP surveillance.

Packing List
1. Fisheye Camera
2. Camera Cover (Hard Ceiling Mount)
3. Screw (Hard Ceiling Mount) x 3
4. Plastic Screw Anchor x 3
5. Camera Cover (In-Ceiling Mount)
6. Screw (In-Ceiling Mount) x 3
7. Support Bracket x 3
8. Torx Wrench
9. GV-IPCAM H.264 Software DVD
10. GV-Fisheye IP Camera Quick Start Guide
11. GV-NVR Software DVD
12. GV-NVR Quick Start Guide

Last Updated March 18, 2015
