Geovision GV-FER3403 3MP Rugged IR Fisheye IP Camera

Geovision GV-FER3403 3MP Rugged IR Fisheye IP Cameras enable next generation 360 and 180 Panoramic Surveillance, Day or Night. Constructed with a 3 Megapixel HD CMOS sensor that is further enhanced by true day/night operation and an innovating IR LED Ring that ensures 360 degree night vision. Image enhancements including WDR and DNR further benefits users with optimal video clarity in all sorts of adverse lighting. The units build upon these powerful capture capabilities with thorough control of video settings such as optional MJPEG or H.264 streaming to shutter speeds, BLC, AW, and Defog and beyond. The device equally offers network protocol support to diverse security system functions. Able to offer stand-alone IP surveillance with full featured video management, everything from Digital PTZ in any viewing angle to local video storage via SD card is all possible. Countless benefits are found in every aspect of Geovision's GV-FER3403 IR Fisheye Security Cameras, perks like third party integration via ONVIF or numerous mounting options these are a fully professional security solution.

Geovision GV-FER3403 Main Features:

• 1/3.2" progressive scan CMOS
• Single stream from H.264 and MJPEG
• 15fps at (2048 x 1536) 3 Megapixel
• True Day/Night (w/ IR-cut filter)
• IR ring w/IR distance up to 10 meters (32.81 ft.)
• Local Video Storage via micro SD card slot (SD/SDHC)
• Superb 360° and 180° panorama viewing
• Any Viewing angle and zoom, by multiple users including playback
• Two-way audio w/Built-in Microphone and Speaker
• WDR (Wide Dynamic Range), 2DNR (Digital Noise Reduction), Defog
• Virtual PTZ function, Auto Pan Function, Digital Object Tracking
• Tampering alarm, Privacy mask, Visual automation, Text overlay
• Multi-Language (31) Web interface
• ONVIF (Profile S) Compliant
• Operating Temperature -30°C ~ 50°C (-22°F ~ 122°F)
• Weatherproof IP67 and IK10 Vandal Resistant Casing
• Power: 12VDC, 24VAC or PoE (IEEE 802.3af)
• IR LED ring: 12VDC (Includes Poe Adapter)
• Max. Power Consumption 22 Watts

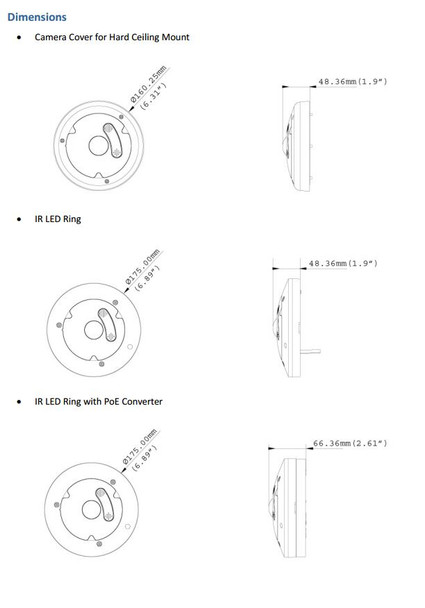

• Dimension Hard-Ceiling Mount (w/IR LED Ring) Ø 175mm x 48.36mm (6.89” x 1.93”)
• Cable Length 1 meter (3.28 ft.)
• Cable Diameter Ø 6.2mm (0.24”)
• Maximum Connector Diameter Ø 30mm (1.18”)
• Weight 960 grams (2.12 lbs.)

Superior Fisheye IP Surveillance:
Geovision GV-FER3403 Outdoor IR Fisheye Security Cameras deliver the latest in high performance 360 or 180 degree panoramic surveillance. The device features a 3 megapixel HD CMOS Sensor equipped with a mechanical IR Cut-filter and IR LED Night Vision for absolute video security in any lighting. Added enhancements like WDR, DNR and Defog to deep image controls allow optimal video performance easily adapted to all sorts of environments. Video Streaming in H.264 or MJPEG compression is selectable while comprehensive video configuration to Two Way Audio with integrated Microphone and Speaker are all included.

Intelligent Fisheye Surveillance:
The units have layers of technology that combine for a complete Fisheye IP Surveillance System within the IP camera alone. Total video management including Digital PTZ to on-board video storage (SD Card) and countless smart functions promise powerful video surveillance with diverse abilities. Built-in detection and alarm methods, notifications to search functions can also be achieved with the Geovision GV-FER3403 IR Fisheye IP Camera. Network IT Protocol support for example is also very capable, standards such as RTSP, QoS, UPnP, HTTPs, SNMP plus plenty more are provided. The device's web interface is well developed with a clean software interface that is packed with selections yet made easy to learn and simple to operate. Specialized attributes like Digital Object Tracking to Visual Automation further extend possibilities and compliance like ONVIF ensure third party systems can also take advantage of this fine product.

Smart Design, Flexible Installation:

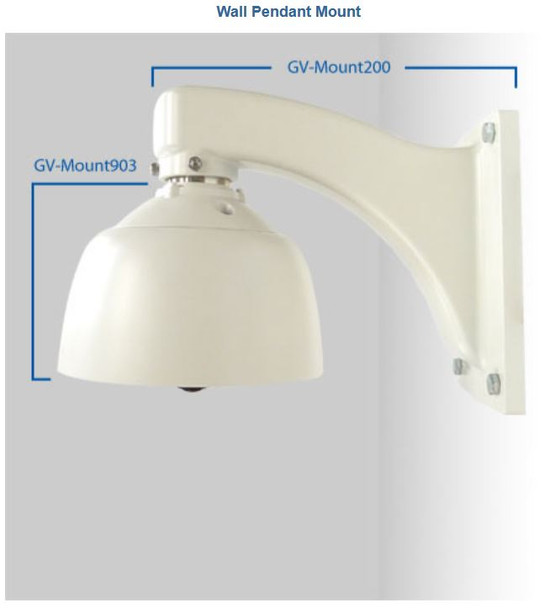

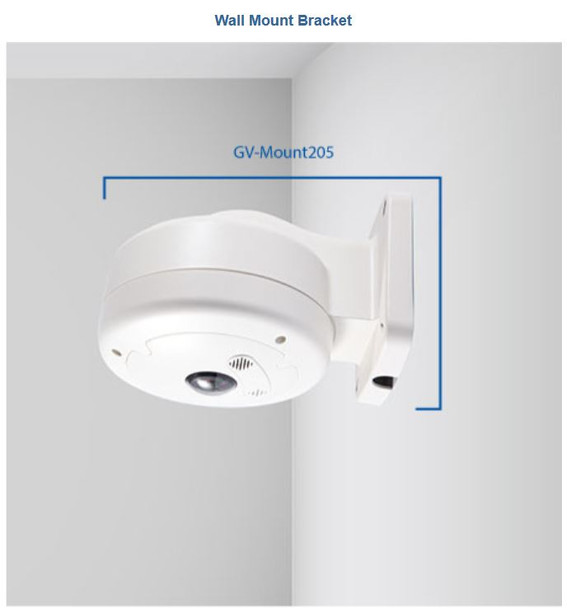

Built to adapt to a wide range of IP surveillance applications these Fisheye Security Cameras are well suited for even the toughest environmental conditions. Built to IP67 weatherproof standards the device is also able to operate in extremely low temperatures. The added IK10 High Impact, Vandal Resistant construction ensures maximum safety to the device further protecting your investment. Numerous mounting methods including both a surface and recessed camera case to various optional mounting brackets and adapters are available for perfect install customization. The Geovision GV-FER3403 Fisheye IR Camera additionally support for multiple power input sources from 12VDC or 24VAC to the most popular option, PoE. Truly capable, whether alone or as party of a complete security camera system, the GV-FER3403 is a top choice for professional security systems.



In the Box:

1. Fisheye Camera
2. Camera Cover (Hard Ceiling Mount)
3. Screw (Hard Ceiling Mount) x 3
4. Plastic Screw Anchor x 3
5. Camera Cover (In‐Ceiling Mount)
6. Screw (In‐Ceiling Mount) x 3
7. Support Bracket x 3
8. Torx Wrench
9. Waterproof Rubber
10. IR LED Ring
11. IR Power Adapter (DC 12V, 3.5A)
12. Power Cable
13. Terminal Block x 2
14. Installation Sticker
15. Silica Gel Bag and Adhesive Tape x 2
16. Cable Connector
17. Power Adapter (DC 12V, 1.25A)
18. GV-IPCAM H.264 Software DVD
19. GV-Fisheye IP Dome Hardware Installation Guide
20. GV-NVR Software DVD
21. GV-NVR Quick Start Guide

Last Updated March 21, 2015
