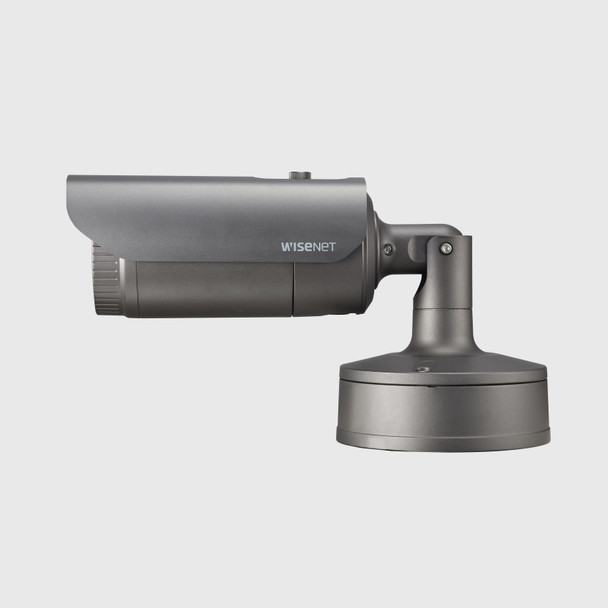

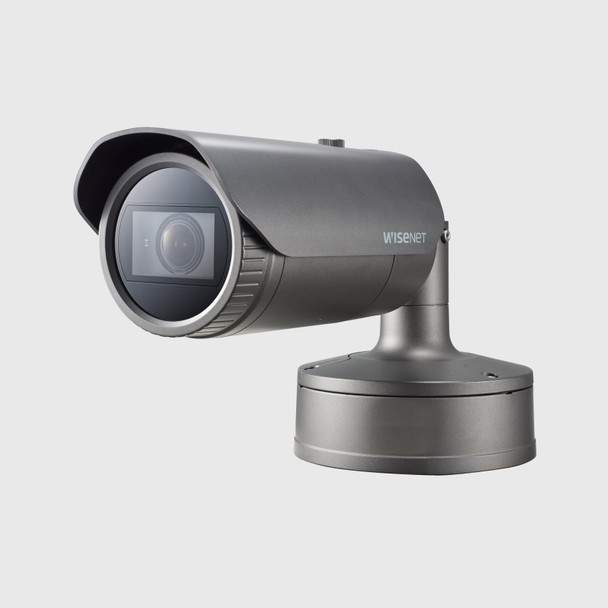

Hanwha (fka Samsung) PNO-A9081RLP 4K Low-Mid Speed Road AI LPR Bullet IP Security Camera

Hanwha (fka Samsung) PNO-A9081RLP 4K Low-Mid Speed LPR Bullet IP Security Camera is an innovative solution for pro-grade vehicle traffic monitoring, surveillance and security applications. The device boasts 4K Ultra HD resolutions that in combination with its built-in IR Night Vision, Image Enhancements like WDR and motorized lens afford the necessary video performance for high accuracy video content analysis. The unit's LPR (license plate recognition) plus additional AI powered video analytics to capture traffic data like vehicle type, color and brand support moderate speeds plus distance making it ideal for typical city or community streets and roads to entry ways and similar. Supporting intelligent traffic management demands to advantages for transportation safety, security or surveillance, there are numerous applicable scenarios while likewise there is diverse deployment options. With its rugged weatherproof, high impact casing, this IP security camera allows for everything from stand-alone operation to vast selections for integration and does so in compact, attractive build ready for harsh environments.

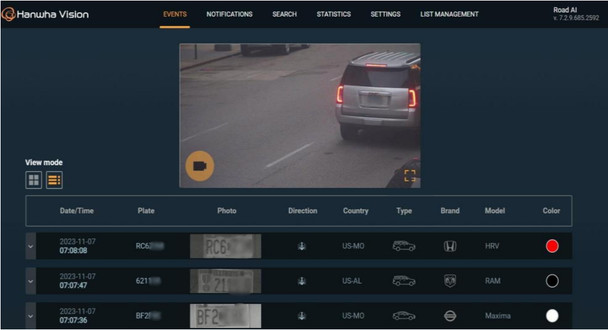

Hanwha (fka Samsung) PNO-A9081RLP 4K Low-Mid Speed LPR Bullet IP Camera yields the latest in superior LPR and MMCR traffic video analysis featuring Hanwha Road A.I. package. The unit further enables advanced operations directly from its web interface including plate character search to Traffic Statistics. Additionally, either via Hanwha NVRs or Wave VMS to 3rd party open-platform access to its metadata, the device is certainly suited for all sorts of custom system deployments. On-board pre-installed 32GB edge storage can maintain thousands of plate/vehicle snapshots while functions like Alarm I/O connectivity are also available to support a wide range of install requirements. Many other advantages exist to ensure optimal results, like a Gyro-sensor based Digital Image Stabilization function which is unique for security cameras of its class.

Hanwha PNO-A9081RLP 4K Low-Moderate Speed LPR Bullet IP Camera with Wisenet Road AI Technical Summary: Max. 4K resolution, 4.5~10mm(2.2x) M-Varifocal(4K) lens, 0.05Lux@F1.6 (Color), 0Lux (B/W, IR LED on), Day & Night(ICR), WDR(120dB), H.265, H.264, MJPEG codec, WiseStream III, POE+, IP66/67/IP6K9K, IK10+, NEMA4X, LPR / NPR / ALPR / ANPR + MMCR AI Engine Video Analytics, EDGE Storage, Built-in White/Black List, Plate Search, Traffic Statistic Dashboard on Web Interface

Hanwha PNO-A9081RLP Main Features:

• NOTICE: A2Z is an Authorized Provider of Hanwha Security Products! Most Online Retailers are not! Don't Risk your Warranty & Support!
• 4K resolution (3840x2160)
• 0.05Lux@F1.6 (Color), 0Lux (B/W, IR LED on)
• Motorized 4.5-10mm Lens
• Day & Night (ICR), WDR (120dB)
• IR Viewable Length 30m (98.42ft)
• H.265, H.264, MJPEG codec, WiseStream II
• Embedded / Edge A.I. Engine - No server or cloud connection needed
• Wisenet Road AI application (Pre-installed)
  -License Plate Recognition (LPR)
  -Make/Model/Color Recognition
  -Allow / Deny list notification

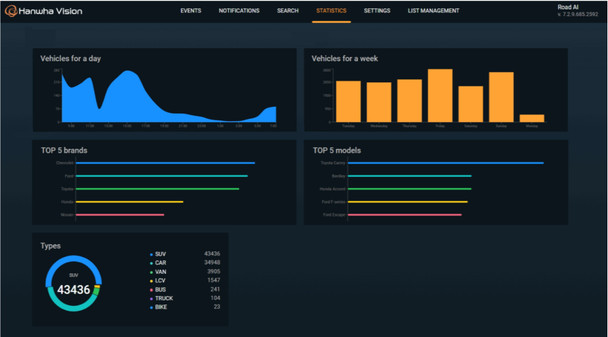

• Efficient Smart Search & Dashboard view (LP,
• Country/State, brand, model, color)
• Easy setup with wizard for optimal plate identification
• 32GB pre-installed Micro SD for up to 10,000 vehicle/plate images
• Alarm I/O Connections
• Weatherproof / High Impact: IP66/67/IP6K9K, NEMA4X / IK10+
• 12VDC or PoE+
• NDAA

Hanwha PNO-A9081RLP Specifications:

Video

Imaging Device 1/1.8" CMOS 8-Megapixel (4K) Sensor
Resolution 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720,
1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
Maximum
Framerate
H.265/H.264: Maximum 30fps
MJPEG: Maximum 30fps
Minimum
Illumination
Color: 0.03Lux (F1.2, 1/30sec) B/W:
0.003Lux (F1.2, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480 for installation
USB: Micro USB Type B, 1280x720 for installation

Lens
Focus Control Simple focus
Lens Type DC auto iris, P iris, Manual
Mount Type C mount, CS mount

License Plate Recognition
Stored Images Up to 10,000 local storage
Vehicle Recognition: Make: 70+ Model: 700+ Color 10 (MMCR)
Available Countries: USA, Canada, Mexico

Operational
Camera Title Displayed up to 85 characters
Day & Night Auto (ICR)
Backlight Compensation BLC, WDR, SSDR
Digital Noise Reduction SSNRV
Digital Image Stabilization Support (built-in gyro sensor)
Motion Detection 8ea, polygonal zones
Privacy Masking 6ea, rectangle zones
- Color: Gray/Black/White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view (90/270)
Analytics Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection
Alarm I/O Input 1ea / Output 1ea / DC 12V Power (Max. 50mA) 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers Alarm output
Handover, Audio playback
Audio In Selectable (microphone in/line in/Built-in microphone)
Supply voltage: 2.5VDC (4mA), Input impedance: 2K Ohm
Audio Out Line out, Maximum output level: 1Vrms

Network
Ethernet Metal shielded RJ-45 (10/100/1000 BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual (5ea area), WiseStreamⅡI
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast (6 users) / Multicast
Multiple streaming (Up to 3 profiles)
Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access log,
802.1X Authentication (EAP-TLS, EAP-LEAP) Device Certificate (Hanwha Techwin Root CA) Secure boot
Application Programming Interface:
-ONVIF Profile S/G/T
-SUNAPI (HTTP API)
-Wisenet open platform

General
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Pre-installed with industrial-grade 32GB Micro SD to support 10,000 LPR images
Memory 4096MB RAM, 512MB Flash

Environmental & Electrical
Operating Temperature / -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
Humidity
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Input Voltage PoE+ (IEEE802.3at), 12VDC
Power Consumption PoE+: Maximum 16.50W, typical 12.50W
12VDC: Maximum 13.50W, typical 10.80W

Mechanical
Color / Material Body: Dark Greg / Aluminum
Product Dimensions / Weight Ø91.0x368.6mm (3.58" x 14.51") (Without sunshield), Weight: 2.48Kg (5.47lb)
