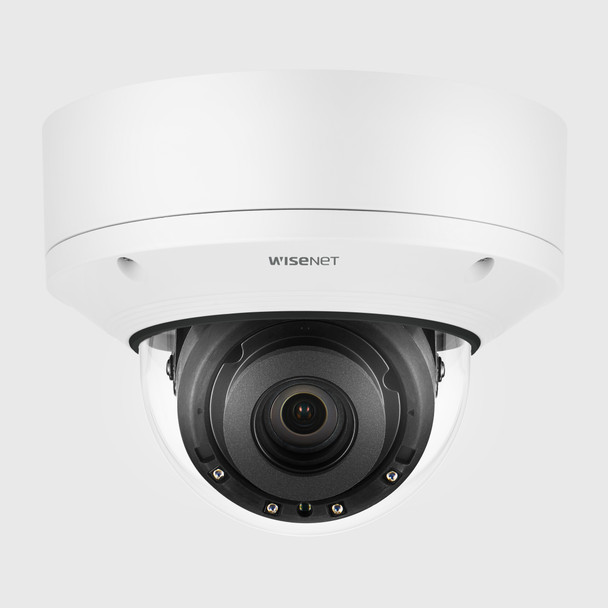

Hanwha (fka Samsung) PNV-A9081RLP 4K Low-Mid Speed LPR AI Vandal Dome IP Security Camera
- SKU:
- PNV-A9081RLP
- Shipping:
- Calculated at Checkout
Description
Hanwha (fka Samsung) PNV-A9081RLP 4K Low-Mid Speed LPR Vandal Dome IP Security Camera yields a new age in smart vehicle traffic monitoring and surveillance. Suited for community roads, city streets or other moderate speed applications the device achieves advanced video analysis at the edge for powerful, yet diverse deployment potential. Equipped with a large format, super low light 8-megapixel Sensor it grants impressive 4K Ultra HD video. Alongside this is a Motorized P-Iris Lens, IR Night Vision, Wide Dynamic Range to Digital Image Stabilization assuring superior image quality in all sorts of conditions. Many advantages can be realized whether it be its highly functional web interface to its flexible I/O connectivity or various mounting options. Built rugged, the device has a superior weatherproof rating while its High Impact Vandal Resistant design to other features like optional use Sun-shield only solidify its position as a unique Vandalproof LPR Security Camera.

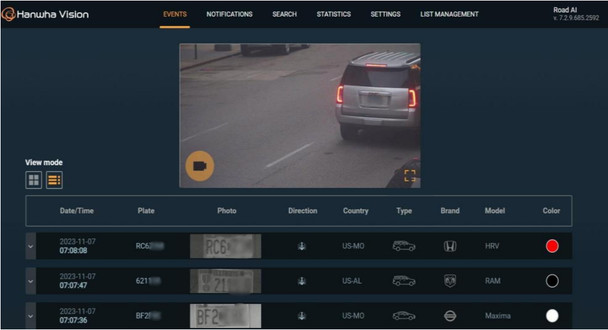

Hanwha (fka Samsung) PNV-A9081RLP 4K Low-Mid Speed LPR Vandal IR Dome IP Camera is benefitted by Hanwha's ROAD A.I. Video Analytics. These advanced AI algorithms achieve numerous types of metadata including LPR (license plate recognition) or aka NPR (Numeric Plate Recognition) as well as vehicle attributes like model, make and color all at the edge for a higher level of efficiency and expanding capabilities. The device can operate stand-alone including several advanced functions like plate search and traffic statistics within its web interface, mean-while the device is certainly built to support larger system designs including Hanwha NVRs or WAVE VMS as well as 3rd party systems. From a built-in wizard to various API or protocols setup to integration is supported in numerous manners allowing a wide set of possible installation requirements.
Hanwha PNV-A9081RLP 4K Low-Moderate Speed LPR Vandalproof Dome Wisenet Road AI IP Camera Technical Summary: Max. 4K resolution, 4.5~10mm(2.2x) M-Varifocal(4K) lens, 0.05Lux@F1.6 (Color), 0Lux (B/W, IR LED on), Day & Night(ICR), WDR(120dB), H.265, H.264, MJPEG codec, WiseStream III, 12vdc/POE+, Alarm & Audio I/O IP66/67/IP6K9K, IK10+, NEMA4X, LPR / NPR / ALPR / ANPR + MMCR AI Engine Video Analytics, EDGE Storage, Built-in White/Black List, Plate Search, Traffic Statistic Dashboard on Web Interface
Hanwha PNV-A9081RLP Main Features:
- NOTICE: A2Z is an Authorized Provider of Hanwha Security Products! Most Online Retailers are not! Don't Risk your Warranty & Support!
- 4K resolution (3840x2160)
- 0.05Lux@F1.6 (Color), 0Lux (B/W, IR LED on)
- P-Iris 4.5-10mm Varifocal Lens
- Day & Night (ICR), WDR (120dB)
- IR Viewable Length 30m (98.42ft)
- H.265, H.264, MJPEG codec, WiseStream II
- Embedded / Edge A.I. Engine - No server or cloud connection needed
- Wisenet Road AI application (Pre-installed)
-License Plate Recognition (LPR)
-Make/Model/Color Recognition
-Allow / Deny list notification - Efficient Smart Search & Dashboard view (LP, Country/State, brand, model, color)
- Easy setup with wizard for optimal plate identification
- 32GB pre-installed Micro SD for up to 10,000 vehicle/plate images
- Alarm I/O Connections
- Weatherproof / High Impact: IP66/67/IP6K9K, NEMA4X / IK10+
- 12VDC or PoE+
- NDAA
Hanwha PNO-A9081RLP Specifications:
Video
Imaging Device 1/1.8" CMOS 8-Megapixel (4K) Sensor
Resolution 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720,
1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
Maximum
Framerate
H.265/H.264: Maximum 30fps
MJPEG: Maximum 30fps
Minimum
Illumination
Color: 0.03Lux (F1.2, 1/30sec) B/W:
0.003Lux (F1.2, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480 for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focus Control Simple focus
Lens Type DC auto iris, P iris, Manual
Mount Type C mount, CS mount
License Plate Recognition
Stored Images Up to 10,000 local storage
Vehicle Recognition: Make: 70+ Model: 700+ Color 10 (MMCR)
Available Countries: USA, Canada, Mexico
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto (ICR)
Backlight Compensation BLC, WDR, SSDR
Digital Noise Reduction SSNRV
Digital Image Stabilization Support (built-in gyro sensor)
Motion Detection 8ea, polygonal zones
Privacy Masking 6ea, rectangle zones
- Color: Gray/Black/White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view (90/270)
Analytics Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection
Alarm I/O Input 1ea / Output 1ea / DC 12V Power (Max. 50mA) 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers Alarm output
Handover, Audio playback
Audio In Selectable (microphone in/line in/Built-in microphone)
Supply voltage: 2.5VDC (4mA), Input impedance: 2K Ohm
Audio Out Line out, Maximum output level: 1Vrms
Network
Ethernet Metal shielded RJ-45 (10/100/1000 BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual (5ea area), WiseStream II
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast (6 users) / Multicast
Multiple streaming (Up to 3 profiles)
Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access log,
802.1X Authentication (EAP-TLS, EAP-LEAP) Device Certificate (Hanwha Techwin Root CA) Secure boot
Application Programming Interface:
-ONVIF Profile S/G/T
-SUNAPI (HTTP API)
-Wisenet open platform
General
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Pre-installed with industrial-grade 32GB Micro SD to support 10,000 LPR images
Memory 4096MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / -10°C ~ 55°C (14°F ~ 131°F) / Less than 90% RH
Humidity
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Input Voltage PoE+ (IEEE802.3at), 12VDC (OPTIONAL 24V AC Module Available MOQ 10pcs)
Power Consumption PoE+: Maximum 16.50W, typical 12.50W
12VDC: Maximum 13.50W, typical 10.80W
Mechanical
Color / Material Body: White RAL9003 / Aluminum
Product Dimensions / Weight: Ø180x125mm (7.09x4.92"), Weight: 1.90Kg (4.19lb)
