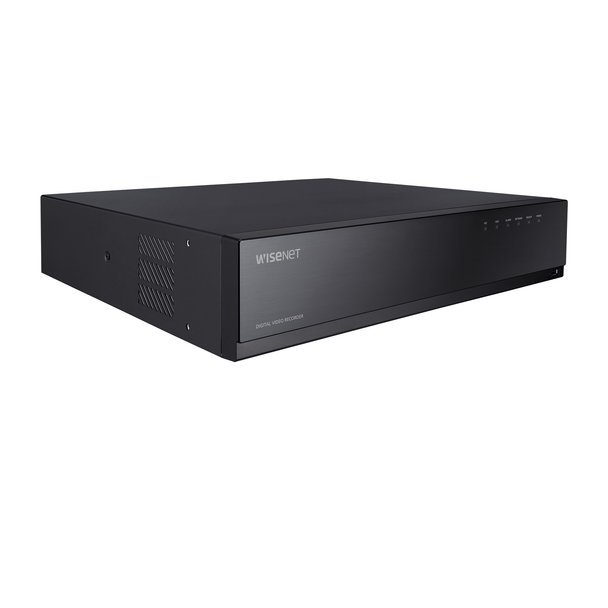

Hanwha (FKA Samsung) HRX-1635 16ch HD CCTV Hybrid Digital Video Recorder

Hanwha (FKA Samsung) HRX-1635 16ch Hybrid DVR is a flagship of the Hanwha Digital Video Recorders which offers a versatile, full featured, high performance and high-capacity video security solution. Supporting up to a total of 18 channels, the device adds 2 channels for IP cameras only, while all other 16 channels provide mixed support of traditional Analog CCTV, new HD CCTV or IP Security Cameras in any combination. Furthermore, advantages like up to 8-megapixel (4K) resolution per channel, efficient H.265 and H.264 encoding plus support for up to 48TB of on-board storage promise top of the line, modern capabilities. The Hanwha HRX-1635 Digital Video Recorder grants the ideal solution for those looking to migrate or upgrade existing CCTV systems including analog CCTV or HD CCTV types. Mean-while the hybrid DVR also empowers all sorts of new, custom system designs with professional standards including ONVIF (universal IP cam support) to the leading HD CCTV formats of TVI, CVI and AHD.

Hanwha HRX-1635 16ch DVR is fully equipped for diverse system device integrations as well as both local and remote monitoring capabilities. Locally, the device provides HDMI output at up to 4K for local displays and also offers VGA and spot monitor support. Ample connections for Audio and Alarm I/O are present, while other interfaces like RS-485 (PTZ control) to USB ports ensure the full range of pro functions are achievable. In addition to its user-friendly GUI on the local display, the HRX-1635 DVR allows comprehensive remote monitoring. Including Web Browser interface, Hanwha Wisenet Viewer (PC / MAC / Linux Software) and Wisenet Mobile Apps all forms of remote viewing are available. Furthermore, connection to Wisenet Software and Mobile apps has never been easier, thanks to the new P2P (QR code) connection method. NDAA and FCC compliant, the Hanwha HRX-1635 recorder is ready to serve the most demanding and sensitive sites with truly professional video security.

Hanwha HRX-1635 DVR Product Summary:
5-in-1 16CH Pentabrid DVR, AHD, HDTVI, HDCVI (up to 8MP), Total 18CH (Analog Maximum 16CH and 2 Network Maximum 18CH), Analog Camera up 8MP (15/12fps), 5MP (20/12fps), 4MP (30/25fps), 2MP (30/25fps),1MP (30/25fps), 960H (or 720H) (30/25fps) * per CH and Network camera 2MP (480fps). Codec H.265/H.264/MJPEG, Recording Bandwidth Max. 128Mbps, Playback Bandwidth 32Mbps. 4CH audio input/ 1CH audio output, 16 alarm input and 4 relay output, coaxial control, HDMI/VGA video output, 1 X spot monitor output, QR code, up to 8 SATA HDDs (6TB/HDD). NDAA & FCC Compliant Model.

Hanwha HRX-1635 DVR Product Features:

• 5-in-1 16CH Pentabrid DVR
• AHD/HDTVI/HDCVI/CVBS/IP inputs
• Total 18 Channels (Analog Maximum 16 channels + Network Maximum 2-18 channels, depending on number of analog channels), up to 8MP
• H.265, H.264, MJPEG codec
• Recording Analog Camera up 8MP (15fps), 5MP (20fps), 4MP (30fps), 2MP (30fps),1MP (30fps), 960H (or 720H) (30fps), per channel
• Recording Bandwidth Max. 128Mbps, Playback Bandwidth 32Mbps.
• 4 channel audio input/ 1 channel audio output, 16 alarm input and 4 relay output
• Coaxial control
• Up to 8 SATA HDDs (6TB/HDD)
• HDMI/VGA video output, 1 X spot monitor output
• P2P service (QR code connect) for easy Wisenet Viewer / Wisenet Mobile app connection
• NDAA & FCC Compliant
