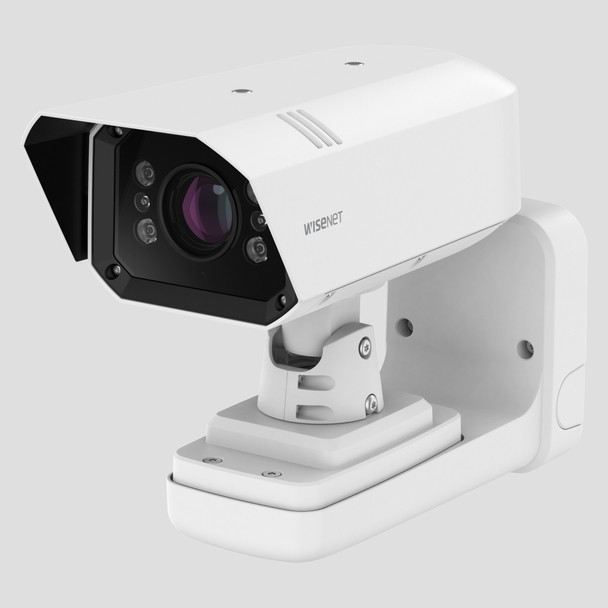

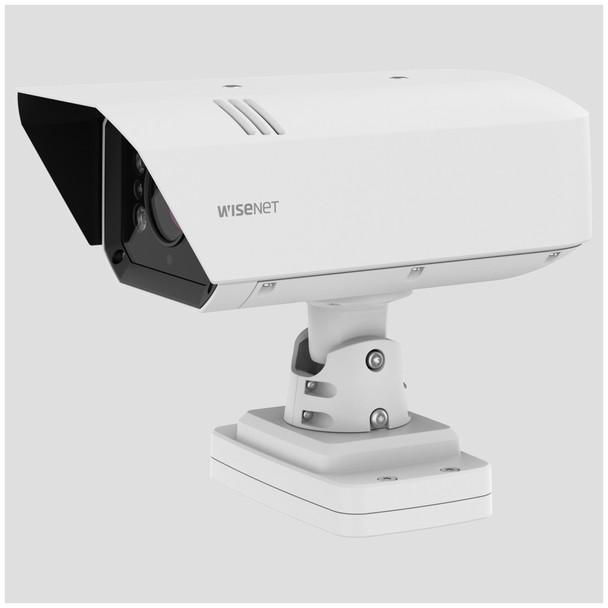

Hanwha TNO-7180RLP 3MP High-speed Road AI LPR IR Bullet IP Security Camera

Hanwha TNO-7180RLP 3MP High-speed Road AI LPR IR Bullet IP Security Cameras are new, high-end solution for professional transportation and traffic management demands. The device includes core components which set it apart from others such as its Global Shutter Large format Image Sensor and high optical zoom lens. This and of course other advantages such as enhanced image processing to powerful IR illumination combine to not only provide superb video quality, but especially to achieve high-speed performance for the most demanding roadways. Supporting speeds of up to about 125mph, the device is fully ready for highways, freeways, toll roads and the likes which demand high speed traffic monitoring. Furthermore, diverse deployment options supporting everything from stand-alone operation to integration with Hanwha WAVE VMS or 3rd party systems is all achievable. Layers of benefits can be realized in numerous aspects from on-board security standards like TPM 2.0 or FIPS 140-2 Level 2 to extensive IT network protocols. Certainly, the device includes a robust weatherproof design with a wide operating temperature for use in nearly any environment, but further it features a high impact IK10 vandal-resistant design that also offers flexible power input including new PoE++ and flexible mounting including optional pole mount, wall mount or pedestal mount adapters.

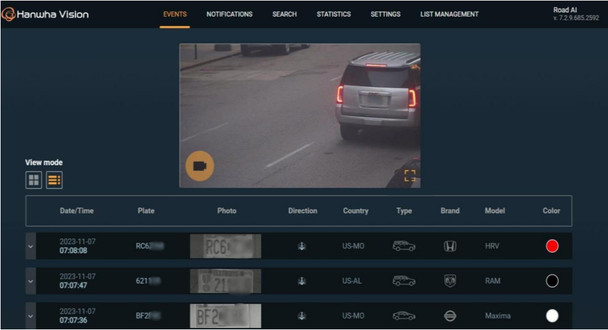

Hanwha (fka Samsung) TNO-7180RLP 3MP High-speed Road AI LPR IR Bullet IP Cameras are built to generate high quality metadata in the most demanding of traffic applications. The Hanwha Road AI Engine supplies not only high accuracy ALPR (Automatic License Plate Recognition) or ANPR (Automatic Numeric Plate Recognition) the unit further provides support for identifying numerous vehicles makes, hundreds of models to general characteristics like color. Its well-developed web browser interface can enable stand-alone operation with built-in functions like Smart search, traffic statistics dashboard to white/black list with alarm trigger for a highly adaptable device. From automated notifications to historical investigations, its abilities are truly satisfying to end users and installers alike. In fact, aspects like its built-in plate wizard for optimal setup to completely different factors like Alarm I/O, Audio I/O or RS-485 interface simply expand the devices potential to seemingly endless limits for possible uses. Constructed to NDAA compliant standards from one of the worlds most trusted security vendors, this LPR Camera has few rivals which can even compete.

Hanwha TNO-7180RLP High Speed Global Shutter IP Camera with Road AI Technical Summary: 3MP, Max 60fps @3MP, GLOBAL SHUTTER Sensor, 6.8~1220mm (18x) motorized varifocal lens, 32GB industrial Micro SD, Embedded Wisenet Road AI application, Adaptive IR, IP66, IK10, NEMA 4X, NEMA TS. 12V or PoE++, LPR / NPR / ALPR / ANPR + MMCR AI Engine Video Analytics, EDGE Storage, Built-in White/Black List, Plate Search, Traffic Statistic Dashboard on Web Interface

Hanwha TNO-7180RLP Main Features:

• NOTICE: A2Z is an Authorized Provider of Hanwha Security Products! Most Online Retailers are not! Don't Risk your Warranty & Support!
• 3MP, Color GLOBAL SHUTTER Sensor
• 6.8~120mm(18x) motorized varifocal
• H.265, H.264, MJPEG codec
• Maximum 60fps@3MP all resolutions (H.265, H.264, MJPEG)
• Edge Storage Pre-installed with 32GB Micro SD to support 10,000 LPR images
• WiseStream II support
• IR Viewable Length 50m(164.04ft)
• IP66, IK10, NEMA 4X, NEMA TS 2(2.2.8, 2.2.9)
• Wisenet Road AI application (Pre-installed)
  - License/Number Plate Recognition
  - Make/Model/Color Recognition
  - Black/White list notification
  - Smart Search (LP/NP, Country, brand, model, color)
• HPoE, 12VDC Power Input
• NDAA - TAA

Hanwha TNO-7180RLP Specifications:

Video
Imaging Device 1/1.8" Low Light 3-Megapixel CMOS Sensor, Global shutter
Resolution
3MP: 2048x1536, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576,
720x480, 640x480, 640x360, 320x240
2MP: 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480,
640x480, 640x360, 320x240
Max. Framerate
3MP: H.265/H.264: Max. 55fps/50fps(55Hz/50Hz), MJPEG: Max. 5fps(55Hz/50Hz)
2MP: H.265/H.264: Max. 60fps/50fps(60Hz/50Hz), MJPEG: Max. 5fps (60Hz/50Hz)
Min. Illumination Color 0.1 Lux (1/30sec, gain 48dB)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation

Lens
Focal Length (Zoom Ratio) 6.8~120mm(18x) motorized varifocal
Max. Aperture Ratio F1.6(Wide)~F4.13(Tele)
Angular Field of View H: 54.5º(Wide)~3.4º(Tele), V: 42.3º(Wide)~2.5º(Tele)
Min. Object Distance 2m (6.5ft)
Focus Control Simple focus, Focus save
Lens Type DC auto iris

Operational
Camera Title Displayed up to 85 characters
Day & Night Auto (ICR)
Backlight Compensation BLC, SSDR
Digital Noise Reduction SSNRV
Digital Image Stabilization not support
Defog Not Support
Motion Detection 8ea, polygonal zones
Privacy Masking 6ea, Rectangle zones
- Color: Grey/Green/Red/Blue/Black/White
Gain Control Support
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Not Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/25 ~ 1/12,000sec) / Global Shutter mode
Video Rotation Flip, Mirror

Analytics
Analytics events
- Motion detection, Tampering, Virtual line (Crossing/Direction), Virtual Area (Loitering/Intrusion/Enter/Exit, Appear/Disappear)
Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O 4 configurable I/O ports

Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events
When alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: NAS recording at event triggers
- Alarm output
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
Audio In Selectable (mic in/line in)
Audio Out Line out
IR Viewable Length WiseIR 50m (164ft)

NETWORK
Ethernet RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual (5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast (20 users) / Multicast
Multiple streaming (Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security: HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access log, 802.1X Authentication (EAP-TLS, EAP-LEAP), Device Certificate (Hanwha Techwin root CA), Secure boot/OS/Storage, Verify firmware forgery, TPM 2.0 with FIPS 140-2 level2
Application Programming Interface: ONVIF Profile S/G/T, SUNAPI (HTTP API), Wisenet open platform v3.60

GENERAL
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer:
-Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
-Recommended Browser: Google Chrome
-Supported Browser: MS Explore11, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari (Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 1slot (32GB Card preinstalled)
Memory 2048MB RAM, 256MB Flash

Environmental & Electrical
Operating Temperature / Humidity
Normal: -40°C~+55° (-40°F ~ +131°F) / Intermittent: -40°C~+60°C (-40°F ~ +140°F)
Cold start: -40°C
Maximum Temperature based on NEMA-TS 2(2.2.7): +74°C(+165°F)
Less than 95% RH(Non-condensing)
Storage Temperature / Humidity -50°C~+60°C / Less than 95% RH(Non-condensing)
Certification: IP66, IK10, NEMA 4X, NEMA TS 2(2.2.8, 2.2.9)
Input Voltage HPoE (IEEE802.3bt type3, Class6), 12VDC
** HPoE injector not included
Power Consumption PoE: Max 50W, Typical 27W
12VDC: Max 47.5W, Typical 25W

Mechanical
Color / Material White/Aluminum
RAL Code RAL9003
Product Dimensions / Weight W186.9 x D293.7 x H259.3 (mm) / 4.8kg (10.5 lb.)

Wisenet Road AI LPR/ANPR/MMCR - Applicable Suited Deployment Parameters
Solution City Traffic Observation Highways
Speed Description Regular Speed High Speed
Lane Coverage Up to 2 lanes Up to 2 lanes
Speed limit Up to 120kmh (75mph) for 2 lanes Up to 200kmh (125mph) for 2 lanes
Min. Forward Distance 16m (52ft) 27m (90ft)
Max. Forward Distance 46m (150ft) 46m (150ft)
Max. Horizontal Angle 25° 15°
Max. Vertical Angle 25° 15°
Horizontal Offset Up to 7m (24ft) Up to 4m (12ft)
Camera Height Up to 7m (24ft) Up to 7m (24ft)
Vehicle Recognition Make: 70+ Make: 70+
Model: 600+ Model: 600+
Color: 10 Color: 10
