KT&C KPC-DNE100NUV18 IR Dome Security Camera 700TVL

KT&C KPC-DNE100NUV18 IR Dome Security Camera is a highly advanced indoor dome security camera equipped with the latest surveillance technology and a variety of professional features. The KT&C KPC-DNE100NUV18 Infrared CCTV Dome Camera produces stunning 700TVL High Resolution Video Surveillance. The unit further includes advanced selectable image enhancements such as ATR, DNR or HLC while also providing various general image settings for easily adapting to a range of indoor applications. This KT&C Dome Camera is built with 30 integrated IR LEDs and features true day/night operation for absolute coverage anytime.

The KT&C KPC-DNE100NUV18 IR Dome Security Cameras also include a 2.8-12mm varifocal lens and 3 axis camera adjustment to ensure easy and effective installation. The IR dome cameras are also designed with an extra monitor output terminal for easy servicing while also including an OSD (on screen display) for full camera configuration. In addition to all of these superb qualities, the KT&C KPC-DNE100NUV18 IR Dome Camera is a dual voltage camera allowing it to easily be installed as part of 24VAC or 12VDC CCTV Camera Systems.

KT&C KPC-DNE100NUV18 Main Features:

1/3”960H Interline CCD

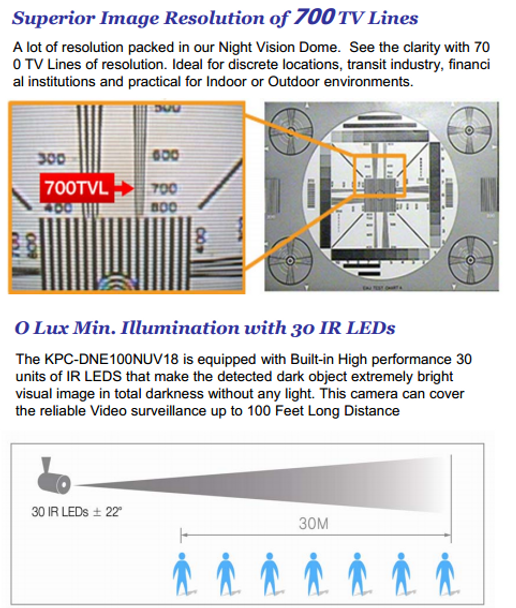

• 700TVL Horizontal Resolution
• Varifocal - 2.8 ~12.0mm
• True Day & Night (ICR) W Built-in 30 IR LEDs
• Fast Shutter Speed (1/60 ~ 1/100,000 sec)
• 2D Digital Noise Reduction (2D DNR)
• Adaptive Tone-curve Reproduction (ATR)
• Back Light Compensation (BLC)
• Highlight Compensation (HLC)
• 4-Zone Privacy Masking
• 4-Zone Motion Detection
• Mirror /Brightness / Contrast / Sharpness / HUE/ Gain
• On Screen Display (OSD) Menu
W/ Multi Language Support
• DC 12V / AC 24V Dual Power
• Multi-Language OSD
• Monitor Output Terminal for Easy Servicing

KT&C KPC-DNE100NUV18 Specifications:

Signal System NTSC PAL
Image Sensor 1/3“ 960H Interline CCD
Scanning System 2:1 Interlace
Horizontal Resolution 700TV Lines
Scanning Frequency (H) 15.734 KHz 15.625 KHZ
Scanning Frequency (V) 59.94 Hz 50 Hz
Total Pixels 1020(H) x 508(V) 1020H) x 596(V)
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
Synchronization Internal
Lens Size Varifocal - 2.8 ~12.0 mm
S/N More than 50dB (AGC Off)
Gamma R=0.45
Min. Illumination 0 Lux (IR LED On)
Shutter Speed 1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec
Day & Night True Mechanical Day & Night (ICR)
IR LED 30 IR LED’s, 850nm (IR Wavelength), Max. 100ft (IR Distance)
IR LED Operation On : 1 Lux, Off : 3 Lux
Video Output Level 1Vp-p Composite (75?)
Function
On-Screen Display (OSD) Built-in (Inner Key / Joystick)
BLC Off / BLC / HLC
2DNR On / OFF (Level Adjustable)
ATR On / OFF (Level Adjustable)
White Balance ATW / Push / User1 / User2 / Anti CR / Manual / Push-lock
Privacy Masking 4 Zones
Mirror On / Off
Motion Detection 4 Zones
Other Function Brightness / Contrast / Sharpness / HUE / Gain
Language Option English / Japanese / German / French / Russian / Portuguese / Spanish
Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Storage Temperature -20 °C ~ 60 °C (-4 °F ~ 140 °F)
Humidity Less than 80%RH
Power Supply 12VDC ±10% (Max. 450mA) / 24VAC ±10% (Max. 5.5W)

.
