KT&C KPC-N851NUF Long Range IR Bullet Security Camera 700TVL

KT&C KPC-N851NUF IR Bullet Security Camera delivers superior High Resolution, long range IR Night vision surveillance. Equipped with a Sony Exview HAD CCD II the unit provides 700tvl high resolution and offers a variety of the latest image enhancements for superb image clarity. Image enhancements such as High light Compensation (HLC), Digital Noise Reduction (DNR), Adaptive Tone-Curve Reproduction (ATR) and a wide selection of image settings allow the camera to perfectly adapt to countless applications. The KT&C KPC-N851NUF Infrared Bullet Camera features True Day/Night operation and has 100 IR LEDs integrated on-board for superior long range IR Illumination up to 200ft. The KPC-N851NUF provides excellent outdoor operation with an IP65 weatherproof rating and a unique Air-Circulation System for cooling the Camera and IR LEDs.

Designed with cable feed through mount and sun-shield the unit is fully outdoor ready while also available is a heater version for extended temperature range. Simple installation is assisted with the externally adjustable 5-50mm Varifocal Lens, second video output and OSD Menu. The KT&C IR Bullet Security Camera KPC-N851NUF provides a wealth of camera functions including Motion detection and privacy masking to adjustable IR Illumination. The KT&C KPC-N851NUF CCTV IR Bullet Camera is a powerful outdoor surveillance solution providing absolute day and night coverage to any Security Camera System.

KT&C KPC-N851NUF Main Features:

• 100 Units of IR LED for range of 200ft
• 1/3” 960H Interline CCD
• 700TVL Horizontal Resolution
• Superior Weatherproof design with IP65 and Air-Circulation System
• Varifocal (5.0~50mm) External Zoom & Focus Adjustable
• True Mechanical Day & Night
• Fast Shutter Speed (1/60 ~ 1/100,000 sec)
• Adaptive Tone-curve Reproduction (ATR)
• Back Light Compensation (BLC)
• Highlight Compensation (HLC)
• 4 Zone (Privacy Masking / Motion Detection)
• Mirror / Brightness / Contrast / Sharpness / HUE / Gain
• Multilingual On Screen Display (OSD) Menu
• Second Video Output Terminal for Easy Servicing
• AC 24V

Optional heater

KT&C KPC-N851NUF Specifications:
Signal System NTSC PAL
Image Sensor 1/3“ 960H Interline CCD
Scanning System 2:1 Interlace
Horizontal Resolution 700TV Lines
Scanning Frequency (H) 15.734 KHz 15.625 KHZ
Scanning Frequency (V) 59.94 Hz 50 Hz
Total Pixels 1020(H) x 508(V) 1020H) x 596(V)
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
Synchronization Internal
Lens Size 5 ~ 50mm, External Control Zoom and Focus
S/N More than 50dB (AGC Off)
Gamma r = 0.45
Min. Illumination 0 Lux (IR LED On)
Shutter Speed 1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec

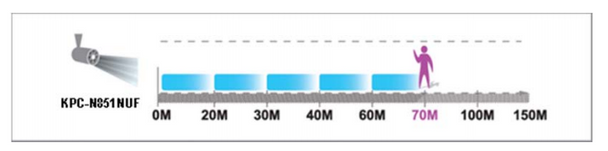

IR LED 100 ea., up to 70m
IR LED Operation On (1 Lux), Off (3 Lux)
Day & Night True Mechanical Day & Night (ICR)
Video Output Level 1Vp-p Composite (75?)
IP Rating IP65 (Weather-Resistant)
Function
On-Screen Display (OSD) Built-in (Inner Key / Joystick)
BLC Off / BLC / HLC
2DNR On / OFF (Level Adjustable)
ATR On / OFF (Level Adjustable)
White Balance ATW / Push / User1 / User2 / Anti CR / Manual / Push-lock
Privacy Masking 4 Zones
Mirror On / Off
Motion Detection 4 Zones
Other Function Brightness / Contrast / Sharpness / HUE / Gain
Language Option English / Japanese / German / French / Russian / Portuguese / Spanish
Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
Storage Temperature -20 °C ~ 60 °C (-4 °F ~ 140 °F)
Dimension (mm) 115.2 F x 164.5mm
Power Supply AC 24V ±10% (Max 24W)
