KT&C KPC-WDR7000NU WDR Day/Night Security Camera 700TVL

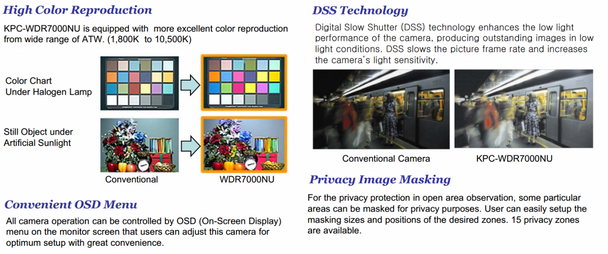

KT&C KPC-WDR7000NU Day/Night Security Camera is a marketing leading CCTV box style camera developed with the latest features and advancements in CCTV surveillance. These KT&C Security Cameras utilize the 1/3" SONY Double Scan Super HAD CCD II for ultra-high resolution 700TVL imaging and super true Wide Dynamic Range function. The KT&C KPC-WDR7000NU Camera is also equipped with other image enhancements like digital slow shutter (DSS) and 3D Digital Noise Reduction (3D DNR) for absolute video clarity.

The Box style camera supports dual voltage input and C or CS mount style lenses. More intelligent functions include motion detection, face detection and privacy masking which along with other camera settings are all configurable via the OSD menu of the cameras. The KT&C KPC-WDR7000NU WDR Day/Night Security Camera is a sure choice for the highest performance in CCTV Security Camera Systems.

KT&C KPC-WDR7000NU Main Features.

• 1/3" 960H SONY Double Scan Super HAD CCD II
• 700TVL Horizontal Resolution

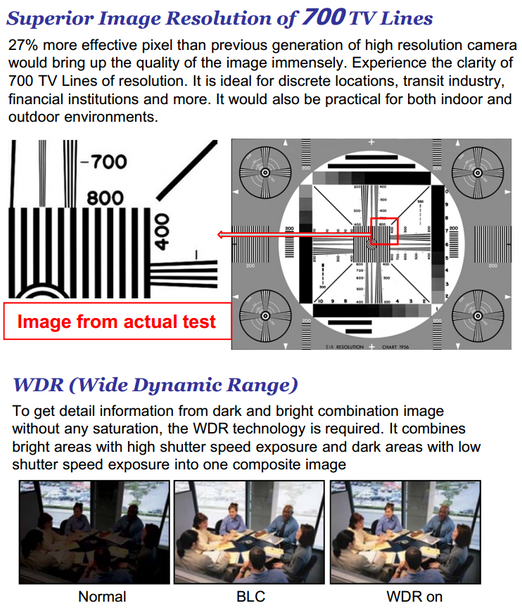

• WDR – Wide Dynamic Range
• True Day & Night (ICR)
• C/CS Mount Lens (lens sold separately)
• Fast Shutter Speed (1/60 ~ 1/100,000 sec)
• 3D Digital Noise Reduction (3D DNR)
• Back Light Compensation (BLC)
• 15-Zone Privacy Masking
• Motion Detection
• Brightness / Contrast / Sharpness / HUE/ Gain
• multilingual On Screen Display (OSD) menu
• AC 24V / DC 12V Dual Power

Model KPC-WDR7000NU
Signal System NTSC PAL
Image Sensor 1/3" 960H SONY Double Scan Super HAD CCD II
Scanning System 2:1 Interlace
Horizontal Resolution 700TV Lines
Scanning Frequency (H) 15.734 KHz 15.625 KHZ
Scanning Frequency (V) 59.94 Hz 50 Hz
Total Pixels 1028(H) x 508(V) 1028(H) x 596(V)
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
Synchronization Internal
Lens C/CS Mount (DC / VIDEO)
Lens Type Manual/ DC
S/N More than 50dB (3DNR On)
Gamma r = 0.45
Min. Illumination 0.08 Lux (Color) / 0.04Lux (B/W) (30 IRE@F1.4, AGC High)
Shutter Speed 1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec
Day & Night True Mechanical Day & Night (ICR)
Day & Night Function Auto / Color / BW
Video Output Level 1.0 Vp-p Composite (75?)
Function
(Built-in On-screen Display)
WDR On / Off (Level Adjustable)
BLC Off / On (Level Adjustment, Area Selection)
3DNR On / Off (Level Adjustable)
AGC Low / Mid / High
White Balance ATW / PUSH / PUSH-LOCK / MANUAL (R Gain, B Gain)
Privacy Masking 15 Zones (Area Adjustment)
Face Detection On / Off (Level Adjustable, Area Adjustment)
Motion Detection On / Off (Level Adjustable, Area Adjustment)
Digital Slow Shutter OFF, 2~128 Field
Language Option English, Chinese, German, Russian, Spanish
Operating Temperature 14°F ~ 122°F (-10°C~ + 50°C)
Storage Temperature -4°F ~ 140°F (-20°C~ + 60°C)
External Control RS 485
Power Supply
DC12V : DC12V ±10% Max. 210 mA
Dual : DC12V ±10% Max. 270 mA / AC24V ±10% Max. 3.9 W
