KT&C KPC-LP751NU 700TVL License Plate Capture LPR Camera

KT&C KPC-LP751NU License Plate Capture Camera is a market leading High Contrast License Plate Camera for true LPR systems. The KT&C KPC-LP751NU CCTV Camera is built on the latest Sony Exview HAD CCD II for superior High Resolution 700TVL and powerful image enhancements. The Camera provides ultra sharp vehicle plate capture at distances to 65ft and speeds to 75mph. an integrated varifocal 5-50mm Lens enables easy camera installation. Further benefits include the OSD Menu and Installation Mode function further enables easy setup of the unit.
KT&C KPR-LP751NU LPR Camera is the ideal choice for License Plate Recogonition Systems and its optimized and purpose built design help optimize accuracy. The KT&C License Plate Capture camera is built in rugged IP67 Weatherproof bullet style casing. This security or LPR camera further includes integrated sun-shield, cable management bracket and a heater for extended operating temperatures. The KT&C KPC-LP751NU LPR Camera  is a professional choice for advanced surveillance and License Plate Recogonition Systems.


KT&C KPC-LP751NU Main Features:

• 1/3" 960H SONY EXview HAD CCD II
• 700 TVL Resolution Superior High Resolution
• License plate up to 16ft ~ 65ft (5.0M ~ 20.0M)
• License Plate capture at speeds up to 75mph

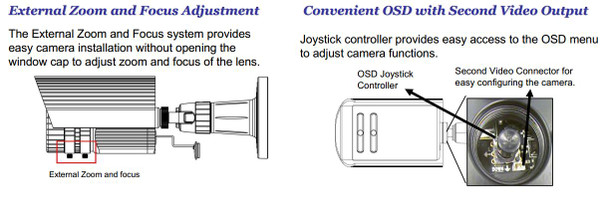

• 5.50mm Varifocal DC Auto Iris Lens, Externally Adjustable
• Special filter and IR LED provides maximum legibility under headlight glare
• Weatherproof (IP67) Cable Feed Through Bracket, Sun-shield and Heater
• AC24V (DC model special request)

KT&C KPC-LP751NU Specifications:

Power Consumption:
Signal System NTSC PAL
Imaging Device 1/3? 960H SONY EXview HAD CCD ?
Scanning System 2:1 Interlace
Scanning Frequency (H) 15.734 KHz 15.625 KHZ
Scanning Frequency (V) 59.94 Hz 50 Hz
Total Pixels 1020(H) x 508(V) 1020H) x 596(V)
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
Synchronization Internal
Horizontal Resolution 700 TV Lines
S/N Ratio More Than 50dB
Min. Illumination LED On : 0 Lux
Video Output Level 1Vp-p Composite(75?)
Image Display BW
Lens Size f = 5.0~50.0mm (F1.4) Varifocal Auto Iris Lens
IR LED 850 nm, Hi Power LED, 10EA
Function
OSD Built-in
Mode Installation / License plate
Negative Image On / Off
Shutter Speed 1/3000 sec (Adjustable)
IP Rating IP67
Operating Temperature 14°F ~ 122°F (-10? ~ 50?)
Heater On : -40°F ~ 122°F (-40? ~ 50?)
Storage Temperature -4°F ~ 140°F (-20? ~ 60?)
Weight 3.0lb / 1.37kg
Dimension (mm) 98.6(W) x 83(H) x 126(D)
Power Consumption Standard AC Model:
AC24V (±10%), Max. 9W (Without Heater)
AC24V (±10%), Max. 20W (With Heater)
DC Model special Request:
DC12V (±10%), Max. 700mA (Without Heater)
DC12V (±10%), Max. 1.6A (With Heater)
