KTNC

KTNC K9-A400 4 channel 960H DVR 120fps

Write a Review
SKU:
K9-A400
  • KTNC K9-A400 4 channel 960H DVR 120fps Real-time
  • KTNC K9-A400 4ch 960H DVR System Front Panel

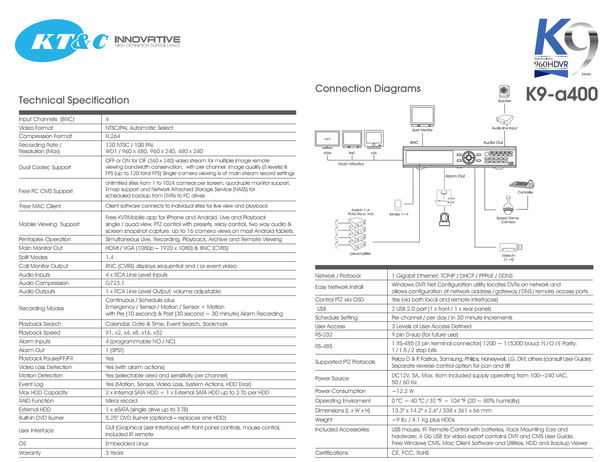

  • KTNC K9-A400 DVR Spec
  • KTNC K9-A400 DVR measurements
  • KTNC K9-A400 DVR physical connection/function diagram
No Longer Available - Contact Us

Description

KTNC K9-A400 4 channel 960H Digital Video Recorder is a next generation high resolution system for superior CCTV video security. Using the latest 960H (960 x 480 pixel) video recording the units offer over 35 percent more detail that 4CIF systems. The DVR includes H.264 compression and provides real-time 120fps recording, viewing and playback. The DVR provides a full range of local and remote viewing conveniences from HDMI output to mobile viewing. The unit is compact yet fully comprehensive allowing for all types of professional video surveillance systems.

Designed to deliver an excellent user experience the system offers highly effective operation both locally or remotely. The KTNC K9-A400 4 Channel DVR System is equipped with a variety of benefits for local operations like HDMI high definition output to USB Mouse, Keyboard, IR Remote and complete front panel system control. Remotely the KTNC K9-A400 4ch Digital Video Recorder is setup to provide all types of remote video monitoring needs. Mobile support for IPhone, IPad and Android goes without saying, but the unit’s client software to free 1024ch CMS software set the unit far above the competition. Additional perks are enjoyed with the quality design and functionality of the user interfaces, such as the graphical event versus time-line style searching to complete DVR configurations from a remote location.

The KTNC K9-A400 4 channel 960H DVR is also enhanced by numerous other hardware advantages. The Linux DVR includes looping BNC outputs, Spot monitoring output, DVD-RW, eSATA, Two Way Audio, RS-485 control of PTZ Cameras and I/O communications. Amazing results are realized with an innovative design that delivers sophisticated and effective security camera systems with ease. Everything from Email notification to RAID support and FREE DDNS the KTNC K9-A400 is the perfect choice for your 700TVL CCTV Camera systems.

KTNC K9-A400 Main Features:

  • Linux Embedded 4 channel DVR
  • H.264 Hardware Compression (Dual Streaming)
  • 960H (WD1 960 x 480) 120fps Real-time Viewing, Recording and Playback
  • HDMI 1080P HD Display, VGA and BNC monitor options Plus Spot Monitor
  • Pentaplex Operation (i.e. Simultaneous Viewing, Recording, playback, back-up and remote view)
  • Intelligent DVR Surveillance Software with intuitive functions like a graphical display of time versus event trigger
  • Full Featured Professional: Viewing, Search, Playback and Export Functions (Export via USB or DVD option)
  • DVR Graphical User Interface (GUI) is built with Multi-language support
  • Local Mouse Control, Front Panel and IR Remote Controller
  • Complete Remote Monitoring with Mobile Viewing on IPhone, IPad or Android (Live, Playback and PTZ)
  • Professional Free DDNS, Web Server, Windows 1024ch CMS and MAC Client Software
  • Four (4) Channel Audio Input and (1) Channel Output: Two Way Communication
  • Gigabit LAN Ethernet, Multi-Protocol Network Standard Support
  • RS-485 PTZ Control (USB mouse on-screen and front panel control support)
  • Supports 6TB Total via 2 Internal SATA HDD Slots
  • Built-in DVD burner (Optional – replaces one HDD)
  • Includes: USB Mouse, IR Remote and 4G USB Flash Drive
  • 19” Rack mountable – rack ears included
  • 3 Year Warranty
