Messoa SDM125-HN1-28 Indoor Mini dome Security Camera

Messoa SDM125 indoor dome camera is a cost effective, compact, reliable and ultra-simple to install CMOS dome camera. The Messoa SDM125 features a ASPI CMOS Sensor with enhanced qualities for superior surveillance at an incredibly low price. The Messoa SDM125 Dome Security Camera provides excellent 550TVL High resolution imaging with low light capabilities to .01 Lux. CMOS images sensors offer a variety of benefits such as a higher noise to signal ratio for ultra-sharp pictures and in general CMOS image sensors are more reliable than CCD due to their method of construction and design. The Messoa SDM125 provides a variety of additional benefits thanks to its innovative design, such as simple installation that never requires removing the dome cover.  The unit requires 12VDC power input and is an excellent choice for applications requiring low budget CCTV security camera systems.

Messoa SDM125 Main Features:

• APSI CMOS Sensor
• 550TVL high-resolution image quality
• Low-light environments with outstanding performance
• 2.8mm wide angle Fixed Lens with 3.6mm Lens Optional
• High signal to noise ratio greater than S/N 52dB deliver crisp imaging.
• DC12V ±10% Power consumption less than 1W
• Easy to install, external 350º pan direction rotation, 75º tilt direction adjustment

Messoa SDM125 Specification:

Signal System NTSC PAL
Image sensor Apsi Sensor
Electronic
Sync system Internal
Horizontal resolution 550 TV Lines
Lens F2.0, f=2.8mm / f=3.6mm (Optional)
Auto white balance Auto (2500°K to 9500°K)
Electronic shutter Auto
Aperture Auto
AGC Auto
BLC Auto (1/3 Center)
Minimum illumination 0.01lux
S/N ratio > 52dB
Power Supply
Power requirement DC12V±10%
Power consumption 0.65W (max)
Environment
Storage temperature -10ºC ~ 50ºC (14ºF ~ 122ºF)
Operating humidity 90% RH
Storage temperature -20ºC ~ 60ºC (-4ºF ~ 140ºF)
Mechanism
Vandal proof/water proof -
Easy adjustment Outside 350º horizontal, 75º vertical

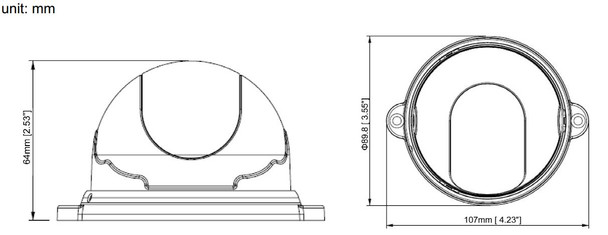

Dimensions (D x H) 107mm x 64mm
SDM125-HN1-28 SDM125-HP1-28
Ordering Information
SDM125-HN1-36 SDM125-HP1-36
