Milesight MS-C2941-X30TPE 2MP AI 30X Speed Dome IR PTZ IP Security Camera

Milesight MS-C2941-X30TPE 2MP AI 30X Speed Dome IR PTZ IP Security Camera is fine example of the industry's most advanced Pan-Tilt-Zoom Camera systems. The device delivers up to 90fps (triple real-time speeds) in full 1080p video while of course including cutting edge compression selections plus more for excellent video performance. True WDR, Powerful optical zoom and IR Night Vision combine to ensure such. The full range of pro Pan-Tilt-Zoom functions are on-board such as precise, high-speed movements to presets, patrols and patterns. Across the board users will find all the desired attributes not limited to on-board storage, RS-485 interface and rich I/O interface for external devices like Relay, Sensor, Mic or Speaker support. However, outstanding perks like A.I. enhanced detection or plug-in free web browser support quickly set these units apart from the average PTZ Speed dome. There is plenty more ranging from its surge protection and weatherproof construction to optional wiper, vandalproof high impact equipped models. Choose the MS-C2941-X30TPE Milesight AI IR PTZ Camera for exceptional performance and cutting-edge features. Optional Wiper equipped version is also available for top tier demands.

Milesight MS-C2941-X30TPE Main Features:

• 1/2.8" 2MP / 1920x1080 @ 90fps Superior Frame Rate
• 30X AF Lens Optical Zoom 4.7~141mm H62° ~ H3° / VFOV 37° ~ VFOV 1°
• Color: 0.002 Lux @ F1.2 / B/W: 0 Lux IR On
• Super WDR 140dB
• IR Night Vision Up to 200m
• Efficient Video H.265+, H.265, H.264+, H.264
• 360° endless Pan, 90° auto flip Tilt
• Pan Manual Speed: 0.1°~400°/s, Preset Speed: 400°/s
• Tilt Manual Speed: 0.1°~320°/s, Preset Speed: 320°/s
• 255 Preset Points
• 8 Patrols, 48 presets per patrol, 4 Patterns
• Supports Micro SD card 1TB max
• RS-485 Control Support
• Alarm I/O 4/2 For External Sensors/Relays
• Audio I/O For External Microphone/Speaker
• A.I. (Artificial Intelligence) Enhanced Human/Vehicle Detection/Classification
• Supports Video Content Analysis & People Counting
• Wall Mount Bracket A41 (Default)
• Pendant Mount Bracket A42 (Special Order)
• IP66 Weatherproof rating
• IK10 High Impact version (Special Order)
• AC 24V or PoE+ Power Input
• 6KV Surge Protection

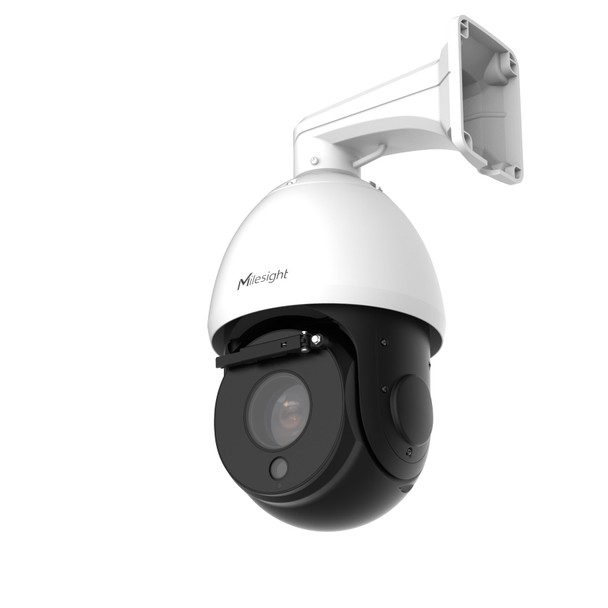

• OPTIONAL Smart Rain-sensing Wiper Model Available: MS-C2941-X42TPE-W
• NDAA COMPLIANT

Milesight MS-C2941-X30TPE Specifications:

2MP NDAA AI 30X Speed Dome Network Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination: Color: 0.002 Lux @F1.2, Color: 0.005 Lux @F1.5, B/W: 0 Lux with IR on
WDR 140dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Modes: Day/Night/Auto/Customize/Schedule
S/N: >55dB
Digital Zoom: 16X
Focal Length: 4.7~141mm, 30X Optical Zoom Lens
Zoom Speed: Approx 6s(Wide-Tele)
Field of View: HFOV 62° ~ HFOV 3°/ DFOV 70° ~ DFOV 3°/ VFOV 37° ~ VFOV 1°
Focus Control: Auto/Semi-Auto/Manual
Minimum Working Distance: 100/1500mm (Wide/Tele)
Aperture: F1.5~F4.0
Iris Control: Auto
PTZ Pan Range/Pan Speed: 360° endless/ Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s
Tilt Range/Tilt Speed: -5°~90° (Auto Flip)/ Tilt Manual Speed: 0.1°~320°/s, Tilt Preset Speed: 320°/s
Proportional Zoom: Support
Preset Quantity: 300
Patrol: 8 Patrols, up to 48 presets each patrol
Pattern: 4 Patterns
Power Off Memory: Support
Other Function: Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Night Vision Irradiation Distance: Up to 200m
Irradiation Angle: Auto/Manual
Video Max. Image Resolution: 1920x1080
Primary Stream:
60Hz/50Hz: 90fps@ (1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz/50Hz: 90fps@ (704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream:
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Access Support: IE/Firefox/Chrome/Safari Browser
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1
Alarm I/O: 4/2
RS485: Support
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Intelligent Analytics / Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
On-board Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
Operating Temperature Range: -40° ~ 60° C / Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3at)/ AC 24V/3A ±10%
Power Consumption: 12W MAX/ 24W MAX (With IR on)
Weather Proof Housing Up to IP66-rated for Weather-resistant Performance
Vandal-proof IK10-rated Metal Housing (Special Order Option)
Heater: Support
Wiper (Special Order Option): Support
Surge Protection: 6KV
Dimensions/Weight: Φ205mm X 308mm / 4Kg
Warranty: 2 Years/ (3 Year Optional)
