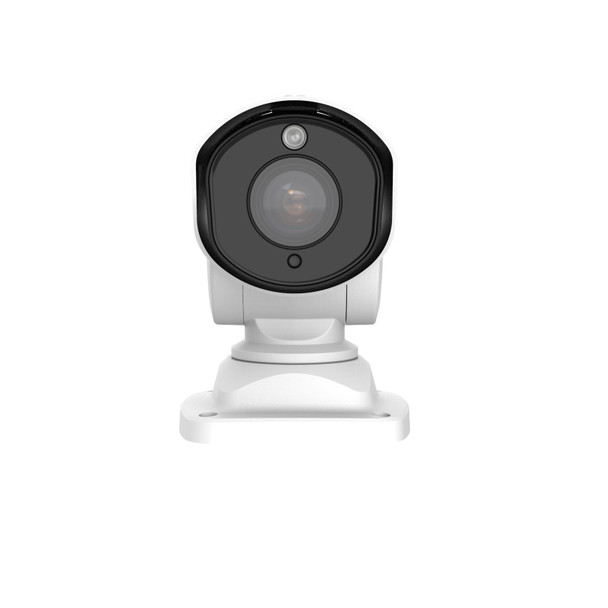

Milesight MS-C2961-X12RPE 2MP A.I. 12X IR PTZ Bullet IP Security Camera

Milesight MS-C2961-X12RPE 2MP A.I. 12X IR PTZ Bullet IP Security Cameras present groundbreaking performance in a new compact bullet Pan-Tilt-Zoom system design. Equipped with a Sony Starvis low light 2-megapixel image sensor, delivering superb 60fps (90fps on optional T version) accompanied by super WDR and high-power IR Night Vision, this Milesight PTZ Bullet IP Camera promises unfailing clarity even in zero light and/or of high-speed objects. The device is loaded with modern attributes including plug-in free, full function web interface to cutting-edge AI Deep Learning empowered Video Content Analysis. Wide system integration is supported not only for pro video security with protocols like ONVIF but likewise for a wide range of professional IP video demands with additional IT network protocols like SIP, RTSP or RTMP.

Built with a robust IP66 weatherproof construction that is well suited for extreme cold and extreme heat weather conditions, the device is ready to serve indoors or outdoors nearly anywhere. Supplied with Wall Mount and Pedestal Mount plus offering optional mounting accessories the PTZ also can be installed in the widest range of possible manners. Users can expect rich Pan-Tilt-Zoom functions including auto-scan, auto-home, 3D positioning, numerous presets, patterns, patrols and more. Allowing easy single cable install with PoE+ the device also adapts to 12V DC input as well as offers full Alarm and Audio I/O connectivity for external devices.

Milesight MS-C2961-X12RPE Main Feature:

• 1/2.8" 2MP 1920x1080 (1080p) @ 60fps 2x Real-time Frame Rates
• 12X AF Optical Zoom Lens 5.3~64mm (HFOV 61° ~ HFOV 5° / VFOV 36° ~ VFOV 2°)
• Color: 0.005 Lux @F1.6 and B/W: 0 Lux IR On
• Super Wide Dynamic Range (WDR 140dB)
• Powerful Long Range IR Night Vision up to 140m
• High Efficiency Video H.265+, H.265, H.264+, H.264
• A.I. based Video Content Analysis Human/Vehicle, People Counting
• ONVIF for Universal Security Camera System Support
• 300 Preset Points, 8 Patrols, 48 presets per patrol; 4 Patterns; 3D positioning & more
• 360° endless Pan, Pan Manual Speed: 0.1°~60°/s, Preset Speed: 60°/s
• -45°~30° Tilt, Tilt Manual Speed: 0.1°~30°/s, Preset Speed: 30°/s
• Multi-port: Alarm I/O and Audio I/O for External Devices
• Supports Micro SD card (1TB max)
• IP66 Weatherproof Rated for harsh outdoor environments
• Wide Operating Temperature Range: -40° ~ 60° C
• Supports PoE+ Or 12VDC Power Source
• Wall Mount and Pedestal Mount Support
• NDAA Compliant

2MP 12x AI IR Bullet PTZ Camera NDAA Specifications:

Image Sensor: 1/2.8″ Progressive Scan CMOS
Min. Illumination: Color: 0.005Lux@F1.6 / 0 Lux B/W w/IR ON
B/W: 0Lux with IR on
WDR 140dB Super WDR
Shutter Time: 1/100000s~1s
IR Distance Up to 140m
Digital Zoom 16X
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB
Lens
Focal Length: 5.3~64mm, 12X Optical Zoom
Zoom Speed Approx 4s (Wide-Tele)
Field of View H61°~H5°/D69°~D5°/V36°~V2°
Focus Control Auto/Semi-Auto/Manual
Minimum Working Distance 1000/1500mm (Wide/Tele)
Aperture F1.6~F2.8
Iris Control Auto
PTZ
Pan Range/Pan Speed 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed -45°~30° / Tilt Manual Speed: 0.1°~25°/s, Tilt Preset Speed: 25°/s
Proportional Zoom Support
Preset Quantity: 300
Patrol: 8 Patrols, up to 48 presets each patrol
Pattern: 4 Patterns
Auto Tracking: Support
Power Off Memory: Support
Other Function Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution 1920x1080
Primary Stream 60Hz: 90fps@(1920x1080) (Optional for "T" or -TPE Series),
60fps@ (1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080) (Optional for T Series),
50fps@ (1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1 (Optional)
Alarm I/O 1/1 (Optional)
Network
Network Storage NAS (Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics with A.I.
Video Analysis: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,
Line Crossing, Loitering, Object Left, Object Removed
Face Detection Face Attribute Recognition Detect and capture faces, get real-time snapshots;
The attributes include Age, Gender, Glasses, Mask and Cap;
Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
System
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering,
AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input (Optional), Audio Alarm (Optional), etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output (Optional), SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & M & S & T, API
General
Working Temperature -40℃~60℃
Working Humidity 0~95%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V/2A±10%
Power Consumption 16W MAX / 21W MAX (With IR on)
Weather Proof Up to IP66-rated for Weather-resistant Performance
Weight 2Kg (Wall Mount) / 1.8Kg (Pedestal Mount)
Dimensions 160mmX273.5mmX210mm (Wall Mount) / 218mmX120mmX172mm (Pedestal Mount)
Warranty 2 Years / 3 Years (Optional)
