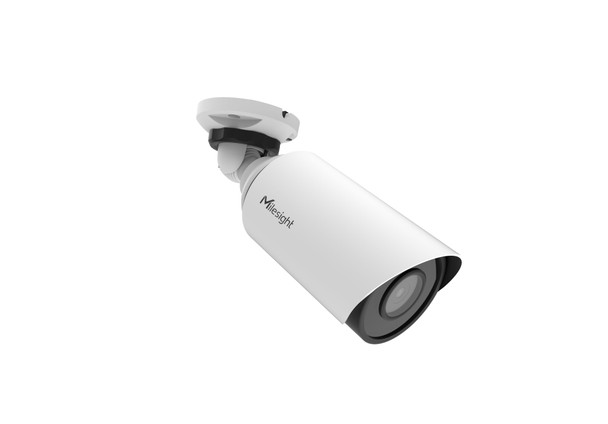

Milesight MS-C2964-PD 2MP AI Vandal Mini IR Bullet Network Security Camera

Milesight MS-C2964-PD 2MP AI Vandal-proof Mini Bullet Network Cameras are professional grade IP cameras, packed with feature and an affordable cost. Excellent wide area coverage and effective IR night Vision combine with real-time 1080p HD video plus A.I. detection for highly effecient, professional IP video security. Built tough these compact units are ready for indoor or outdoor surveillance applications with a flexible design that easily adapts to install needs and is ready to withstand harsh environments. The Milesight Mini IR Bullet IP cameras promise reliable video with vesratile 3rd party security system integration with multiple forms of ONVIF supported.



Milesight MS-C2964-PD Main Features:



2MP AI Vandal-proof Mini Bullet Network Camera Specifications:



Image Sensor: 1/2.8" Progressive Scan CMOS

Min. Illumination Color: 0.002 Lux @ F1.2, Color: 0.005 Lux @ F1.6, B/W: 0 Lux with IR on

WDR 120dB Super Wide Dynamic Range

Lens: 2.8mm (Default) 4mm or 6mm (special order) @ F1.6

Field of View: HFOV 111°/ DFOV 128°/ VFOV 61°(2.8mm)

               HFOV 91°/ DFOV 106°/ VFOV 50°(4mm)

Shutter Time: 1/100000s~!1s

Day/Night Modes: Day/Night/Auto/Customize/Schedule

IR Night Vision Distance: Up to 30m

S/N: >55dB

Video Max. Image Resolution: 1920x1080 / 1080P

Frame Rates Per Stream:

Main Stream:

60Hz: 60fps@ (1920x1080)(Optional R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)

50Hz: 50fps@ (1920x1080)(Optional R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576)

Secondary Stream:

60Hz: 30fps @ (704x576, 640x480, 640x360, 352x288)

50Hz: 25fps @ (704x576, 640x480, 640x360, 352x288)

Tertiary Stream:

60Hz: 30fps @ (1280x720, 704x576, 640x480, 640x360, 352x288)

50Hz: 25fps @ (1280x720, 704x576, 640x480, 640x360, 352x288)

Video Compressions: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)

Privacy Masking: Up to 4 areas

ROI: Up to 8 areas

Image Settings: Saturation/Brightness/Contrast/Sharpness

Interface Ethernet: 1*RJ45 10M/100M Ethernet Port

Network Storage: NAS(Support NFS, SMB/CIFS), ANR

Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

Intelligent Analytics / Video Analysis: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed

On-Board Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 256G

Advanced Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur

SIP/VoIP Support: Yes, Voice&Video-over-IP

Event Trigger: Motion Detection, Network Disconnection, etc.

Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.

System Compatibility: ONVIF Profile G & Q & S & T, API

General Working Temperature -40°~60°C

Working Humidity: 0~90%(Non-condensing)

Power Supply: PoE(802.3af)

Power Consumption: 3.1W MAX, 5.1W MAX (With IR on)

Weather Proof: Up to IP67-rated for weather-resistant performance

Housing Vandal-proof: IK10-rated metal housing

Weight: 610g (Junction Box Version) / 450g (Cable Out Version)

Dimensions: 97mm X 74mm X 180mm (Junction Box Version) / 64mm X 64mm X 160mm (Cable Out Version)

Warranty: 3 Years (5 Year Option)
