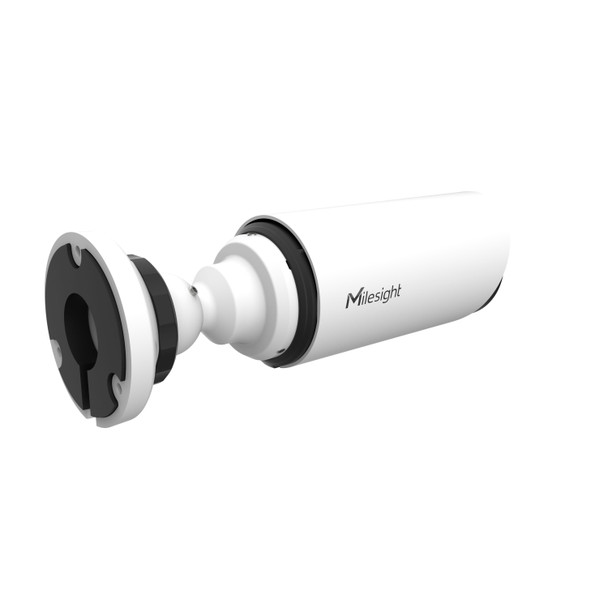

Milesight MS-C2964-RFIPE 2MP AI Motorized IR Bullet IP Security Camera

Milesight MS-C2964-RFIPE 2MP AI Motorized Bullet IP Security Camera is a best-in-class solution for professional network video security and more. The unit is equipped for high performance HD video surveillance in all sorts of challenging lighting conditions including zero light to high contrast scenes. The device is well outfitted for adaptable deployment featuring a motorized lens, micro-SD card slot for stand-alone recording to ONVIF compliance. Also boasting not only a weatherproof construction but also a vandalproof high impact design the Milesight MS-C2964-RFIPE AI Bullet IP camera is ready for harsh applications.



Milesight MS-C2964-RFIPE Main Features:

Milesight MS-C2964-RFIPE Specifications:



2MP NDAA AI Motorized Bullet Network Camera

Image Sensor: 1/2.8" Progressive Scan CMOS

Min. Illumination: Color: 0.004 Lux @F1.4, B/W: 0 Lux with IR on

WDR 140dB Super Wide Dynamic Range

Shutter Time: 1/100000s~1s

Day/Night Modes: Day/Night/Auto/Customize/Schedule

IR Night Vision Range: Up to 50m

S/N: >55dB

Motorized: 2.7~13.5mm (Default) or 3.0~10.5mm/7~22mm (Special order) @F1.4

P-Iris (Optional)

Field of View: HFOV 111° ~ HFOV 34°/DFOV 130° ~ DFOV 39°/ VFOV 60°~VFOV 19°(2.7~13.5mm)

               HFOV 100° ~ HFOV 33°/DFOV 115° ~ DFOV 38°/ VFOV 54°~ VFOV 18° (3~10.5mm SPECIAL ORDER)

Lens Mount: Φ14

Focus Control: Auto/Manual

Iris Control: P-Iris with Auto/Manual

Video Max. Image Resolution: 1920x1080 (1080p)

Frame Rate Per Stream:

Main Stream: (optional T series 90fps)

60Hz: 60fps@ (1920x1080, 1280x960, 1280x720, 704x576)

50Hz: 50fps@ (1920x1080, 1280x960, 1280x720, 704x576)

Secondary Stream:

60Hz: 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)

50Hz: 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)

Tertiary Stream:

60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)

50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)

Video Compressions: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)

Privacy Masking: Up to 24 areas

ROI: Up to 8 areas

Image Settings: Saturation/Brightness/Contrast/Sharpness

Interface Ethernet: 1*RJ45 10M/100M Ethernet Port

Audio I/O: 1/1 (Multi-interface Version Special Order)

Alarm I/O: 1/1 (Multi-interface Version Special Order)

Network Storage NAS (Support NFS, SMB/CIFS), ANR

Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

Audio Compressions: G.711/AAC/G.722/G.726

Audio Sampling Rate: 8/16/32/44.1/48KHz

Audio Bit Rate: 16~256kbps

Two-way Audio: Support

Intelligent Analytics

Video Analysis: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed

Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically

Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle,

Support regional people counting for up to 4 detection areas

System

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB

Advanced Function: BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark

SIP/VoIP Support: Yes, Voice & Video-over-IP

Event Trigger: Motion Detection, Network Disconnection, etc.

Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.

3rd Party Security System Compatibility: ONVIF Profile G & M & S & T, API

General Working Temperature -40°~ 60°

Working Humidity: 0~90%(Non-condensing)

Power Supply: PoE(802.3af) - (Special Order Multi-Interface DC 12V ±10%)

Power Consumption: 6W MAX, 10W MAX (With IR on)

Housing Up to IP67-rated for weather-resistant performance

Vandal-proof IK10-rated metal housing

Weight: 825g

Dimensions: Φ 76mm X 239.5mm

Warranty: 3 Years (5 Year option)
