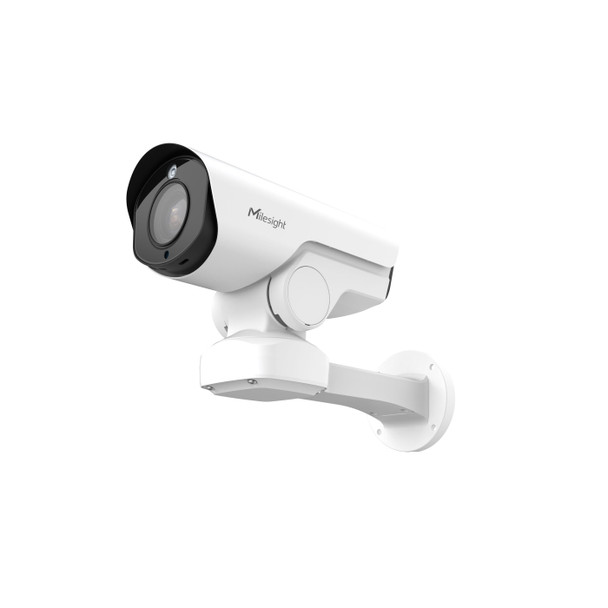

Milesight MS-C2967-X12TPE 2MP AI 12X IR PTZ Bullet Plus IP Security Camera

Milesight MS-C2967-X12TPE 2MP A.I. 12X PTZ Bullet Plus IP Security Cameras deliver superior performance with a similar style to traditional Pan-Tilt-Zoom Systems in a low profile, compact design. Boasting a Sony Starvis Low Light 2-Megapixel Image sensor, high shutter speeds and generating up to 90fps (triple real-time video) the device is able to provide sharp images of even fast-moving objects. Harnessing advantages like a 140dB Super Wide Dynamic Range (WDR) or its long-range IR Night Vision effective to nearly 600ft, this bullet PTZ promises absolute clarity in all types of lighting conditions. Featuring likewise cutting-edge video compression methods like H.265 and H.264 with support for multiple video streams, the device easily adapts to all sorts of video security and other professional video system demands. Rich functionality is included across the board ranging from a built-in full function, plug-in free web browser interface to edge storage and advanced A.I. deep learning video analysis, the Milesight Bullet PTZ IP Cameras introduce a new standard and option in Pan-Tilt-Zoom Surveillance Cameras.

While including countless granular benefits like its unique White Light LED for illumination or warning of nearby subjects, the device also includes all the core features and more of any top tier Pan-Tilt-Zoom Security Camera. From PTZ Auto-tracking to plenty of presets, patrol and patterns supported, the device includes all the commonly sought operational abilities of pro PTZs from memory of power to auto-scan or auto-home, 3D positioning and more. The device further offers a 360° continuous pan and -45° to 30° tilt range ensuring a wide area coverage for active surveillance demands. Allowing either 12VDC or PoE+ single cable installation, the PTZ also includes Alarm and Audio I/O connectivity enabling powerful integration with external devices like Alarm Sensors, Relays, Microphones or Speakers. Supplied with a wall mount and built to IP66 weatherproof ratings with a wide operating temperature, other optional mounts and styles are also offered.

Milesight MS-C2967-X12TPE Main Features:

• 1/2.8" 2MP 1920x1080 (1080p) @ 90fps Superior High Frame Rate
• 12X AF Optical Zoom Lens 5.3~64mm (HFOV 61° ~ HFOV 5° / VFOV 36° ~ VFOV 2°)
• Color: 0.005 Lux @F1.6 and B/W: 0 Lux IR On
• Super Wide Dynamic Range (WDR 140dB)
• Powerful Long Range IR Night Vision up to 180m
• High Efficiency Video H.265+, H.265, H.264+, H.264
• A.I. based Video Content Analysis Human/Vehicle, People Counting
• ONVIF for Universal Security Camera System Support
• Next-generation PTZ Motor, PTZ Position Display, 3D positioning
• 300 Preset Points, 8 Patrols, 48 presets per patrol; 4 Patterns
• 360° endless Pan, Pan Manual Speed: 0.1°~60°/s, Preset Speed: 60°/s
• -45°~30° Tilt, Tilt Manual Speed: 0.1°~30°/s, Preset Speed: 30°/s
• Multi-port: Alarm I/O and Audio I/O for External Devices
• Supports Micro SD card (1TB max)
• IP66 Weatherproof Rated for harsh outdoor environments
• Wide Operating Temperature Range: -40° ~ 60° C
• Supports PoE+ Or 12VDC Power Source
• NDAA Compliant

Milesight MS-C2967-X12TPE Specifications:

2MP NDAA AI 23X PTZ Bullet Plus Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @F1.5, B/W: 0 Lux with IR on
WDR 140dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
Digital Zoom: 16X
S/N: >55dB
Lens Focal Length: 5.3~64mm, 12X Optical Zoom
Zoom Speed: Approx 4s(Wide-Tele)
Field of View: HFOV 61° ~ HFOV 5°/ DFOV 69°~ DFOV 5°/ VFOV 36° ~ VFOV 2°
Focus Control: Auto/Semi-Auto/Manual
Minimum Working Distance: 1000/1500mm (Wide/Tele)
Aperture: F1.6~F3.5
Iris Control: Auto
PTZ:
Pan Range/Pan Speed: 360° endless/ Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed: -45°~30°/ Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom: Support
Preset Quantity: 300
Patrol: 8 Patrols, up to 48 presets each patrol
Pattern: 4 Patterns
Power Off Memory: Support
Other Functions: Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Night Vision Irradiation Distance: Up to 180m
Video Max. Image Resolution: 1920x1080 (1080p)
Frame Rates Per Stream:
Primary Stream:
60Hz: 90fps@(1920x1080), 60fps@ (1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080), 50fps@ (1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz: 90fps@(704x576), 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@(704x576), 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream
60Hz: 30fps @ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps @ (1280x720, 704x576, 640x480, 640x360, 351c288, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Access Support: IE/Firefox/Chrome/Safari Browser
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1 Input/Output for External Microphone and Speaker
Alarm I/O: 1/1 Input/Output for External Sensor and Relay
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics / Video Analysis: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
On-board Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
3rd Party Security System Compatibility: ONVIF Profile G & M & S & T, API
Operating Temperature Range: -40° ~ 60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE (802.3at) / DC 12V/3A±10%
Power Consumption: 13W MAX, 23W MAX (With IR on)
Weather Proof Up to IP66-rated for Weather-resistant Performance
Dimensions: 110mm X 337mm X 220mm
Weight: 2.9Kg
Warranty: 2 Years (3 Years Optional)
