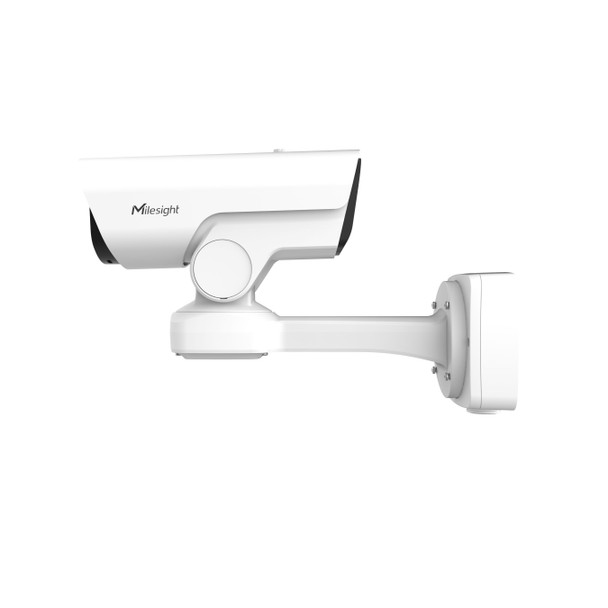

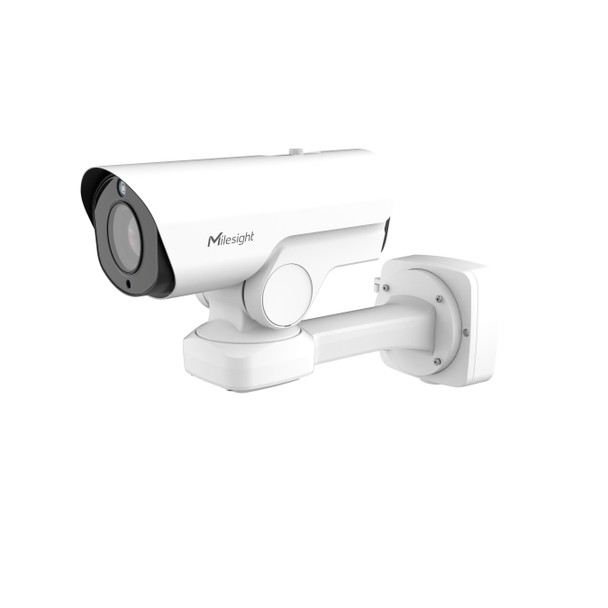

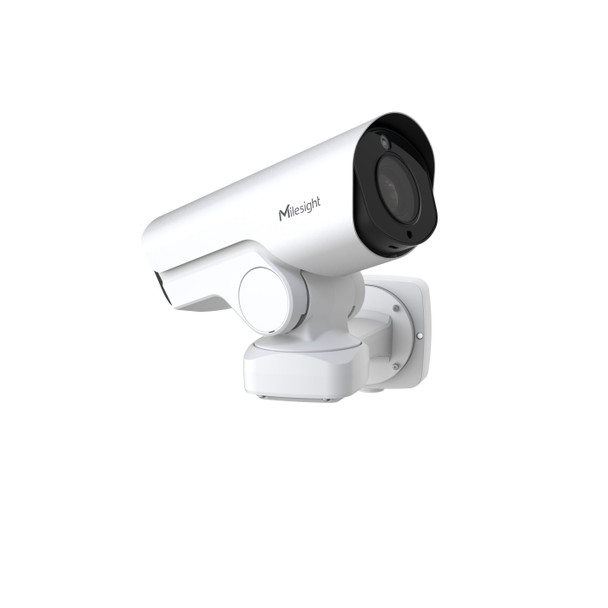

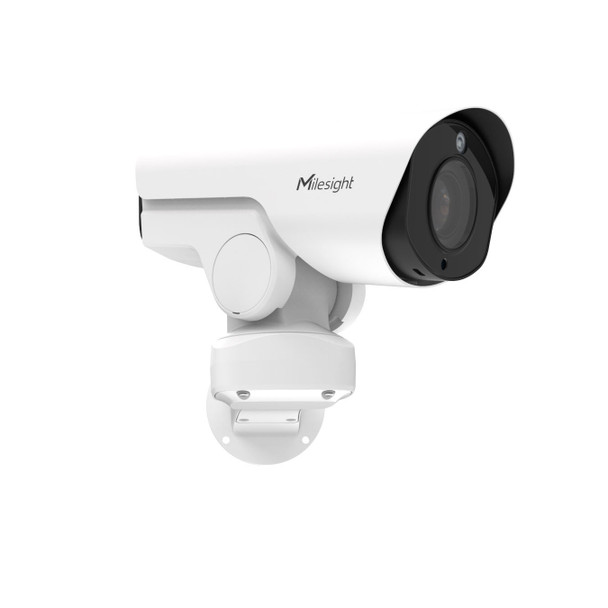

Milesight MS-C2967-X23TPE 2MP AI 23X IR PTZ Bullet Plus IP Security Camera

Milesight MS-C2967-X23TPE 2MP AI 23X PTZ Bullet Plus IP Security Cameras are a unique breed of Pan-Tilt-Zoom cameras with exceptional performance and features. The device can deliver super high frame rates up to 90fps (triple real-time speeds) in full 1080p video while also giving High Powered IR Night Vision to powerful, long range Optical Zoom. Featuring cutting edge video compressions for the most efficient data usage, the devices are also rich with other universal protocols ranging from ONVIF compliance for 3rd party system integration to others like RTMP for direct streaming to major online platforms like YouTube. Built with a modernized PTZ motor this rare type of PTZ camera mimics traditional Pan/Tilt/Zoom Camera systems with its ability to provide viewing well above the horizon yet despite its compact size still offers benefits like 360-degree continuous pan and as aforementioned long range optical zoom. Users will find all the professional PTZ attributes from high speed, high accuracy control to presets, patterns and patrol support. Likewise support for external I/O interface of Sensor and Relay to microphone and speaker connection are all supported. The device likewise has on-board SD card support to the latest A.I. enhanced detection for superior IP surveillance.

Milesight MS-C2967-X23TPA Main Features:

• 1/2.8" 2MP 1920x1080 (1080p) @ 90fps Superior High Frame Rate
• 23X AF Optical Zoom Lens 5~117mm (HFOV 60° ~ HFOV 3° / VFOV 35° ~ VFOV 2°)
• Color: 0.005 Lux @F1.5 and B/W: 0 Lux IR On
• Super Wide Dynamic Range (WDR 140dB)
• Powerful Long Range IR Night Vision up to 180m
• High Efficiency Video H.265+, H.265, H.264+, H.264
• A.I. based Video Content Analysis Human/Vehicle, People Counting
• ONVIF for Universal Security Camera System Support
• Next-generation PTZ Motor, PTZ Position Display, 3D positioning
• 300 Preset Points, 8 Patrols, 48 presets per patrol; 4 Patterns
• 360° endless Pan, Pan Manual Speed: 0.1°~60°/s, Preset Speed: 60°/s
• -45°~30° Tilt, Tilt Manual Speed: 0.1°~30°/s, Preset Speed: 30°/s
• Multi-port: Alarm I/O and Audio I/O for External Devices
• Supports Micro SD card (1TB max)
• IP66 Weatherproof Rated for harsh outdoor environments
• Wide Operating Temperature Range: -40° ~ 60° C
• Supports PoE+ Or 12VDC Power Source
• NDAA Compliant

Milesight MS-C2967-X23TPE Specifications:

2MP NDAA AI 23X PTZ Bullet Plus Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @F1.5, B/W: 0 Lux with IR on
WDR 140dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
Digital Zoom: 16X
S/N: >55dB
Lens Focal Length: 5~117mm, 23X Optical Zoom
Zoom Speed: Approx 6s(Wide-Tele)
Field of View: HFOV 60° ~ HFOV 3°/ DFOV 69°~ DFOV 4°/ VFOV 35° ~ VFOV 2°
Focus Control: Auto/Semi-Auto/Manual
Minimum Working Distance: 1000/1500mm (Wide/Tele)
Aperture: F1.5~F3.5
Iris Control: Auto
PTZ:
Pan Range/Pan Speed: 360° endless/ Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed: -45°~30°/ Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom: Support
Preset Quantity: 300
Patrol: 8 Patrols, up to 48 presets each patrol
Pattern: 4 Patterns
Power Off Memory: Support
Other Functions: Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Night Vision Irradiation Distance: Up to 180m
Video Max. Image Resolution: 1920x1080 (1080p)
Frame Rates Per Stream:
Primary Stream:
60Hz: 90fps@(1920x1080), 60fps@ (1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080), 50fps@ (1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz: 90fps@(704x576), 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@(704x576), 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream
60Hz: 30fps @ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps @ (1280x720, 704x576, 640x480, 640x360, 351c288, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Access Support: IE/Firefox/Chrome/Safari Browser
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1 Input/Output for External Microphone and Speaker
Alarm I/O: 1/1 Input/Output for External Sensor and Relay
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics / Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
On-board Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
3rd Party Security System Compatibility: ONVIF Profile G & M & S & T, API
Operating Temperature Range: -40° ~ 60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE (802.3at) / DC 12V/3A±10%
Power Consumption: 13W MAX, 23W MAX (With IR on)
Weather Proof Up to IP66-rated for Weather-resistant Performance
Dimensions: 110mm X 337mm X 220mm
Weight: 2.9Kg
Warranty: 2 Years (3 Years Optional)
