Milesight MS-C2971-X12TPE 2MP AI 12x IR Vandal Dome PTZ IP Security Camera

Milesight MS-C2971-X12TPE 2MP AI 12x IR Vandal Dome PTZ IP Camera is a game-changer for professional IP surveillance and more. The device grants industry leading super frame rates of up to 90fps in full 1080p HD and true day/night operation with excellent low light performance is only the beginning of its impressive qualities. Boasting all the latest technology advances this compact yet robust Vandal Dome PTZ Camera is a pro-choice for demanding applications be they video security to other video related professional system demands. Cutting edge tech perks like H.265, H.264, plug-in free web browser operation to ONVIF, SIP and RTMP protocol support are only part of the exciting benefits. This compact yet weatherproof and vandalproof Dome IP PTZ camera offers all the professional Pan-Tilt-Zoom qualities plus plenty more. There is A.I. detection, flexible 12VDC or PoE power input to I/O external device support including Mic, Speaker, Relay and Sensor connections.

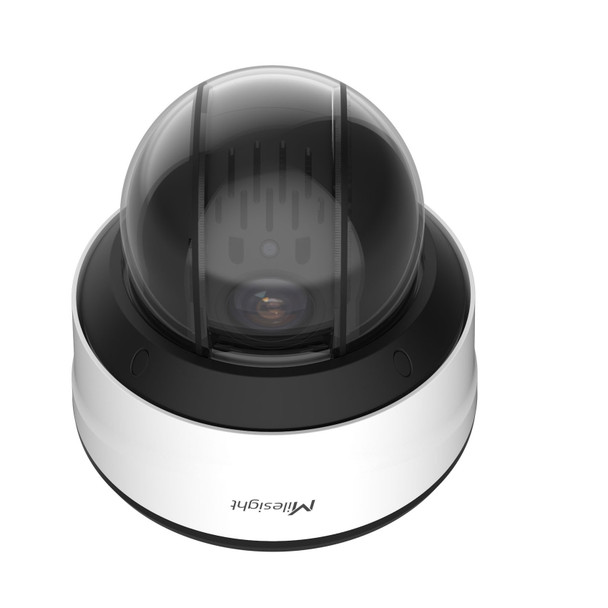

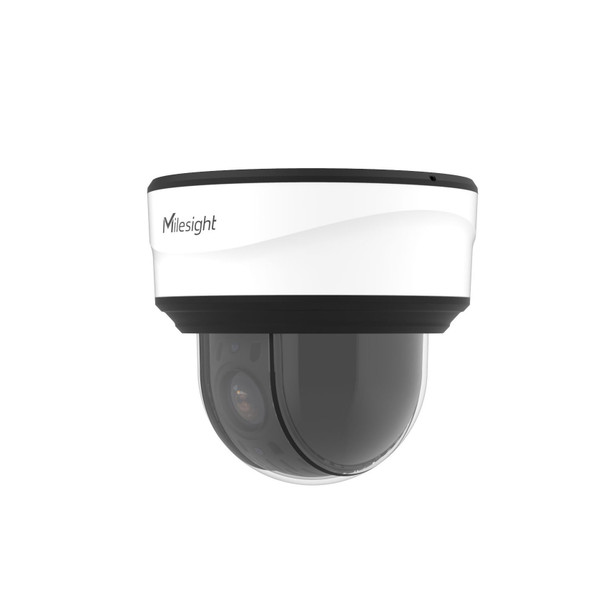

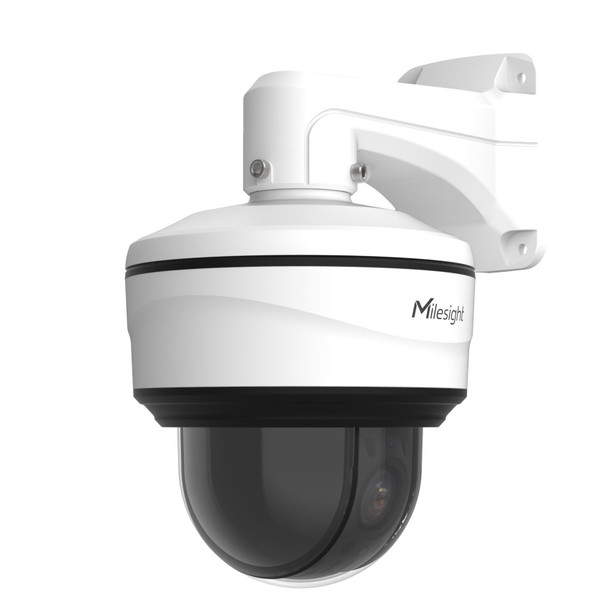

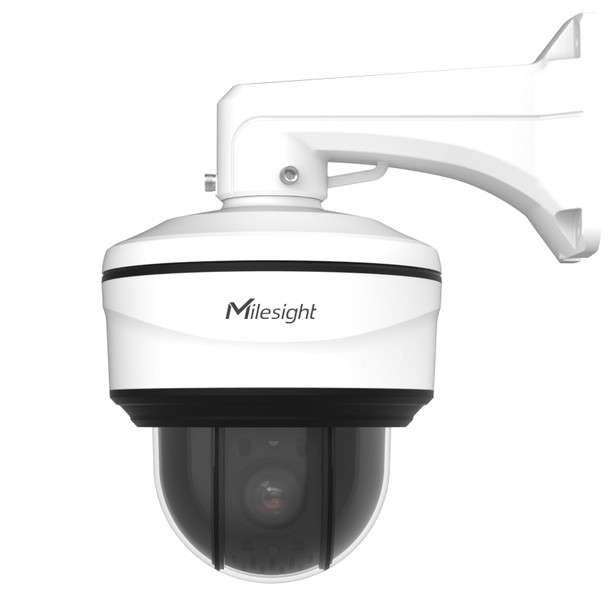

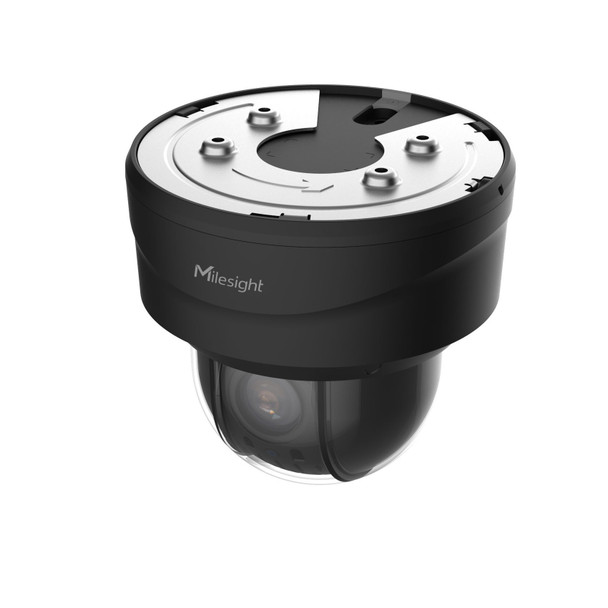

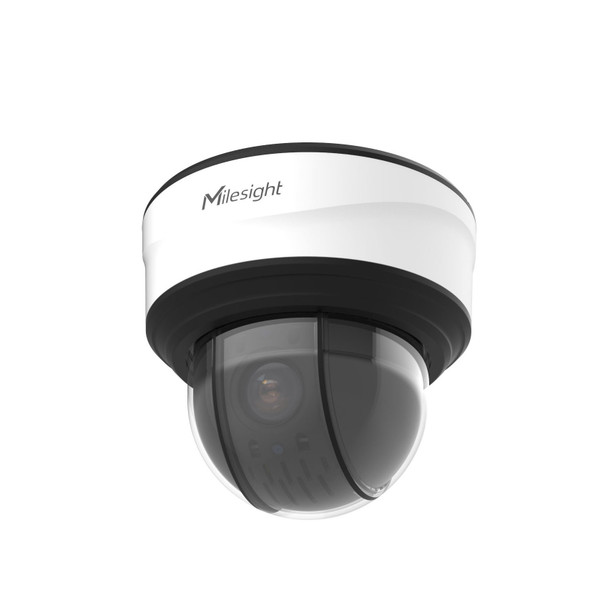

Milesight’s Vandalproof Mini Dome AI IR Pan-tilt-Zoom Network Camera is offered in a white casing or optional (w/MoQ) all black casing. The device comes ready for ceiling surface mounting but likewise has additional optional accessories for wall mounting, pipe mounting, pole mounting and more. Boasting powerful featuring rivaling full size PTZ cameras the Milesight Vandal Dome PTZ Camera delivers impressive results in an unobtrusive size yet rugged construction. High Speed movement, numerous presets, patrols and patterns to edge-storage are all included. Add the layers of A.I. empowered detections and advanced video content analysis and this PTZ stands apart in the industry.

Milesight MS-C2971-X12TPE Main Features:

• 1/2.8" 2MP 1920x1080 @ 90fps Supreme Frame Rate
• 12X AF Optical Zoom Lens 5.3~64mm HFOV 61° ~ HFOV 5° / VFOV 36° ~ VFOV 2°
• Color: 0.002 Lux @ F1.2 / B/W: 0 Lux IR ON
• Super WDR (140dB Wide Dynamic Range)
• Powerful IR Night Vision up to 160m
• Efficient Video Compressions H.265+, H.265, H.264+, H.264
• 360° endless Pan, -5°~90° Tilt
• Pan Manual Speed: 0.1°~450°/s, Preset Speed: 450°/s
• Tilt Manual Speed: 0.1°~360°/s, Preset Speed: 360°/s
• 300 Preset Points, 8 Patrols, 48 presets per patrol, 4 Patterns
• Supports Micro SD card (1TB max)
• Alarm I/O Input/Output for External Sensor/Relay
• Audio I/O Input/Output for External Microphone/Speaker
• A.I. Enhanced Human/Vehicle Detection
• Plus, Video Content Analysis & People Counting
• IP66 Weatherproof Rating
• IK10 High Impact Vandalproof Rating
• 4KV Surge Protection
• DC 12V or PoE+ Support

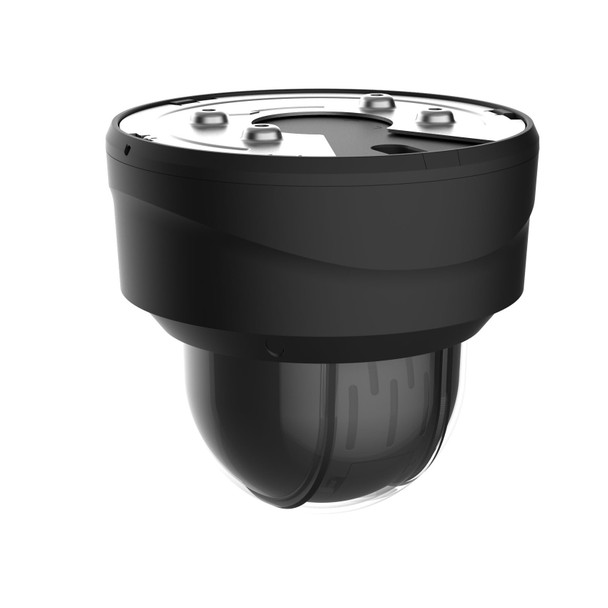

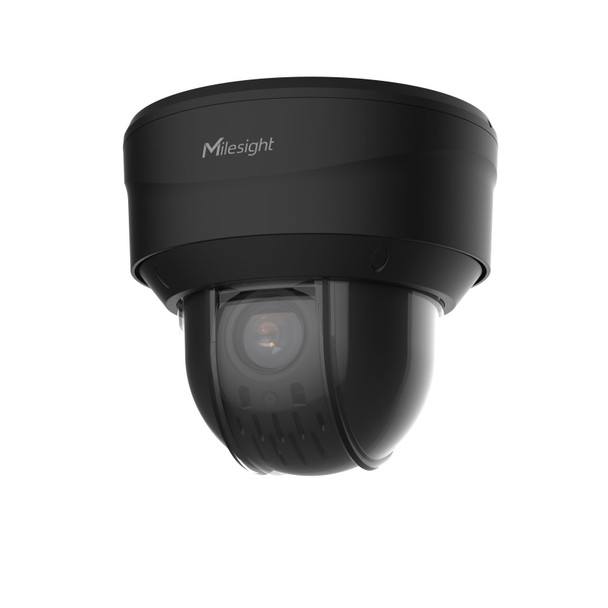

• Special Order: Black Housing & Smoked Dome Cover Options

Milesight MS-C2971-X12TPE Specifications:

2MP NDAA AI 12X PTZ Dome Network Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination: Color: 0.002 Lux @F1.2, Color: 0.005 Lux @F1.6, B/W: 0 Lux with IR on
WDR: 140dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Modes: Day/Night/Auto/Customize/Schedule
S/N: >55dB
Digital Zoom: 16X
Lens 5.3~64mm, 12X Optical Zoom Lens
Zoom Speed: Approx 4s (Wide-Tele)
Field of View: HFOV 61° ~ HFOV 5°/ DFOV 69° ~ DFOV 5°/ VFOV 36° ~ V2°
Focus Control: Auto/Semi-Auto/Manual
Minimum Working Distance: 100/1500mm (Wide/Tele)
Aperture: F1.6~F2.8
Iris Control: Auto
PTZ Pan Range/Pan Speed 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s
Tilt Range/Tilt Speed: -5°~90° (Auto Flip)/ Tilt Manual Speed: 0.1°~360°/s, Tilt Preset Speed: 360°/s
Proportional Zoom: Support
Preset Quantity: 300
Patrol: 8 Patrols, up to 48 presets each patrol
Pattern: 4 Patterns
Power Off Memory: Support
Other Function Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Night Vision Irradiation Distance: Up to 160m
Irradiation Angle: Auto/Manual
Video Max. Image Resolution: 1920x1080 (1080p / 2 Megapixel)
Primary Stream:
60Hz/50Hz: 90fps@ (1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz/50Hz: 90fps@ (704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream:
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1 for External Devices
Alarm I/O: 1/1 for External Devices
Network Storage Support: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compressions: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Intelligent Analytics / Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
On-board Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
3rd Party Security System Compatibility: ONVIF Profile G & Q & S & T, API
General Working Condition: Temperature: -40° ~ 60° C / Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3at)/ DC 12V/3A ±10%
Power Consumption: 12W MAX/ 20W MAX (With IR on)
Weather Proof: Up to IP66-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Surge Protection: 4KV
Dimensions: Φ183mm X 174.8mm
Weight: 2Kg
Warranty: 2 Years/ (3 Years Optional)
