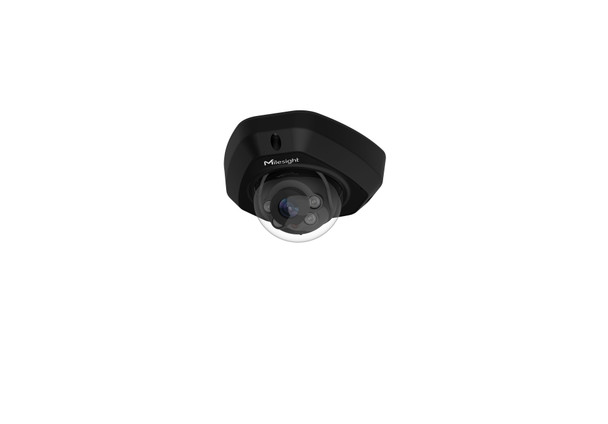

Milesight MS-C2973-PD 2MP AI Vandalproof IR Mini Dome IP Security Camera

Milesight MS-C2973-PD 2MP AI Vandal-proof Mini Dome IP Security Camera is a robust yet affordable solution with cutting edge surveillance features for many types of environments and install needs. These units deliver superior coverage area with high performing video up to 1080p HD video while also offering Audio support, H.265 compression, advanced A.I. detection to rugged construction and weatherproof design. Highly flexible these compact, low profile dome IP cameras grant a wealth of attributes that satisfy installers and end-user results alike. Flexible Power input to versatile 3rd party system support via numerous integration protocols the Milesight MS-C2973-PD is absolutely a superior choice compared to most, if not the best in class for sure. Available in multiple versions allowing different lenses, casing color or high frame rate options, all models otherwise deliver across the board modern leading attributes. Similar models in 5MP and 4K Ultra HD resolutions are also available allowing the series to compete with any modern mini dome IP camera.



Milesight MS-C2973-PD Main Features:





Milesight MS-C2973-PD More Specifications:



2MP AI Vandal-proof Mini Dome Network Camera

Image Sensor: 1/2.8" Progressive Scan CMOS

Min. Illumination: Color: 0.002 Lux @F1.2, Color: 0.005 Lux @F1.6, B/W: 0 Lux with IR on

WDR 120dB Super Wide Dynamic Range

Lens: 2.8mm OR 4mm OR 6mm (4 / 6 Special Order) @F1.6

Lens Mount: M12

Field of View: HFOV 111°/ DFOV 128°/ VFOV 61°(2.8mm)

               HFOV 91°/ DFOV 106°/ VFOV 50°(4mm)

Shutter Time: 1/100000s~1s

Day/Night Modes: Day/Night/Auto/Customize/Schedule

IR Night Vision Distance: Up to 30m

S/N: >55dB

Video Max. Image Resolution: 1920x1080 (1080p HD)

Frame Rates

Main Stream:

60Hz: 60fps @ (1920x1080)(Optional R Series), 30fps @ (1920x1080, 1280x960, 1280x720, 704x576)

50Hz: 50fps @ (1920x1080)(Optional R Series), 25fps @ (1920x1080, 1280x960, 1280x720, 704x576)

Secondary Stream:

60Hz: 30fps @ (704x576, 640x480, 640x360, 352x288)

50Hz: 25fps @ (704x576, 640x480, 640x360, 352x288)

Tertiary Stream:

60Hz: 30fps @ (1280x720, 704x576, 640x480, 640x360, 352x288)

50Hz: 25fps @ (1280x720, 704x576, 640x480, 640x360, 352x288)

Video Compressions: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)

Privacy Masking: Up to 4 areas

ROI: Up to 8 areas

Image Settings: Saturation/Brightness/Contrast/Sharpness

Interface Ethernet: 1*RJ45 10M/100M Ethernet Port

Audio I/O: Built-in Microphone; 1/1 I/O (Multi-interface Version for external Mic/Speaker)

Alarm: I/O Alarm Input/Relay Output 1/1 (Multi-interface Version)

Network Storage: NAS(Support NFS, SMB/CIFS), ANR

Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

Audio Compression: G.711/AAC/G.722/G.726

Audio Sampling Rate: 8/16/32/48KHz

Audio Bit Rate: 16~256kbps

Two-way Audio: Supported

Intelligent Analytics: Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed

Edge Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 256G

Advanced Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur

SIP/VoIP Support: Yes, Voice&Video-over-IP

Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)

Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)

3rd Party System Integration: ONVIF Profile G & Q & S & T, API

Operating Working Temperature: -40° ~ 60°C

Working Humidity: 0~90%(Non-condensing)

Power Supply: PoE(802.3af); PoE(802.3af) or DC 12V ±10% (Multi-interface Version)

Power Consumption: 3W MAX, 4.7W MAX(With IR on)

Housing Up to IP67-rated for weather-resistant performance

Vandal-proof IK10-rated metal housing

EN50155 Support

Weight: 500g

Dimensions: 118.5mmX110.8mmX65mm

Warranty: 3 Years (5 YEAR Option)
