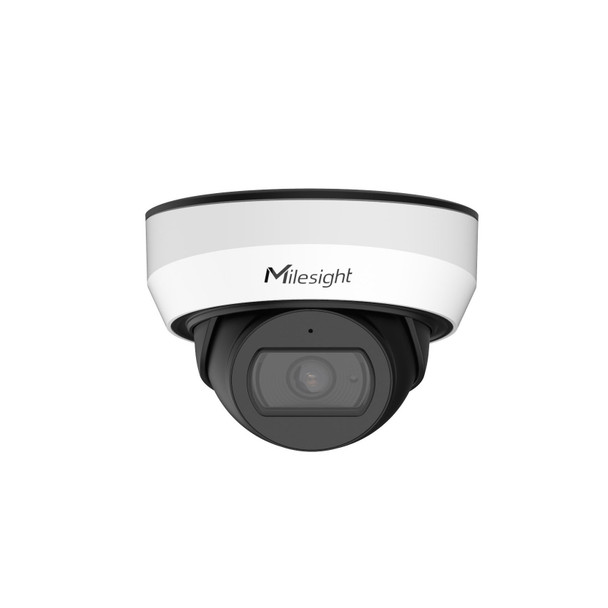

Milesight MS-C2975-PD 2MP AI IR Mini Vandalproof Turret IP Cameras

Milesight MS-C2975-PD 2MP AI IR Mini Turret IP Security Camera is a compact yet solid choice, rich with attributes for professional network surveillance system demands. The device incorporates the full range of desirable features including superior low light performance with absolute IR night vision in up to 30fps full 1080p HD video. Both H.265 or H.264 video compression selections are available and a built-in mic promise comprehensive scene awareness. Units also boast the latest Artificial Intelligence for enhanced efficiency yielding the most accurate detection methods to date and there is more. Everything from ONVIF support for third party security camera system integration to a rugged, weatherproof and vandalproof design equipped with 3-axis camera gimbal ensure flexible adaptation to all sorts of install demands. Milesight MS-C2975-PD-J Turret includes a built-in junction box for even more professional, clean installations.



Milesight MS-C2975-PD Main Features:

Milesight MS-C2975-PD Specifications:



2MP NDAA AI Weather-proof Mini Turret Network Camera

Image Sensor: 1/2.8" Progressive Scan CMOS

Min. Illumination Color: 0.002 Lux @ F1.2, Color: 0.005 Lux @ F1.6, B/W: 0 Lux with IR on

WDR 120dB Super Wide Dynamic Range

Lens: 2.8mm (Default) 4mm or 6mm (special order) @ F1.6

Field of View: HFOV 111°/ DFOV 128°/ VFOV 61°(2.8mm)

               HFOV 91°/ DFOV 106°/ VFOV 50°(4mm)

Shutter Time: 1/100000s~!1s

Day/Night Modes: Day/Night/Auto/Customize/Schedule

IR Night Vision Distance: Up to 25m

S/N: >55dB

Video Max. Image Resolution: 1920x1080 / 1080P

Frame Rates Per Stream:

Main Stream:

60Hz: 60fps@ (1920x1080) (Optional R Series), 30fps@ (1920x1080, 1280x960, 1280x720, 704x576)

50Hz: 50fps@ (1920x1080) (Optional R Series), 25fps@ (1920x1080, 1280x960, 1280x720, 704x576)

Secondary Stream:

60Hz: 30fps @ (704x576, 640x480, 640x360, 352x288)

50Hz: 25fps @ (704x576, 640x480, 640x360, 352x288)

Tertiary Stream:

60Hz: 30fps @ (1280x720, 704x576, 640x480, 640x360, 352x288)

50Hz: 25fps @ (1280x720, 704x576, 640x480, 640x360, 352x288)

Video Compressions: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)

Privacy Masking: Up to 4 areas

ROI: Up to 8 areas

Image Settings: Saturation/Brightness/Contrast/Sharpness

Interface Ethernet: 1*RJ45 10M/100M Ethernet Port

Audio Interface: Built-in Microphone

Audio Compression: G.711/AAC/G.722/G.726

Audio Sampling Rate: 8/16/32/48KHz

Audio Bit Rate: 16~256kbps

Network Storage: NAS (Support NFS, SMB/CIFS), ANR

Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

Intelligent Analytics

Video Analysis: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed

People Counting & Report: Count the number of people entering or exiting

System

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB

Advanced Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur

SIP/VoIP Support: Yes, Voice & Video-over-IP

Event Trigger: Motion Detection, Network Disconnection, etc.

Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.

System Compatibility: ONVIF Profile G & S & T, API

General Working Temperature -40°~60°C

Working Humidity: 0~90%(non-condensing)

Power Supply: PoE(802.3af)

Power Consumption: 3W MAX, 5W MAX (With IR on)

Weather Proof: Up to IP67-rated for weather-resistant performance

Housing Vandal-proof: IK10-rated metal housing

Weight: 600g (Junction Box Version) / 400g (Cable Out Version)

Dimensions: 108mm X 96.5mm (Junction Box Version) / 106mm X 76.5mm (Cable Out Version)

Warranty: 3 Years (5 Year Option)
