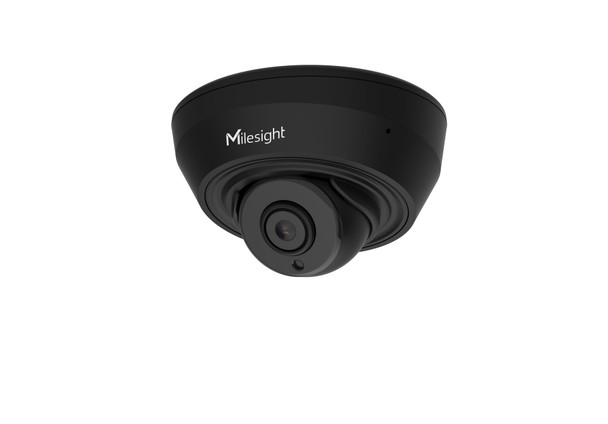

Milesight MS-C2983-PD 2MP AI IR Mini IP Turret Security Camera

Milesight MS-C2983-PD 2MP AI IR Mini IP Turret Security Camera is a compact network surveillance solution packed with professional attributes. Available in multiple versions including different lens options and white (Default) or black (special order) this IP security camera is well suited for all types of projects, easy to install and boast an excellent quality construction with high performance plus affordable cost.

Milesight MS-C2983-PD Main Features:

• 2MP / 1080p 1920*1080 @30fps (60fps R series special order)
• Fixed Lens 2.8mm for HFOV 111° DFOV 128° VFOV 61°
• Color: 0.002Lux @F1.2" O Lux B/W IR ON
• Wide Dynamic Range: 120dB
• IR Night Vision to 20m
• AI (Artificial Intelligence) Vehicle/Human Detection
• Multiple Pro Video Analytics
• Built-in Mic - Multiple Audio Codecs
• Micro SD Card Support
• Multiple ONVIF Formats
• White Color Casing (Black Special Order)
• PoE Power over Ethernet - Low Power
• Optional In-Ceiling Mount Accessory Available
• NDAA Compliant

Milesight MS-C2983-PD More Specifications:

2MP AI IR Mini Turret Network Camera
Image Sensor:1/2.8" Progressive Scan CMOS
Min. Illumination- Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens: 2.8mm (Default), 4mm or 6mm (optional) @ F1.6
Lens Mount: M12
Field of View: H 111°/D 128°/V 61°(2.8mm), H 91°/D 106°/V 50°(4mm), H 55°/D 63°/V 32°(6mm)
Shutter Time: 1/100000s ~ 1s
Day/Night Modes: Day/Night/Auto/Customize/Schedule
IR Distance Up to 20m
S/N: >55dB
Video Max. Image Resolution: 1920x1080
Frame Rates 60Hz: 60fps@(1920x1080)( 60fps with Optional R Series), 30fps @(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps @ (1920x1080)(Optional for R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream -60Hz: 30fps @ (704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream 60Hz: 30fps @ (1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compressions: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps ~ 16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio Interface Built-in Microphone
Network Network Storage: NAS(Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rates: 8/16/32/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: N/A
Intelligent Analytics: Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Image Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & Q & S & T, API
General Working Temperature -40° ~ 60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3af)
Power Consumption: 2.6W MAX, 4.6W MAX (With IR on)
Weight: 200g
Dimensions: Φ97.8mm X 57.9mm
Warranty: 3 Years (5 Year Option)
Optional In-Ceiling Mount Accessory Available
NDAA Compliant
