Milesight MS-C4441-X36RPE 2k (4MP) AI 36X Speed Dome IR PTZ IP Security Camera

Milesight MS-C4441-X36RPE 4MP AI 36X Speed Dome IR PTZ IP Security Camera delivers next generation performance and technology advances setting it apart from the competition. To begin the device offers double that of real-time video speeds at up to 60fps at full 4MP or 2K QHD and includes an exceptionally large image sensor yielding top notch image clarity with superior low light performance. Its image enhancements are also further improved thanks to powerful IR night vision, Wide Dynamic Range as well as high efficiency compression selections like H.265+, H.265, H.264+ and H.264. The device provides even more unique technical advantages like plug-in free web browser support or the latest A.I. enhanced detection methods for superior video security system solutions. The Pan-Tilt-Zoom is equipped with an Extra Long Range 42x Optical Zoom and an optional model (MS-C4441-X36RPE-W) including Smart Rain Sensing Wiper is available offering users all premium perks in modern IP surveillance.

Users and integrators alike will likewise find the full set of professional Pan-Tilt-Zoom functionalities including high capacity of preset positions, patrols and patterns, high speed, high accuracy movement to traditional RS-485 control interface. Also built in a weatherproof construction with wide temperature range and surge protection for top of capabilities in all sorts of environments. Special order models including Wiper and Vandalproof Construction are also available. There is plenty more too, such a ONVIF, SIP and RTMP protocols enabling all sorts of integration capabilities with greater easy including surveillance to live broadcast.

Milesight MS-C4441-X36RPE Main Features:

• 1/1.8" 4MP (2K) 2688x1520 @ 60fps Supreme Frame Rate
• 36X AF Optical Zoom Lens 5.7~205.2mm / HFOV 63° ~ HFOV 3° / VFOV 38° ~ VFOV 1°
• Color: 0.005 Lux @F1.4 / B/W: 0 Lux IR On
• Super WDR 120dB
• IR Night Vision Up to 300m
• Efficient Video H.265+, H.265, H.264+, H.264
• 360° endless Pan, 90° auto flip Tilt
• Pan Manual Speed: 0.1°~400°/s, Preset Speed: 400°/s
• Tilt Manual Speed: 0.1°~320°/s, Preset Speed: 320°/s
• 255 Preset Points
• 8 Patrols, 48 presets per patrol, 4 Patterns
• Supports Micro SD card 1TB max
• RS-485 Control Support
• Alarm I/O 4/2 For External Sensors/Relays
• Audio I/O For External Microphone/Speaker
• A.I. (Artificial Intelligence) Enhanced Human/Vehicle Detection/Classification
• Supports Video Content Analysis & People Counting
• Wall Mount Bracket A41 (Default)
• Pendant Mount Bracket A42 (Special Order)
• IP66 Weatherproof rating
• IK10 High Impact version (Special Order)
• AC 24V or PoE+ Power Input
• 6KV Surge Protection

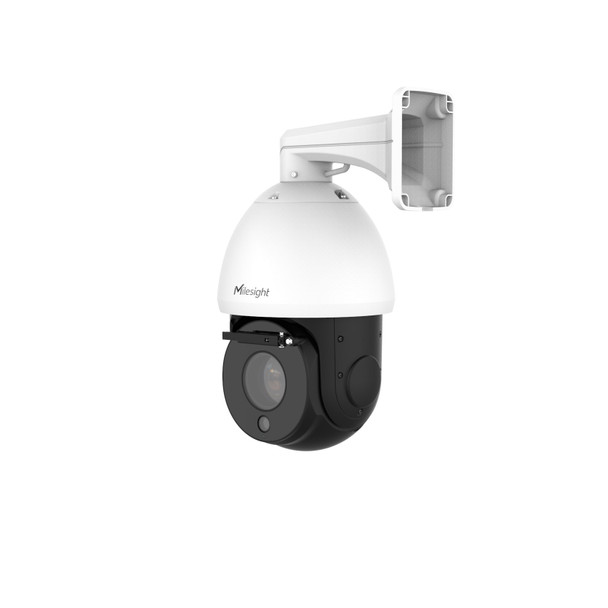

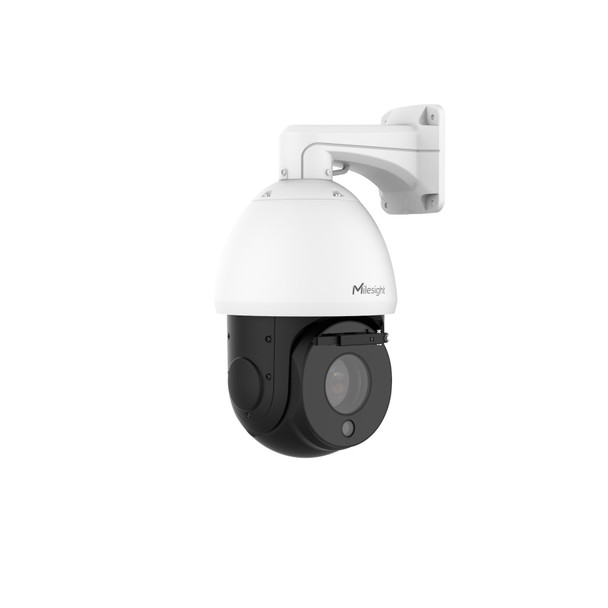

• OPTIONAL SMART Rain-sensing Wiper Model Available: MS-C4441-X36RPA-W
• NDAA COMPLIANT

Milesight MS-C4441-X36RPE Specifications:

4MP NDAA AI 36X Speed Dome Network Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @F1.4, B/W: 0 Lux with IR on
WDR: 120dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
S/N: >55dB
Digital Zoom: 16X
Lens Focal Length: 5.7~205.2mm, 36X Optical Zoom Lens
Zoom Speed: Approx 7s(Wide-Tele)
Field of View: HFOV 63° ~ HFOV 3°/DFOV 69° ~ DFOV 3°/VFOV 38° ~ VFOV 1°
Focus Control: Auto/Semi-Auto/Manual
Minimum Working Distance: 1500/1500mm (Wide/Tele)
Aperture: F1.55~F4.8
Iris Control: Auto
PTZ Pan Range/Pan Speed 360° endless/ Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s
Tilt Range/Tilt Speed: -5°~90° (Auto Flip)/ Tilt Manual Speed: 0.1°~320°/s, Tilt Preset Speed: 320°/s
Proportional Zoom: Support
Preset Quantity: 300
Patrol: 8 Patrols, up to 48 presets each patrol
Pattern: 4 Patterns
Power Off Memory: Support
Other Function: Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Night Vision Irradiation Distance: Up to 300m
Irradiation Angle: Auto/Manual
Video Max. Image Resolution: 2688x1520 (4 Megapixel / 2K)
Primary Stream:
60Hz/50Hz: 90fps@ (2688x1520, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz/50Hz: 90fps@ (704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Access Support: IE/Firefox/Chrome/Safari Browser
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1
Alarm I/O: 4/2
RS485: Support
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Intelligent Analytics / Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
Edge Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Condition Temperature: -40° ~ 60° C / Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3at)/ AC 24V/3A ±10%
Power Consumption: 12W MAX/ 23W MAX (With IR on)
Weather Proof/Housing Up to IP66-rated for Weather-resistant Performance
Vandal-proof IK10-rated Metal Housing (Special Order Option)
Wiper (Special Order Option): Support
Heater: Support
Surge Protection: 6KV
Dimensions/Weight: Φ205mm X 308mm / 4Kg
Warranty: 2 Years/ (3 Years Optional)
