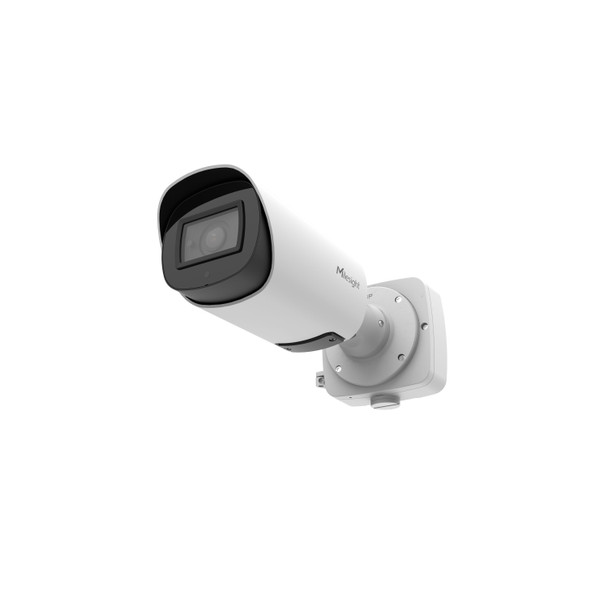

Milesight MS-C4466-RFPE 4MP AI Pro Plus IR Bullet IP Security Camera

Milesight MS-C4466-RFPE 4MP AI Pro Plus IR Bullet IP Security Cameras present an industry leading option for professional surveillance and other pro-video demands. Harnessing a large format Sony Starvis 4-Megapixel Image Sensor with superb low light capabilities while the device also generates up to double real-time video frame rates while incorporating powerful image enhancements like highly rated WDR, Defog to Digital Noise Reduction (DNR) for absolutely impressive clarity throughout all types of challenging lighting conditions. Likewise cutting-edge, high-quality video and audio compression methods like H.265 or AAC are all also on-board. Built with a motorized lens yielding super wide to semi-telephoto view adjustments, the Milesight Pro Plus Bullet completes the common core set of features with an above average, high-powered, long-range IR Night Vision.

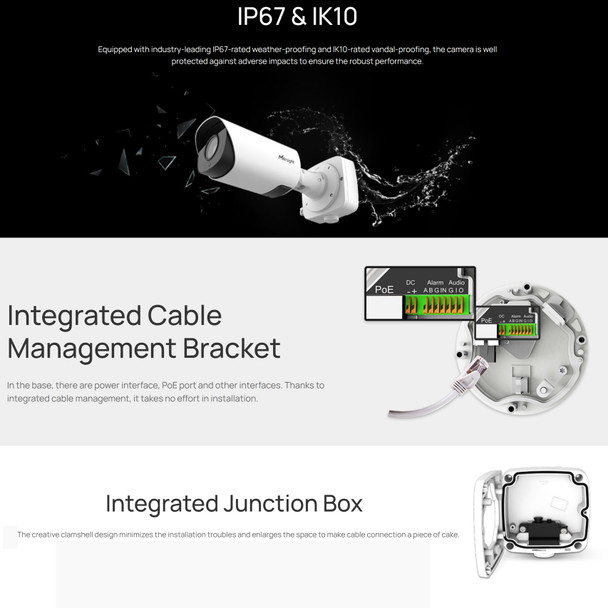

The Milesight MS-C4466-RFPE 4MP AI Pro Plus IR Bullet IP Security Camera furthermore includes diverse functions supporting everything from stand-alone operation to 3rd party system integration with truly pro-level attributes. From High-Capacity edge-storage via on-board micro-SD slot to support for numerous IT protocols and standards like ONVIF, RTMP, RTSP, SIP, and more, this bullet camera is clearly at the top of its class in the market. Added A.I. (Artificial Intelligence) empowered layers of video analytics supporting everything from human and vehicle classification to enhanced detection capabilities of several types. In every aspect, the Milesight Pro Plus Bullet IP Cameras are produced to grant top tier quality and performance, units are constructed to IP67 weatherproof, IK10 vandalproof rating and include a built-in cable junction box for reliable, attractive install.

Milesight MS-C4466-RFPE 4MP AI Pro+ 5x IR Bullet IP Camera

• 1/1.8" 4MP Sensor for 2K or 2688x1520 @ 60fps
• Special Order 90FPS option Supreme Frame Rate
• Motorized lens: 3.6~10mm - HFOV 100° ~ HFOV 45°/ VFOV 57° ~ VFOV 25°
• Powerful IR Night Vision 65m (100m & 7~22mm Lens Special Order)
• Color: 0.002 Lux @F1.4 / B/W: 0 Lux IR ON
• Super Wide Dynamic Range (WDR 140dB)
• A.I. (Artificial Intelligence) Vehicle/Human Detection
• 3-Axis Camera Orientation
• Multi-Web Browser Support
• ONVIF for 3rd Party Security Systems
• Micro SD Card Support
• Audio External I/O device
• Alarm/Relay External I/O device support
• White Housing
• Weatherproof up to IP67 rating
• Vandalproof High Impact Rating
• A62 Junction Box Included
• PoE OR 12VDC Power Support

Milesight MS-C4466-RFPE Specifications:

Camera
NDAA AI Motorized Pro Bullet Plus Network Camera
Image Sensor: 1/1.8″ Progressive Scan CMOS
Min. Illumination: Color: 0.002Lux@F1.4 B/W: 0 Lux with IR on
WDR 140dB Super Wide Dynamic Range
Lens: Motorized 3.6~10mm @ F1.4 - P-Iris (Optional)
Mount: Φ14
Field of View: H100°~H45°/ D116°~D51°/ V57°~V25°
Shutter Time: 1/100000s~1s
IR Distance Up to 65m
Day/Night Mode: Day/Night/Auto/Customize/Schedule
S/N: >55dB

Video
Max. Image Resolution: 2688x1520 (2k / 4-Megapixel)
Primary Stream:
60Hz: 60fps@ (2688x1520, 2304x1296, 1920x1080, 1280x720)
50Hz: 50fps@ (2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream:
60Hz: 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI: Up to 8 areas
Image Setting: Brightness/Contrast/Saturation/Sharpness

Interface
Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1
Alarm I/O: 1/1

Network
Network Storage NAS (Support NFS, SMB/CIFS), ANR
Protocol: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionvG.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support

Intelligent Analytics
Video Analysis: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas

System
Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & M & S & T, API

General
Working Temperature: -40°~60° CC
Working Humidity: 0~95%(Non-condensing)
Power Supply: PoE (802.3af) / DC 12V±10%
Power Consumption:
6W MAX
8W MAX (With IR on)
Housing: Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance
Surge Protection: 4KV
Weight: 1630g
Dimensions: 301mm X 108mm X 126mm
Warranty: 3/5 Years
