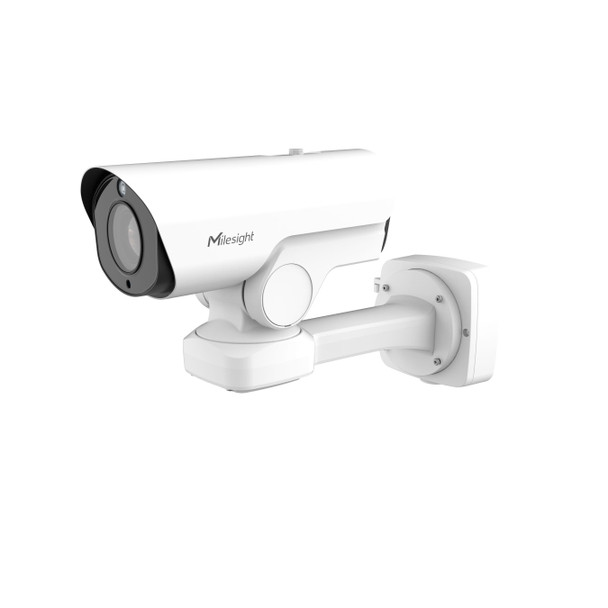

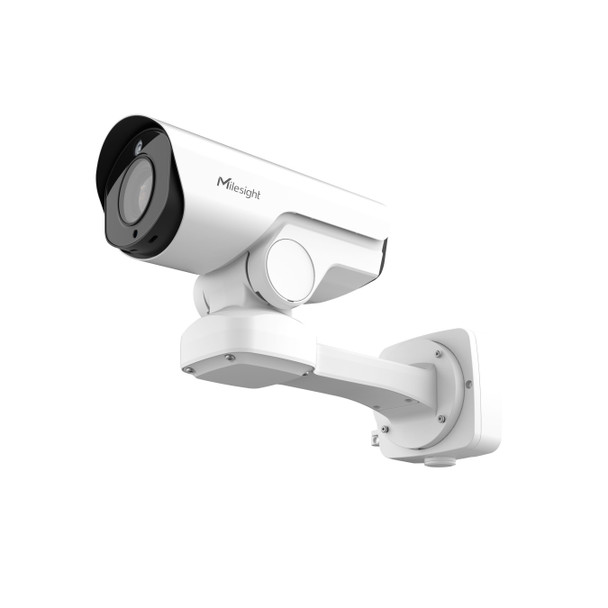

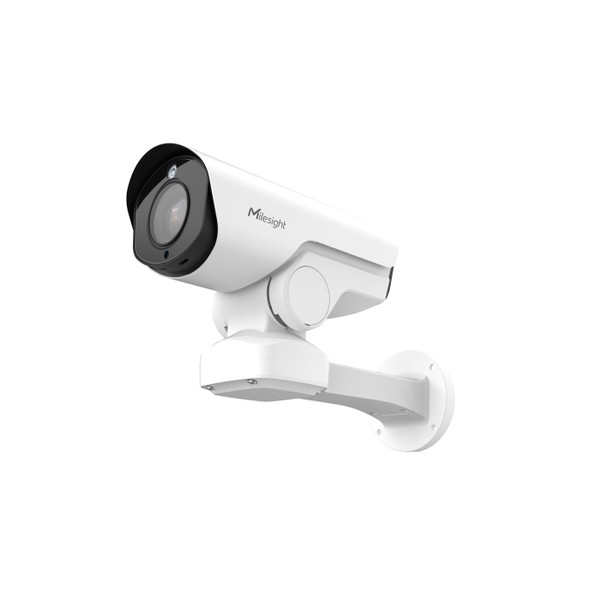

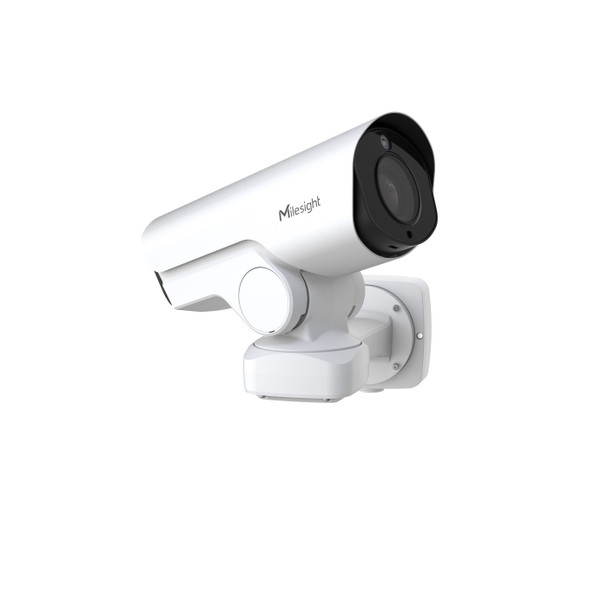

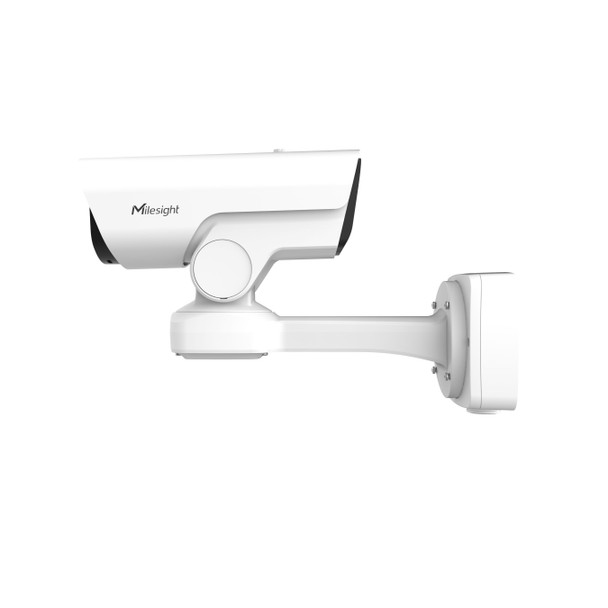

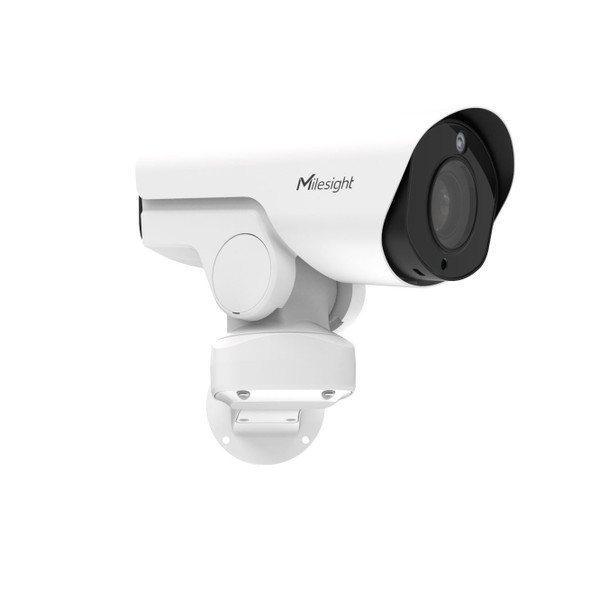

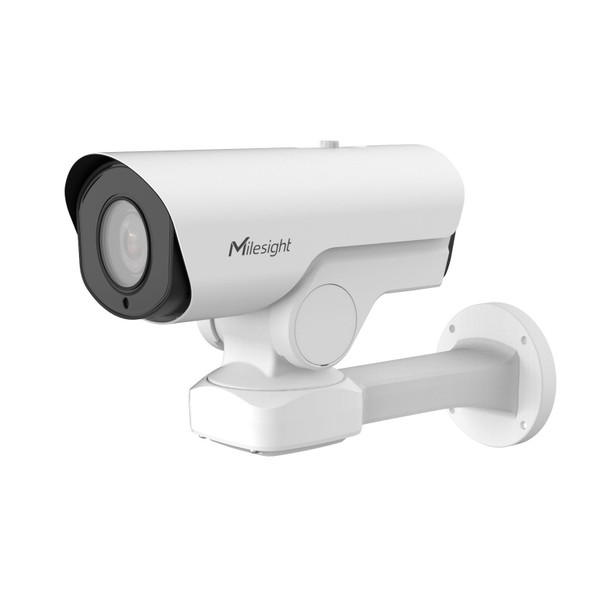

Milesight MS-C4467-X20RPE 4MP AI 20X PTZ IR Bullet IP Security Camera

Milesight MS-C4467-X20RPE 4MP AI 20X PTZ IR Bullet IP Camera is an upgraded version of Milesight's unique Pan-Tilt-Zoom Bullet PTZ series that features an extra-large image sensor for enhanced video performance and image quality. Delivering industry leading high frame rates of up to 60fps (2x real-time speeds) in full 2K QHD or 4-megapixel video the device combines powerful optical zoom, true day/night low light performance with high powered IR Night vision and WDR for round the clock imaging clarity in all types of demanding applications. The series provides the likes of traditional Pan-Tilt-Zoom Camera Systems in far more compact size, but benefits like above the horizon viewing to endless pan, high speed, high accuracy operation are all on-board. The other perks of Pro PTZs are also built-in like preset positions, pattern and patrol functions to those like I/O integration for external sensor, relay, microphone and speaker connections. Uses are wide and far with a full set of universal protocols like ONVIF compliance to SIP and RTMP allowing integration with 3rd party systems to live broadcast with ease. The device is weatherproof ready and allows flexible 12VDC or PoE power input for versatile deployment in all types of projects.

Milesight MS-C4467-X20RPE Main Features:

• 1/1.8" Image Sensor 4MP 2688x1520 (2k QHD) @ 90fps Supreme High Frame Rate
• 20X AF Optical Zoom Lens 6.4~128mm HFOV 60° ~ HFOV 3° / VFOV 37° ~ VFOV 1°
• Color: 0.001 Lux @ F1.2 / B/W: 0 Lux IR ON
• Super Wide Dynamic Range (WDR 120dB)
• Powerful Long Range IR Night Vision up to 180m
• High Efficiency Video H.265+, H.265, H.264+, H.264
• A.I. based Video Content Analysis Human/Vehicle, People Counting
• ONVIF for Universal Security Camera System Support
• Next-generation PTZ Motor, PTZ Position Display, 3D positioning
• 300 Preset Points, 8 Patrols, 48 presets per patrol; 4 Patterns
• 360° endless Pan, Pan Manual Speed: 0.1°~60°/s, Preset Speed: 60°/s
• -45°~30° Tilt, Tilt Manual Speed: 0.1°~30°/s, Preset Speed: 30°/s
• Multi-port: Alarm I/O and Audio I/O for External Devices
• Supports Micro SD card (1TB max)
• IP66 Weatherproof Rated for harsh outdoor environments
• Wide Operating Temperature Range: -40° ~ 60° C
• Supports PoE+ Or 12VDC Power Source
• NDAA Compliant

MS-C4467-X20RPE Specifications:

4MP NDAA AI 20X PTZ Bullet Plus Network Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.002 Lux @F1.6, B/W: 0 Lux with IR on
WDR 120dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
Digital Zoom: 16X
S/N: >55dB
Lens Focal Length: 6.4~128mm, 20X Optical Zoom
Zoom Speed: Approx 5s(Wide-Tele)
Field of View: HFOV 60° ~ HFOV 3°/ DFOV 67° ~ DFOV 4°/ VFOV 37° ~ VFOV 1°
Focus Control: Auto/Semi-Auto/Manual
Minimum Working Distance: 1000/2000mm (Wide/Tele)
Aperture: F1.6~F4.0
Iris Control: Auto
PTZ:
Pan Range/Pan Speed: 360° endless/ Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed: -45°~30°/ Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional Zoom: Support
Preset Quantity: 300
Patrol: 8 Patrols, up to 48 presets each patrol
Pattern: 4 Patterns
Power Off Memory: Support
Other Functions: Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Night Vision Irradiation Distance: Up to 180m
Video Max. Image Resolution: 2688x1520 (2K QHD / 4MP)
Frame Rates Per Stream:
Primary Stream:
60Hz: 60fps@ (2688x1520,2304x1296,1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@ (2688x1520,2304x1296,1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz: 30fps@(704x576), 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576), 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream
60Hz: 30fps @ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps @ (1280x720, 704x576, 640x480, 640x360, 351c288, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Access Support: IE/Firefox/Chrome/Safari Browser
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1 Input/Output for External Microphone and Speaker
Alarm I/O: 1/1 Input/Output for External Sensor and Relay
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics / Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
On-board Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
3rd Party Security System Compatibility: ONVIF Profile G & M & S & T, API
Operating Temperature Range: -40° ~ 60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE (802.3at) / DC 12V/3A±10%
Power Consumption: 14W MAX, 24W MAX (With IR on)
Weather Proof Up to IP66-rated for Weather-resistant Performance
Dimensions: 110mm X 337mm X 220mm
Weight: 2.9Kg
Warranty: 2 Years (3 Years Optional)
