Milesight MS-C4472-RFPE 4MP AI IR Vandal Dome IP Security Camera

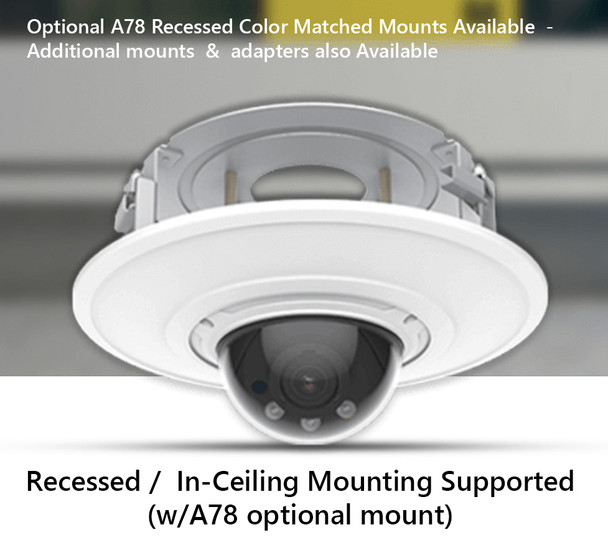

Milesight MS-C4472-RFPE 4MP AI IR Vandalproof Dome IP Security Camera delivers the best balance of QHD video, low light performance, robust build and smart functions. Built on a large format, Sony Starvis 4-Megapixel Image Sensor device provides optimal video detail and clarity with added video enhancements like Super 140dB Wide Dynamic Range. Also equipped with high powered, smart IR night vision the device promises unfailing video security coverage through all sorts of challenging lighting conditions. Further, unique benefits like a built-in Microphone, high-capacity edge storage and plug-in free web browser support, the Milesight Pro Vandal Dome IP Cameras can deliver powerful surveillance even stand-alone. Alternatively, a wealth of rich integration abilities is equipped such as ONVIF, RTSP, RTMP or SIP enable vast 3rd party system support including security and otherwise. Boasting a rugged, wide temp, vandal-proof and weatherproof design with 3-axis adjustment, the Milesight MS-C4472-RFPE 4MP AI IR Vandal Dome IP cameras can easily adapt to numerous surface angles while optional accessories promise professional install solutions including in-ceiling, wall mount to pole or pipe mounts. Empowered with a range of A.I. (Artificial Intelligence) deep learning Video Analytics, this Milesight Vandal Dome Security Camera provides the cutting edge in advanced video surveillance.

Milesight MS-C4472-RFPE Main Features:

• (1/1.8") 2K / 4-Megapixel (2688x1520) @ 60fps Superior Frame Rates
• Motorized lens: 2.7~13.5mm - P-Iris: HFOV 96° ~ HFOV 42° / VFOV 55° ~ VFOV 23°
• Special Order Options such as 7~22mm Lens and 90m Infrared Range
• Powerful IR Night Vision 50m
• Color: 0.002 Lux @F1.4 / B/W: 0 Lux IR ON
• Super WDR 140dB
• A.I. (Artificial Intelligence) Vehicle/Human Detection

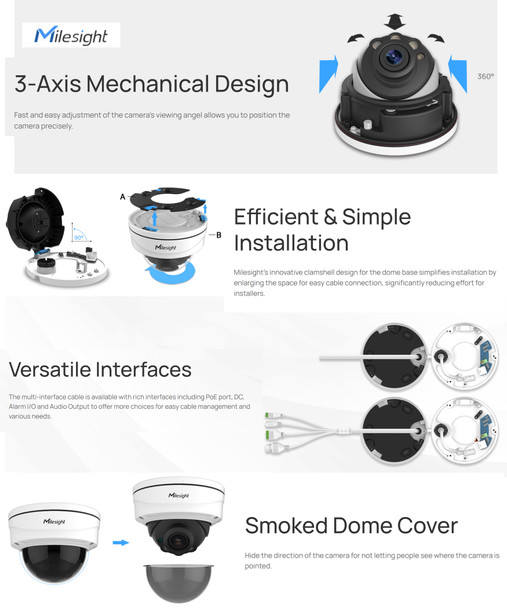

• 3-Axis Camera Orientation
• ONVIF for 3rd Party Security Systems
• Micro SD Card Support
• Built-in Microphone
• Audio External I/O device
• Alarm/Relay External I/O device support

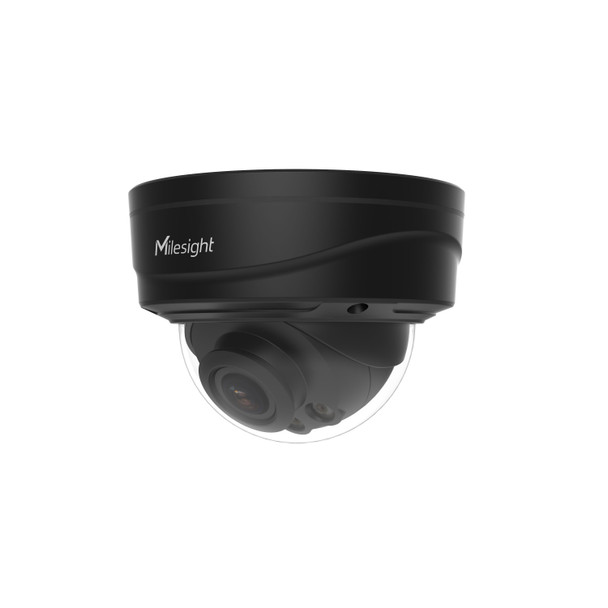

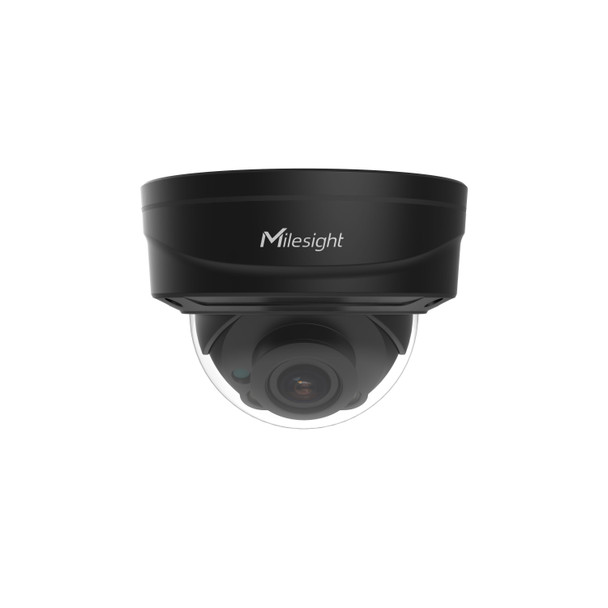

• Black Housing Optional (White Default)
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10 rating
• PoE OR 12VDC Power Support

Milesight MS-C4472-RFPE Specifications:

4MP NDAA AI Motorized Pro Dome Network Camera
Image Sensor: 1/1.8″ Progressive Scan CMOS
Min. Illumination:
Color: 0.002 Lux @ F1.4
B/W: 0Lux with IR on
WDR: 140dB Super WDR
Lens: Motorized 3.6~10mm@F1.4
P-Iris (Optional)
Mount: Φ14
Field of View: H96°~H42°/D111°~D48°/V55°~V23°
Shutter Time: 1/100000s~1s
IR Distance Up to 50m
Day/Night Mode: Day/Night/Auto/Customize/Schedule
S/N: >55dB
Video:
Max. Image Resolution: 2688x1520 (2K / 4-Megapixel)
Primary Stream:
60Hz: 60fps@ (2688x1520, 2304x1296, 1920x1080, 1280x720)
50Hz: 50fps@ (2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream:
60Hz: 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream:
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI: Up to 8 areas
Image Setting: Brightness/Contrast/Saturation/Sharpness

Interface
Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: Built-in Microphone and 1 Audio Output interface
Alarm I/O: 1/1

Network
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Protocol: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP,
SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

Audio
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support

Intelligent Analytics:
Video Analysis: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face: Attribute Recognition, Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap,
Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas

System
Storage: Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & M & S & T, API

General
Working Temperature: -40°C~60°C
Working Humidity: 0~95%(Non-condensing)
Power Supply: PoE (802.3af) / DC 12V±10%
Power Consumption: 6W MAX
8W MAX (With IR on)
Weather Proof: Up to IP67-rated for Weather-resistant Performance
Housing: Vandal-proof IK10-rated Metal Housing
Weight: 1100g
Dimensions: Φ143mmX108.4mm
Warranty: 3/5 Years
