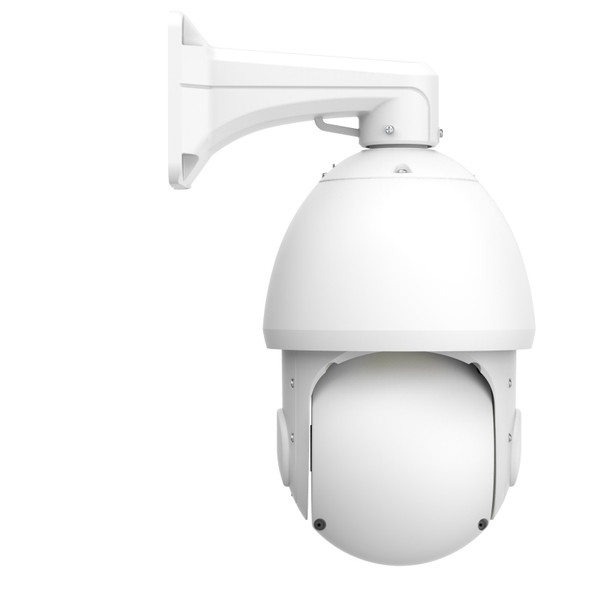

Milesight MS-C5341-X25PE 5MP AI 25X Speed Dome IR PTZ IP Security Camera

Milesight MS-C5341-X25PE 5MP AI 25X Speed Dome PTZ IP Camera is a full size, full featured Pan-Tilt-Zoom system for professional system demands. Outfitted with industry leading frame rates of up to 60fps in full 3K or 5-megapixel is only the beginning of advantages realized by users of this unit. The PTZ melds together of course top-notch functions ranging from cutting edge video compressions to absolute performance including long range IR Night Vision. Users will find high speed, high accuracy movement along with all the perks expected of such Speed Domes such as a high capacity of preset positions to support for patterns and patrols. Even old school RS-485 2 wire control for precise movements via PTZ joystick to next generation plug-in free web browser support help ensure the full range of operational options. Additionally, the open-platform support for protocols like ONVIF, SIP and RTMP promise easy integration for all sorts of professional video systems demands even beyond just surveillance. Advanced A.I. enhanced event detection to rich external device support for sensor, relay, microphone and speakers are all on-board. Furthermore, a robust surge protection and weatherproof construction with wall mount bracket are all included by default while special order options can support IK10 vandalproof high impact design or even feature an integrated Wiper.

Milesight MS-C5341-X25PE Main Features:

• 1/2.8" 5MP / 2592x1944 @ 30fps
• Focal Length: 4.8~120mm, 25X Optical Zoom FOV: HFOV 57° ~ HFOV 2.8°/ VFOV 43.8° ~ VFOV 1.8°
• Color: 0.008 Lux @F1.5 / B/W: 0 Lux IR On
• Super WDR 120dB
• IR Night Vision Up to 200m
• Efficient Video H.265+, H.265, H.264+, H.264
• 360° endless Pan, 90° auto flip Tilt
• Pan Manual Speed: 0.1°~400°/s, Preset Speed: 400°/s
• Tilt Manual Speed: 0.1°~320°/s, Preset Speed: 320°/s
• 255 Preset Points
• 8 Patrols, 48 presets per patrol, 4 Patterns
• Supports Micro SD card 1TB max
• RS-485 Control Support
• Alarm I/O 4/2 For External Sensors/Relays
• Audio I/O For External Microphone/Speaker
• A.I. (Artificial Intelligence) Enhanced Human/Vehicle Detection/Classification
• Supports Video Content Analysis & People Counting
• Wall Mount Bracket A41 (Default)
• Pendant Mount Bracket A42 (Special Order)
• IP66 Weatherproof rating
• IK10 High Impact version (Special Order)
• AC 24V or PoE+ Power Input
• 6KV Surge Protection
• NDAA COMPLIANT

Milesight MS-C5341-X25PE Specifications:

5MP NDAA AI 25X AI Speed Dome Network Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.008 Lux @F1.5, B/W: 0 Lux with IR on
WDR 120dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Modes: Day/Night/Auto/Customize/Schedule
S/N: >55dB
Digital Zoom: 16X
Focal Length: 4.8~120mm, 25X Optical Zoom
Zoom Speed: Approx 6s(Wide-Tele)
Field of View: HFOV 57° ~ HFOV 2.8°/ DFOV 69.8° ~ DFOV 3.6°/ VFOV 43.8° ~ VFOV 1.8°
Focus Control: Auto/Semi-Auto/Manual
Minimum Working Distance: 100/1500mm (Wide/Tele)
Aperture: F1.5~F3.5
Iris Control: Auto
PTZ Pan Range/Pan Speed: 360° endless/ Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s
Tilt Range/Tilt Speed: -5°~90° (Auto Flip)/ Tilt Manual Speed: 0.1°~320°/s, Tilt Preset Speed: 320°/s
Proportional Zoom: Support
Preset Quantity: 300
Patrol: 8 Patrols, up to 48 presets each patrol
Pattern: 4 Patterns
Power Off Memory: Support
Other Function: Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Night Vision Irradiation Distance: Up to 200m
Irradiation Angle: Auto/Manual
Video Max. Image Resolution: 1920x1080
Primary Stream:
60Hz/50Hz: 30fps@ (2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@ (1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz/50Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream:
60Hz/50Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Access Support: IE/Firefox/Chrome/Safari Browser
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1
Alarm I/O: 4/2
RS485: Support
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Intelligent Analytics / Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
Edge-Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
Operating Temperature Range: -40° ~ 60° C / Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3at)/ AC 24V/3A ±10%
Power Consumption: 11W MAX/ 27W MAX (With IR on)
Weather Proof Housing Up to IP66-rated for Weather-resistant Performance
Vandal-proof IK10-rated Metal Housing (Special Order Option)
Heater: Support
Wiper (Special Order Option): Support
Surge Protection: 6KV
Dimensions/Weight: Φ205mm X 308mm / 4Kg
Warranty: 2 Years/ (3 Year Optional)
