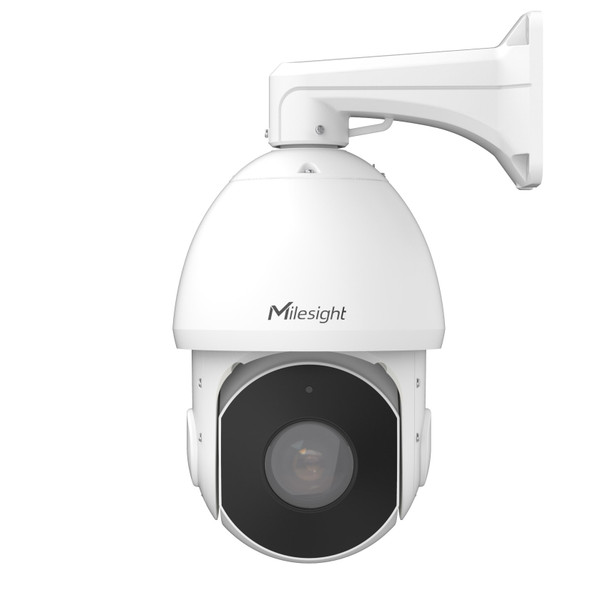

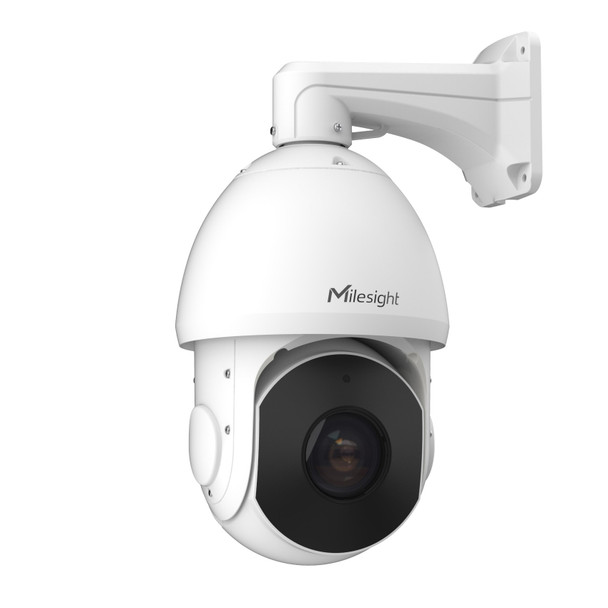

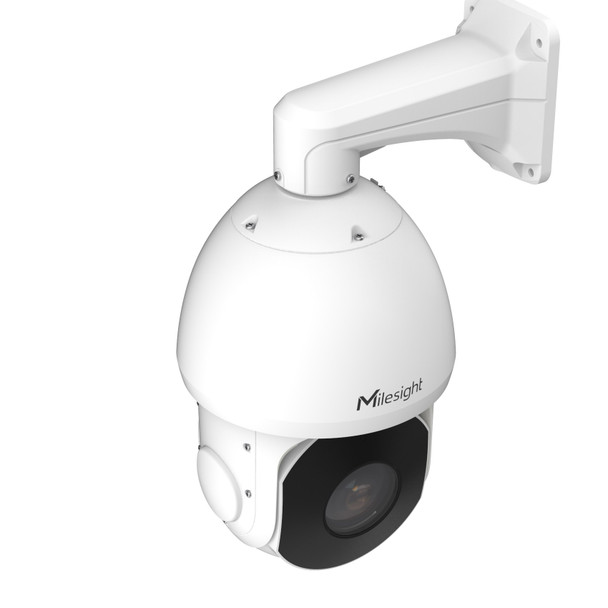

Milesight MS-C5341-X42PE 5MP AI 42X Speed Dome IR PTZ IP Security Camera

Milesight MS-C5341-X42PE 5MP AI 42X Speed Dome IR PTZ IP Security Camera delivers industry top performance with smart functions and abilities. Boasting real-time frame rates of up to 30fps in full 5-megapixel the device offers industry leading video capture in demanding high-speed applications. Additionally, the device has cutting edge video compression methods like H.264 and H.265 as well as other core factors like IR Night Vision and WDR. The unit is well equipped with all the professional Pan-Tilt-Zoom Camera attributes, but another highly notable attribute is it's 42x optical zoom lens (7~300mm) granting incredible long-range surveillance setting it far apart from others not to mentioned considering the price for performance. In addition, high speed movement and accuracy to high-capacity preset position support as well as patterns and patrols are all supported. Built to weatherproof construction with wide operating temperature range as well as surge protection the device also has special order models with Vandalproof high impact versions and Wiper options.

Milesight MS-C5341-X42PE Main Features:

• 1/2.8" 5MP / 2592x1944 @ 30fps
• 42X AF Optical Zoom Lens 7~300mm / HFOV 43° ~ HFOV 2° / VFOV 33° ~ VFOV 1°
• Color: 0.008 Lux @ F1.5 / B/W: 0 Lux IR On
• Super WDR 120dB
• IR Night Vision Up to 300m
• Efficient Video H.265+, H.265, H.264+, H.264
• 360° endless Pan, 90° auto flip Tilt
• Pan Manual Speed: 0.1°~400°/s, Preset Speed: 400°/s
• Tilt Manual Speed: 0.1°~320°/s, Preset Speed: 320°/s
• 255 Preset Points
• 8 Patrols, 48 presets per patrol, 4 Patterns
• Supports Micro SD card 1TB max
• RS-485 Control Support
• Alarm I/O 4/2 For External Sensors/Relays
• Audio I/O For External Microphone/Speaker
• A.I. (Artificial Intelligence) Enhanced Human/Vehicle Detection/Classification
• Supports Video Content Analysis & People Counting
• Wall Mount Bracket A41 (Default)
• Pendant Mount Bracket A42 (Special Order)
• IP66 Weatherproof rating
• IK10 High Impact version (Special Order)
• AC 24V or PoE+ Power Input
• 6KV Surge Protection

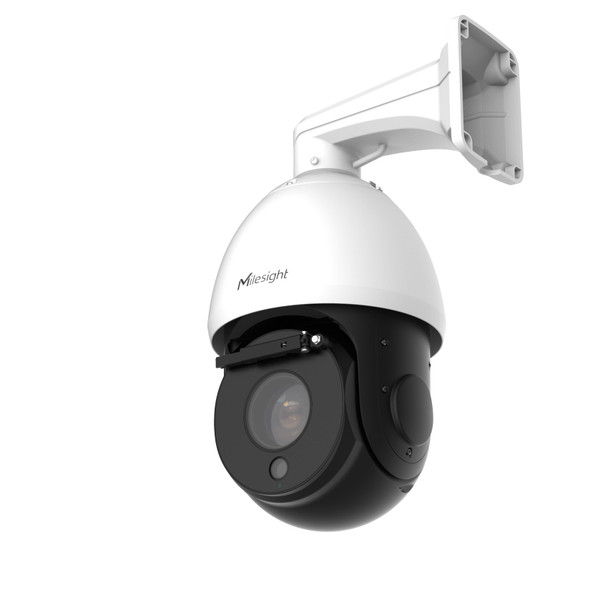

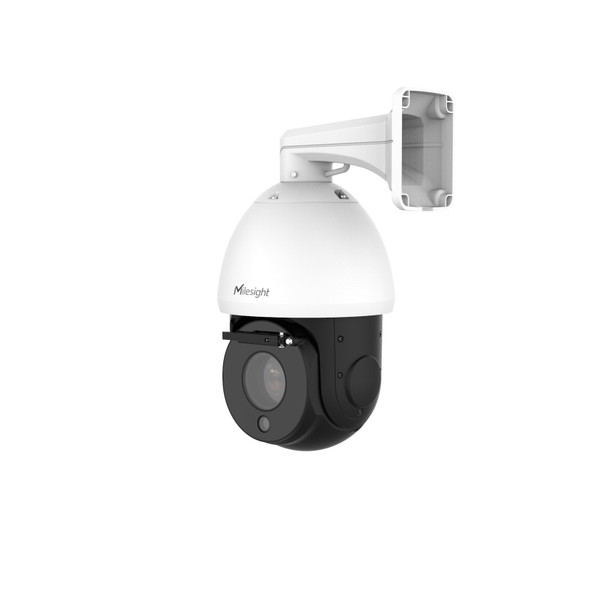

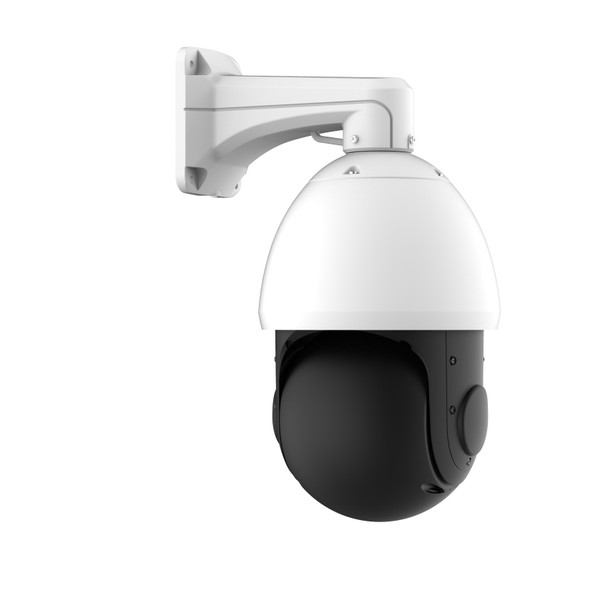

• OPTIONAL Smart Rain-sensing Wiper Model Available: MS-C5341-X42PE-W
• NDAA COMPLIANT

Milesight MS-C5341-X42PE Specifications:

5MP NDAA AI 42X Speed Dome Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002 Lux @F1.2, Color: 0.005 Lux @F1.8, B/W: 0 Lux with IR on
WDR: 120dB Super Wide Dynamic Range
Shutter Time: 1/100000s~1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
S/N: >55dB
Digital Zoom: 16X
Lens Focal Length: 7~300mm, 42X Optical Zoom
Zoom Speed: Approx 7s(Wide-Tele)
Field of View: HFOV 43° ~ HFOV 2°/DFOV 53° ~ DFOV 2°/VFOV 33° ~ VFOV 1°
Focus Control: Auto/Semi-Auto/Manual
Minimum Working Distance: 1200/1500mm (Wide/Tele)
Aperture: F1.8~F6.5
Iris Control: Auto
PTZ Pan Range/Pan Speed 360° endless/ Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s
Tilt Range/Tilt Speed: -5°~90° (Auto Flip)/ Tilt Manual Speed: 0.1°~320°/s, Tilt Preset Speed: 320°/s
Proportional Zoom: Support
Preset Quantity: 300
Patrol: 8 Patrols, up to 48 presets each patrol
Pattern: 4 Patterns
Power Off Memory: Support
Other Function: Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Night Vision Irradiation Distance: Up to 300m
Irradiation Angle: Auto/Manual
Video Max. Image Resolution: 2592x1944
Primary Stream:
60Hz/50Hz: 30fps@ (2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@ (1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream:
60Hz/50Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream:
60Hz/50Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Access Support: IE/Firefox/Chrome/Safari Browser
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio I/O: 1/1
Alarm I/O: 4/2
RS485: Support
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: Support
Intelligent Analytics / Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
Edge Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Condition Temperature: -40° ~ 60° C / Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3at)/ AC 24V/3A ±10%
Power Consumption: 12W MAX/ 23W MAX (With IR on)
Weather Proof/Housing Up to IP66-rated for Weather-resistant Performance
Vandal-proof IK10-rated Metal Housing (Special Order Option)
Wiper (Special Order Option): Support
Heater: Support
Surge Protection: 6KV
Dimensions/Weight: Φ205mm X 308mm / 4Kg
Warranty: 2 Years/ (3 Years Optional)
