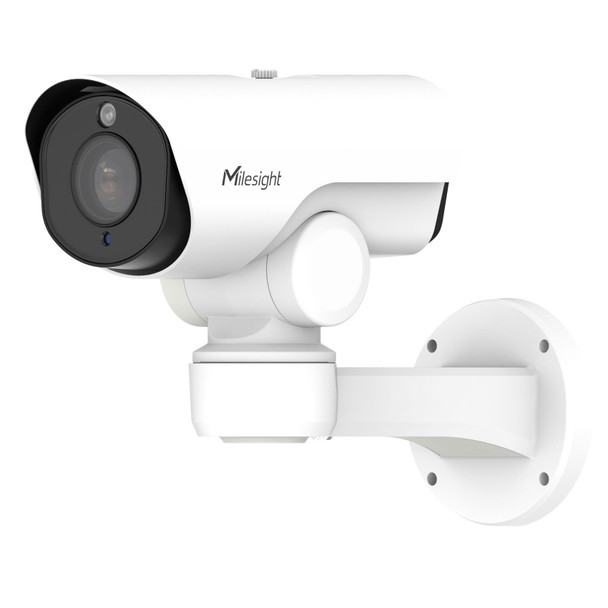

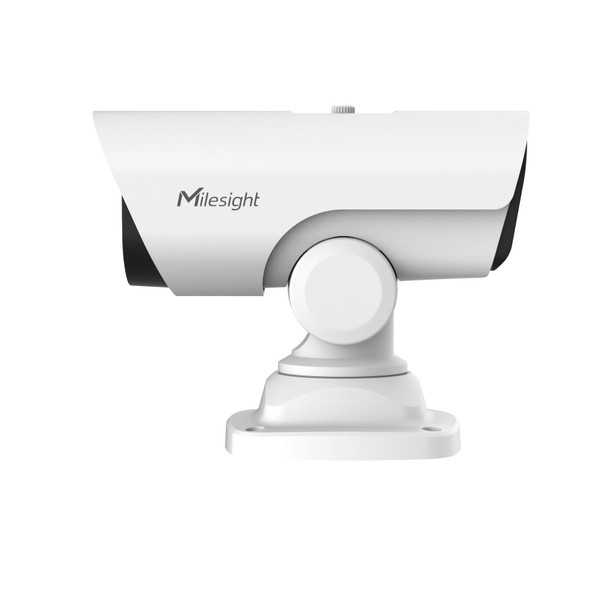

Milesight MS-C5361-X12PE 5MP A.I. 12X IR PTZ Bullet IP Security Camera

Milesight MS-C5361-X12PE 5MP AI 12X IR PTZ Bullet IP Camera delivers a super compact alternative solution to the traditional Pan-Tilt-Zoom Security Camera positioning system with features that rival and surpass. Built on a Sony Starvis Low Light 5-Megapixel Image Sensor, boasting real-time frame rates, high power IR Night Vision and image enhancements like 120dB WDR, this Milesight Bullet PTZ IP Camera ensures optimal image clarity in all types of lighting conditions. Offering rich system integration capabilities everything from ONVIF support to numerous IT protocols like SIP, RTSP or RTMP are all on board. Featuring a full function, plug-in free web browser interface to functions like high-capacity Edge-storage even stand-alone surveillance and video system demands are all within reach. Add in A.I. deep learning video content analysis or its white light LED illumination function and its clear to see why this device set new industry standards.

The Bullet PTZ is outfitted with a powerful 12x optical zoom, combined with continuous 360° pan and -45° to 30° tilt range enabling powerful active surveillance and comprehensive area coverage. From hundreds of preset positions or functions like 3D positioning to automated Patterns and Patrols or other auto functions like Auto-scan or Auto-Home, users and installers alike will find a highly capable device that satisfies countless demands. With a weatherproof IP66 build that is suited for wide temperature ranges plus a wall mount or pedestal mount support, the device is ready for all types of harsh conditions and unique install requirements.

MS-C5361-X12PE Main Features:

• 1/2.8" 5MP 2592x1944 (~3K) @ 30fps Real-time Frame Rates
• 12X AF Optical Zoom Lens 5.3~64mm (HFOV 57° ~ HFOV 4° / VFOV 44° ~ VFOV 1°)
• Color: 0.008 Lux @F1.6 and B/W: 0 Lux IR On
• True Wide Dynamic Range (WDR 120dB)
• Powerful Long Range IR Night Vision up to 140m
• High Efficiency Video H.265+, H.265, H.264+, H.264
• A.I. based Video Content Analysis Human/Vehicle, People Counting
• ONVIF for Universal Security Camera System Support
• 300 Preset Points, 8 Patrols, 48 presets per patrol; 4 Patterns; 3D positioning & more
• 360° endless Pan, Pan Manual Speed: 0.1°~60°/s, Preset Speed: 60°/s
• -45°~30° Tilt, Tilt Manual Speed: 0.1°~30°/s, Preset Speed: 30°/s
• Multi-port: Alarm I/O and Audio I/O for External Devices
• Supports Micro SD card (1TB max)
• IP66 Weatherproof Rated for harsh outdoor environments
• Wide Operating Temperature Range: -40° ~ 60° C
• Supports PoE+ Or 12VDC Power Source
• Wall Mount and Pedestal Mount Support
• NDAA Compliant

Milesight MS-C5361-X12PE AI IR Bullet PTZ IP Camera Specifications:

Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.008Lux@F1.6
B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s~1s
IR Distance Up to 140m
Digital Zoom 16X
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB
Lens
Focal Length 5.3~64mm, 12X Optical Zoom
Zoom Speed Approx 4s (Wide-Tele)
Field of View H57°~H4°/D69°~D5°/V44°~V1°
Focus Control Auto/Semi-Auto/Manual
Minimum Working Distance 1000/1500mm (Wide/Tele)
Aperture F1.6~F2.8
Iris Control Auto
PTZ
Pan Range/Pan Speed 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed -45°~30° / Tilt Manual Speed: 0.1°~25°/s, Tilt Preset Speed: 25°/s
Proportional Zoom Support
Preset Quantity 300
Patrol 8 Patrols, up to 48 presets each patrol
Pattern 4 Patterns
Auto Tracking Support
Power Off Memory Support
Other Function Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@ (2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@ (1920x1080, 1280x960, 1280x720)
50Hz: 25fps@ (2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@ (1920x1080, 1280x960, 1280x720)
Secondary Stream 60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1 (Optional)
Alarm I/O 1/1 (Optional)
Network
Network Storage NAS (Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,
Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots;
The attributes include Age, Gender, Glasses, Mask and Cap;
Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report Count the number of objects crossing the line, optionally human and vehicle,
Support regional people counting for up to 4 detection areas
System
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering,
AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input (Optional), Audio Alarm (Optional), etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output (Optional), SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility ONVIF Profile G & M & S & T, API
General
Working Temperature -40℃~60℃
Working Humidity 0~95%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V/2A±10%
Power Consumption 14W MAX / 20W MAX (With IR on)
Weather Proof Up to IP66-rated for Weather-resistant Performance
Weight 2Kg (Wall Mount) / 1.8Kg (Pedestal Mount)
Dimensions 160mmX273.5mmX210mm (Wall Mount) / 218mmX120mmX172mm (Pedestal Mount)
Warranty 2 Years / 3 Years (Optional)
