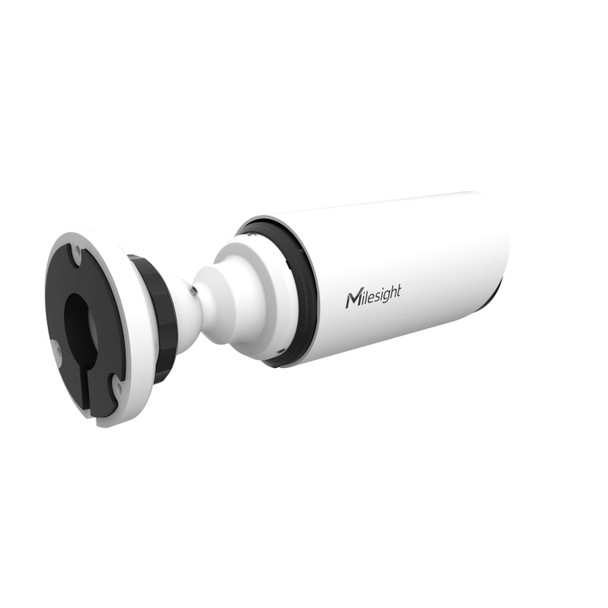

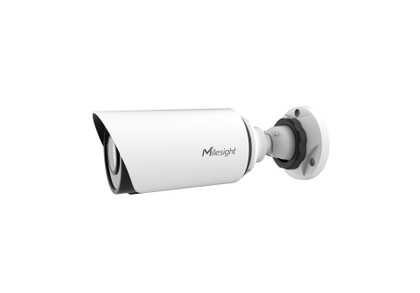

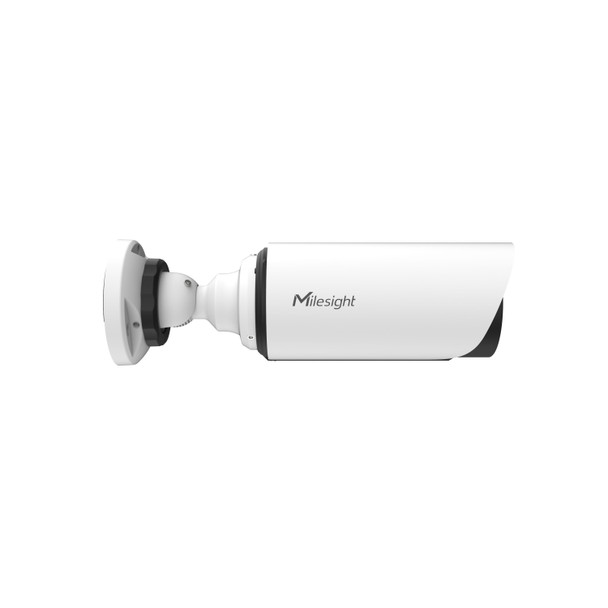

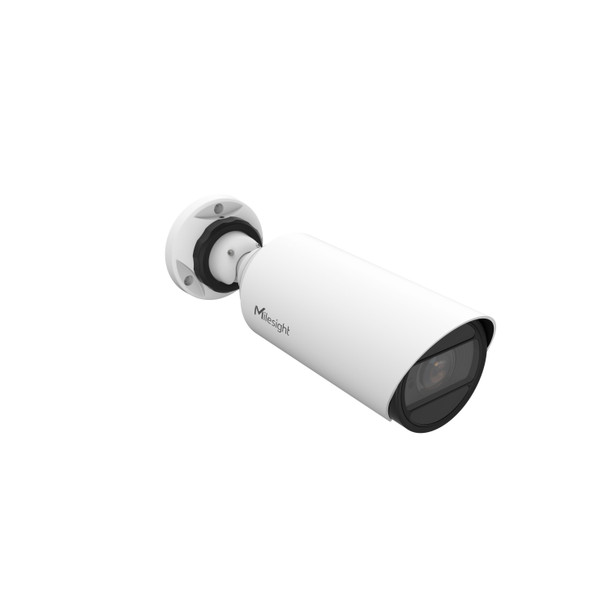

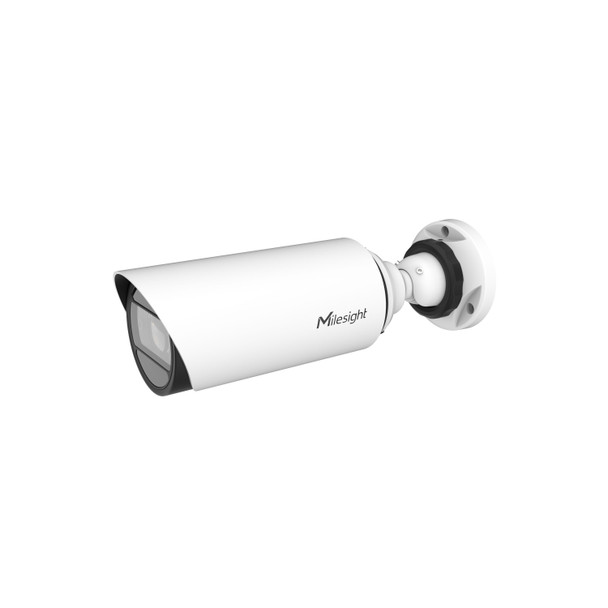

Milesight MS-C5364-FIPE 5MP AI Motorized 5x IR Bullet IP Security Camera

Milesight MS-C5364-FIPE 5MP AI Motorized IR Bullet Network Security Camera provides a perfect balance of ultra-high detail, adaptability to various scene requirements and Artificial Intelligence for superior detection. Support for high efficiency video codecs like H.265 and H.264 are of course on-board while powerful IR night vision, true WDR and a motorized lens combine to ensure optimal video performance. The units likewise include a full range of the core attributes including on-board storage, ONVIF compliance to weatherproof and vandalproof high impact design for easy adaptation to all sorts of security camera system demands and more.



Milesight MS-C5364-FIPE Main Features:

Milesight MS-C5364-FIPE Specifications:



5MP NDAA AI Motorized Bullet Network Camera

Image Sensor: 1/2.8" Progressive Scan CMOS

Min. Illumination: Color: 0.008 Lux @F1.4, B/W: 0 Lux with IR on

WDR 120dB (Super Wide Dynamic Range)

Shutter Time: 1/100000s~1s

Day/Night Modes: Day/Night/Auto/Customize/Schedule

IR Night Vision Range: Up to 50m

S/N: >55dB

Motorized Lens: 2.7~13.5mm (Default) or 3.0~10.5mm/7~22mm (Special Order) @F1.4 w/P-Iris

Field of View: HFOV 99° ~ HFOV 31°/DFOV 124° ~ DFOV 38°/VFOV 72° ~ VFOV 23°(2.7~13.5mm)

               HFOV 89° ~ HFOV 31°/DFOV 111° ~ DFOV 38°/VFOV 66° ~ VFOV 23° (3~10.5mm Special Order)

Lens Mount: Φ14

Focus Control: Auto/Manual

Iris Control: P-Iris model Auto/Manual

Video Max. Image Resolution: 2592 x 1944 (5 Megapixel)

Frame Rates Per Stream:

Main Stream:

60Hz: 30fps@ (2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)

50Hz: 25fps@ (2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)

Secondary Stream:

60Hz: 60fps@ (704x576, 640x480, 640x360, 352x288, 320x240)

50Hz: 50fps@ (704x576, 640x480, 640x360, 352x288, 320x240)

Tertiary Stream:

60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)

50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)

Video Compressions: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)

Privacy Masking: Up to 24 areas

ROI: Up to 8 areas

Image Settings: Saturation/Brightness/Contrast/Sharpness

Interface Ethernet: 1*RJ45 10M/100M Ethernet Port

Audio I/O: 1/1 (Multi-interface Version Special Order)

Alarm I/O: 1/1 (Multi-interface Version Special Order)

Network Storage NAS (Support NFS, SMB/CIFS), ANR

Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

Audio Compressions: G.711/AAC/G.722/G.726

Audio Sampling Rate: 8/16/32/44.1/48KHz

Audio Bit Rate: 16~256kbps

Two-way Audio: Support

Intelligent Analytics

Video Analysis: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed

Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically

Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle,

Support regional people counting for up to 4 detection areas

System

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB

Advanced Function: BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark

SIP/VoIP Support: Yes, Voice & Video-over-IP

Event Trigger: Motion Detection, Network Disconnection, etc.

Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.

3rd Party Security System Compatibility: ONVIF Profile G & M & S & T, API

General Working Temperature -40°~ 60°

Working Humidity: 0~90%(Non-condensing)

Power Supply: PoE(802.3af) - (Special Order Multi-Interface DC 12V ±10%)

Power Consumption: 6W MAX, 9W MAX (With IR on)

Housing Up to IP67-rated for weather-resistant performance

Vandal-proof IK10-rated metal housing

Weight: 825g

Dimensions: Φ 76mm X 239.5mm

Warranty: 3 Years (5 Year option)
