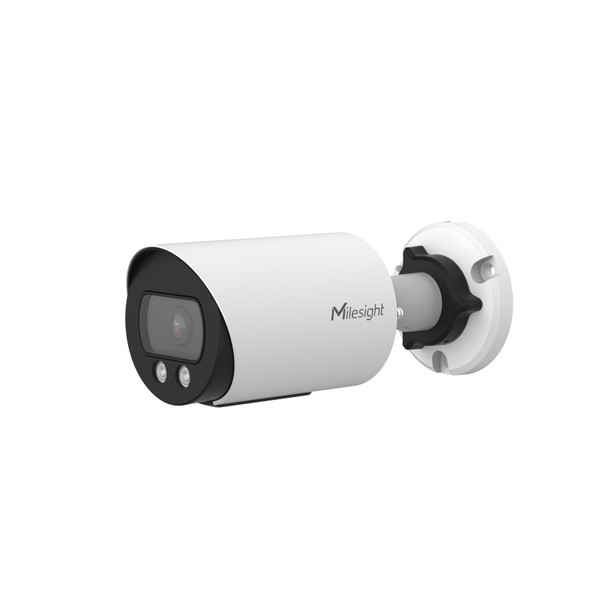

Milesight MS-C5364-UPD AI 5MP Mini Vandal 24hr Color Bullet IP Camera

Milesight MS-C5364-UPD AI 5-Megapixel Mini Vandal 24-hour Color Bullet IP Camera is an innovative option for the next generation in pro surveillance system solutions. The unit boast industry leading low light performance including a super low light 5MP sensor paired with a super low aperture lens plus a Smart white Light LED array for guaranteed color video around the clock. From image enhancements to high efficiency compression methods like H.265 the device delivers optimal video in all sorts of challenging conditions. Incorporating a range of the latest pro advantages the unit includes plug-in free browser, high-capacity edge storage to easy third-party system integration with ONVIF and other prominent network protocols.

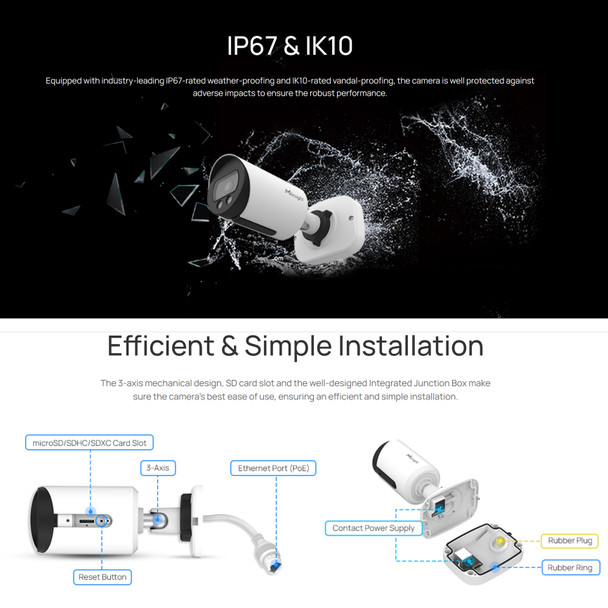

Despite a compact size, Milesight MS-C5364-UPD AI 5MP Mini Vandal Color Bullet IP Security Camera includes a heavy duty IK10 vandalproof and IP67 weatherproof design, ensuring a robust build ready for harsh outdoor environments and more. The Milesight MS-C5364-UPD-J bullet Camera model features an integrated junction box further improving protection of camera cable connection as well as adding a cleaner appearance of install. Added benefits like its A.I. (Artificial Intelligence) powered Video Analytics promise superior detections with much improved alarm trigger accuracy.

Milesight MS-C5364-UPD Main Features:

• 2592x1944 (5 Megapixel) @ 30fps Real-time
• Fixed Lens 2.8mm (4mm or 6mm special order)
• 2.8mm Field of View: HFOV 104° DFOV 129° VFOV 78°
• Color: 0.002 Lux @ F1.0 / B/W: 0 Lux White LED On
• 120dB Super WDR
• up to 30m White Light Illumination with Smart On/Off
• A.I. (Artificial Intelligence) Vehicle/Human Detection
• ONVIF for universal 3rd party camera system support
• High-capacity on-board micro-SD slot edge storage
• IP67 High Weatherproof resistan
• IK10 High Impact Vandalproof

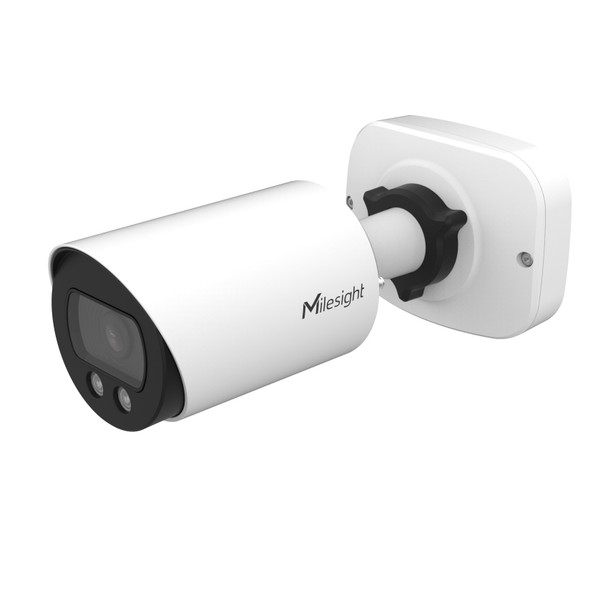

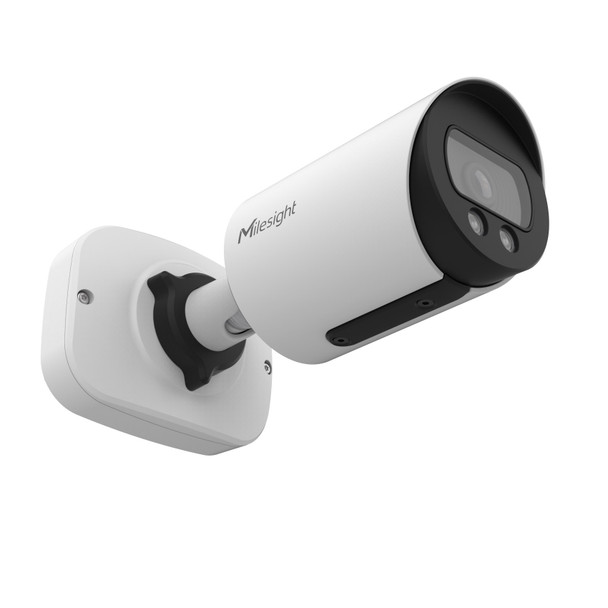

• Pre-assembled Junction Box (optional special-order MS-C5364-UPD-J)
• Adapter Plate for Junction Box versions (optional special order A64)
• PoE (Power Over Ethernet)
• NDAA Compliant

Milesight MS-C5364-UPD Main Features:

Camera
Image Sensor: 1/2.8″ Progressive Scan CMOS
Min. Illumination: Color: 0.002Lux@F1.0 0 Lux with White LED on
WDR 120dB Super WDR
Lens: 2.8mm / 4mm@F1.0
Mount: M12
Field of View:
H104°/D129°/V78°(2.8mm)
H81°/D100°/V61°(4mm)
Shutter Time: 1/100000s~1s
Illumination Distance: Up to 30m
S/N >55dB

Video
Max. Image Resolution: 2592x1944 (5 Megapixel)
Primary Stream
60Hz: 30fps@ (2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@ (2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream
60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288)
Tertiary Stream
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Setting: Brightness/Contrast/Saturation/Sharpness

Interface
Ethernet: 1*RJ45 10M/100M Ethernet Port

Network
Network Storage NAS (Support NFS, SMB/CIFS), ANR
Protocol: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Intelligent Analytics
Video Analysis: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,
Line Crossing, Loitering, Object Left, Object Removed
People Counting &Report Count the number of people entering or exiting

System
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API

General
Working Temperature -40°C~60°C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE (802.3af)
Power Consumption 3W MAX
5W MAX (With White LED on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Weight 610g (Junction Box Version) / 450g (Cable Out Version)
Dimensions 97mmX74mmX180mm (Junction Box Version) / 64mmX64mmX160mm (Cable Out Version)
Warranty 3/5 Years
