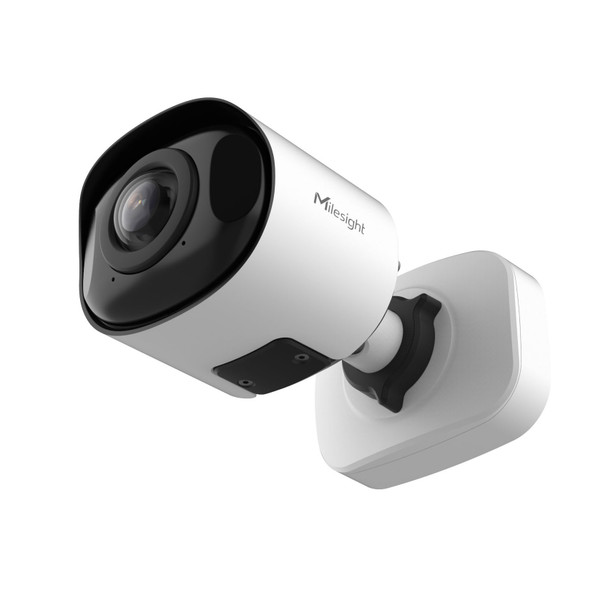

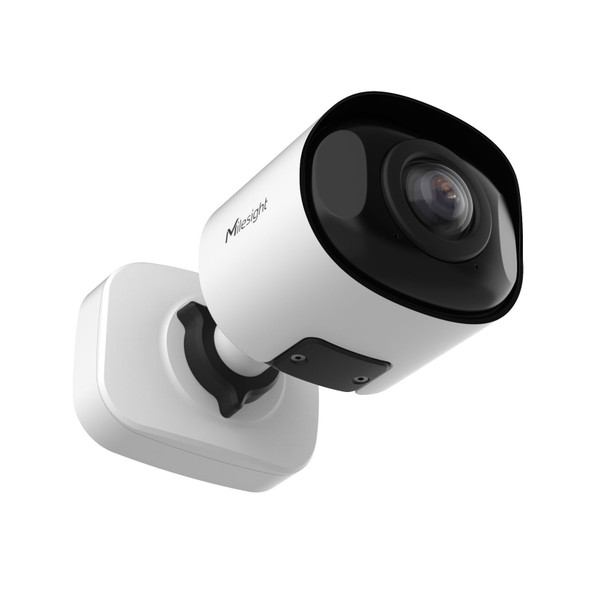

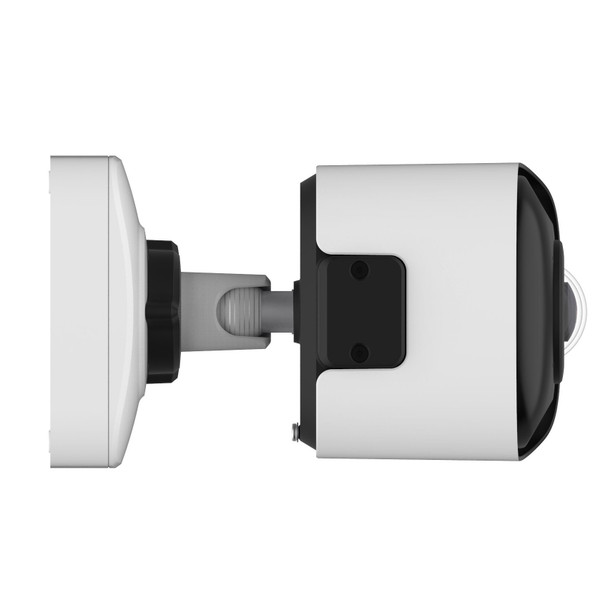

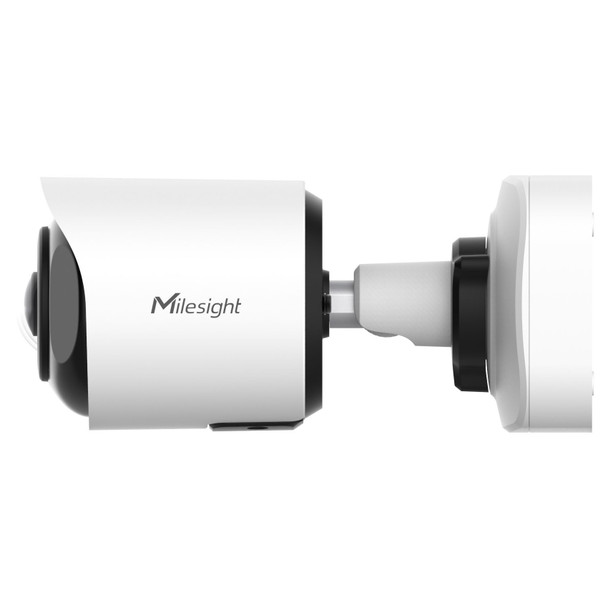

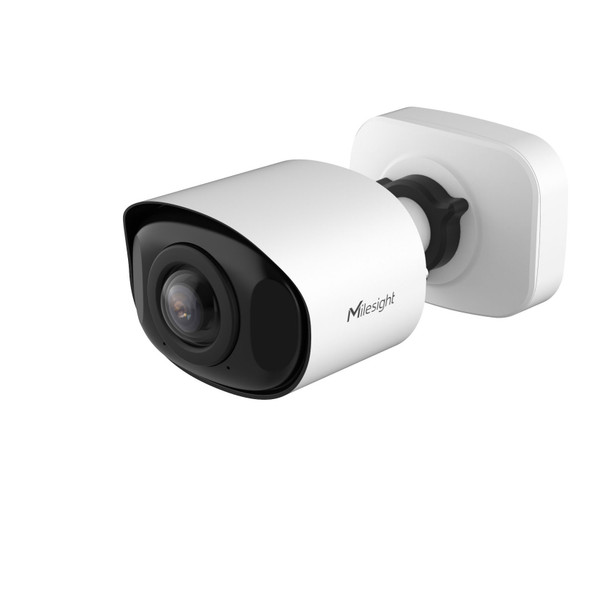

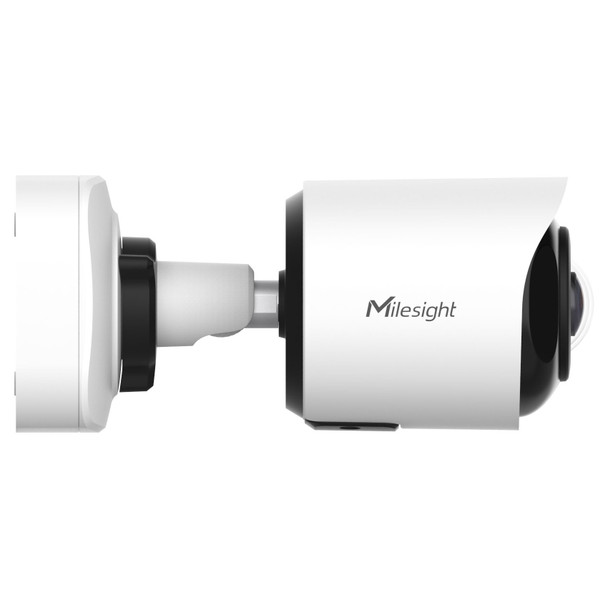

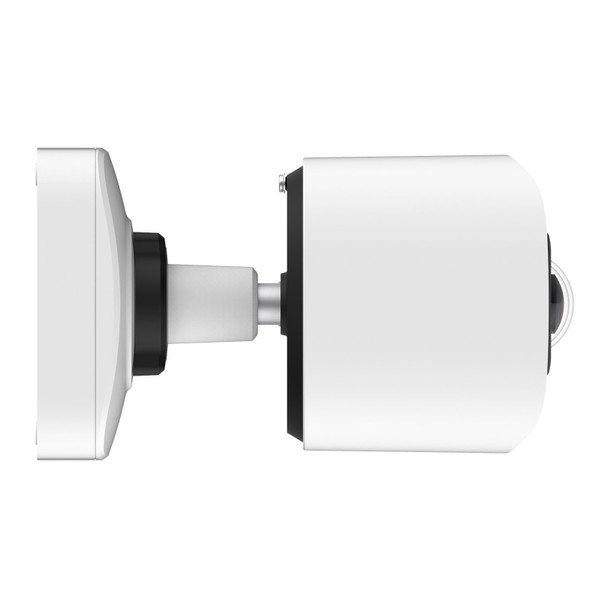

Milesight MS-C5365-PE 5MP A.I. 180° Panoramic Mini IR Bullet IP Security Camera

Milesight MS-C5365-PE 5MP NDAA AI 180° Panoramic Mini IR Bullet IP Security Camera is a specialized camera solution for maximum area coverage from a single point and sensor. These devices provide superb balance of high detail and excellent low light performance while adding core image enhancements like WDR and IR Night Vision. The device is likewise built with all the internal and external qualities you should desire for modern network surveillance systems. The unit boast the latest A.I. enhanced detection methods for superior event trigger accuracy and feature the granular details in numerous regards like built-in microphone for complete scene awareness. There is also open-platform support with aspects like multi-web browser plug-in free operation to ONVIF compliance for 3rd party system integration plus more. The Milesight MS-C5365-PE Panoramic IR Bullet IP Camera also features a compact yet rugged design including both weatherproof and vandalproof ratings making it ready for even harsh outdoor environments. From easy p2p connectivity to high-capacity edge-storage or it's single cable PoE install, this Panoramic Bullet camera delivers smart pro-security!

Milesight MS-C5365-PE Main Features:

• 1/2.8" 5MP 2592x1944 @ 30fps Real-time
• Panoramic Fixed lens: 1.68mm @ F2.0 for HFOV 180° / VFOV 95°
• Panoramic IR Night Vision 15m
• Color: 0.008 Lux @F2.0 / B/W: 0 Lux IR ON
• Super WDR 120dB
• A.I. (Artificial Intelligence) Vehicle/Human Detection
• 3-Axis Camera Orientation
• ONVIF for 3rd Party Security Systems
• Micro SD Card Support
• Built-in Microphone
• White Housing
• Weatherproof up to IP67 rating
• Vandalproof High Impact IK10 rating

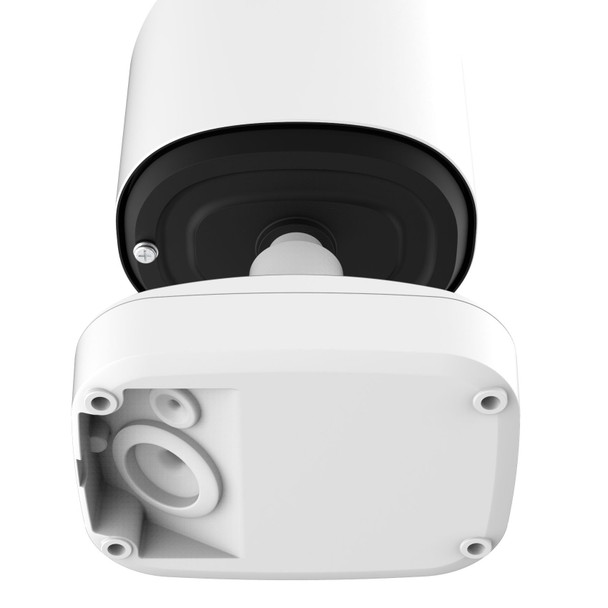

• Integrated Junction Box
• PoE OR 12VDC Power Support

Milesight MS-C5365-PE Specifications:

5MP NDAA AI 180° Panoramic Mini Bullet Network Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination: Color: 0.005 Lux @F1.2, Color: 0.008 Lux @F2.0, B/W: 0 Lux with IR on
WDR 120dB Super Wide Dynamic Range

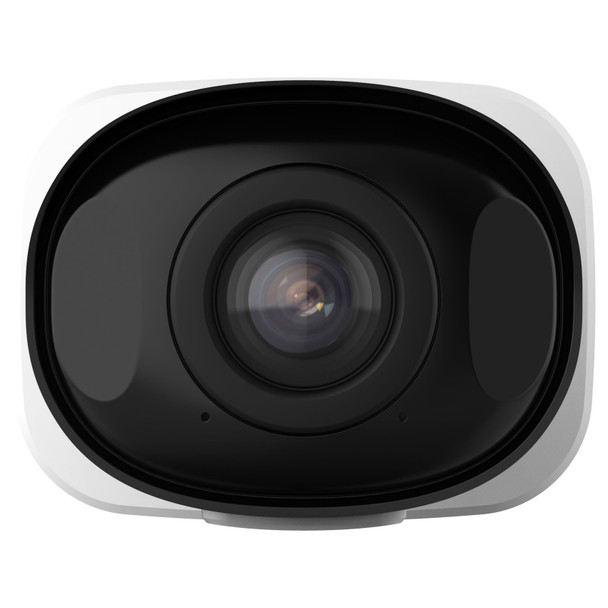

Fixed Lens: 1.68mm @F2.0
Lens Mount: M12

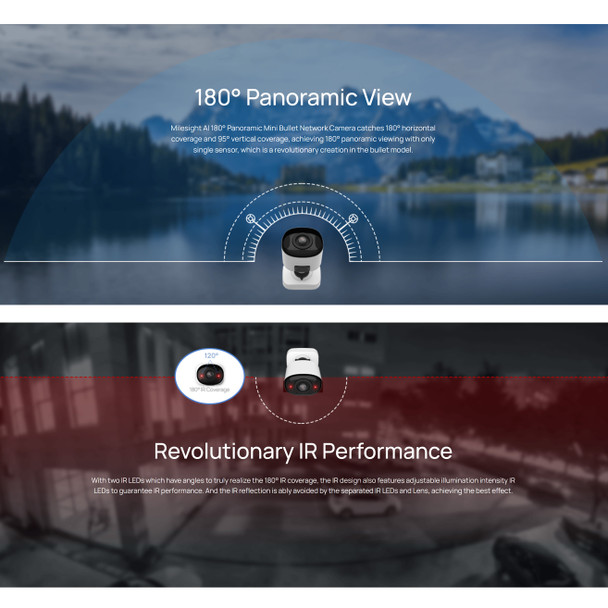

Field of View: HFOV 180°/ VFOV 95°
Shutter Time: 1/100000s~1s
Day/Night Modes: Day/Night/Auto/Customize/Schedule
IR Night Vision 180° with IR Illumination Up to 15m
S/N >55dB
Video Max. Image Resolution: 2592x1944(Original)
Primary Stream:
60Hz: 30fps@(2592x1944) (Original), 30fps@ (2560x1440, 1920x1080, 1280x720)
50Hz: 25fps@(2592x1944) (Original), 25fps@ (2560x1440, 1920x1080, 1280x720)
Secondary Stream:
60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream:
60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360,352x288, 320x240)
50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360,352x288, 320x240)
Video Compression: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking: Up to 24 areas
ROI: Up to 8 areas
Image Settings: Saturation/Brightness/Contrast/Sharpness
Web Browser Access Support: IE/Firefox/Chrome/Safari Browser
Interface Ethernet: 1*RJ45 10M/100M Ethernet Port
Audio Interface: Built-in Microphone
Network Storage: NAS (Support NFS, SMB/CIFS), ANR
Network Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression: G.711/AAC/G.722/G.726
Audio Sampling Rate: 8/16/32/44.1/48KHz
Audio Bit Rate: 16~256kbps
Two-way Audio: N/A
Intelligent Analytics / Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report: Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
On-board Storage Support: microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function: Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support: Yes, Voice & Video-over-IP
Event Trigger: Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action: FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility: ONVIF Profile G & M & S & T, API
General Working Temperature: -40° ~ 60° C
Working Humidity: 0~90%(Non-condensing)
Power Supply: PoE(802.3af)/DC 12V±10%
Power Consumption: 5W MAX, 8W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated metal housing
Dimensions: 95.8mm X 74mm X 158.5mm
Weight: 630g
Warranty: 3 Years (5 Year option)
